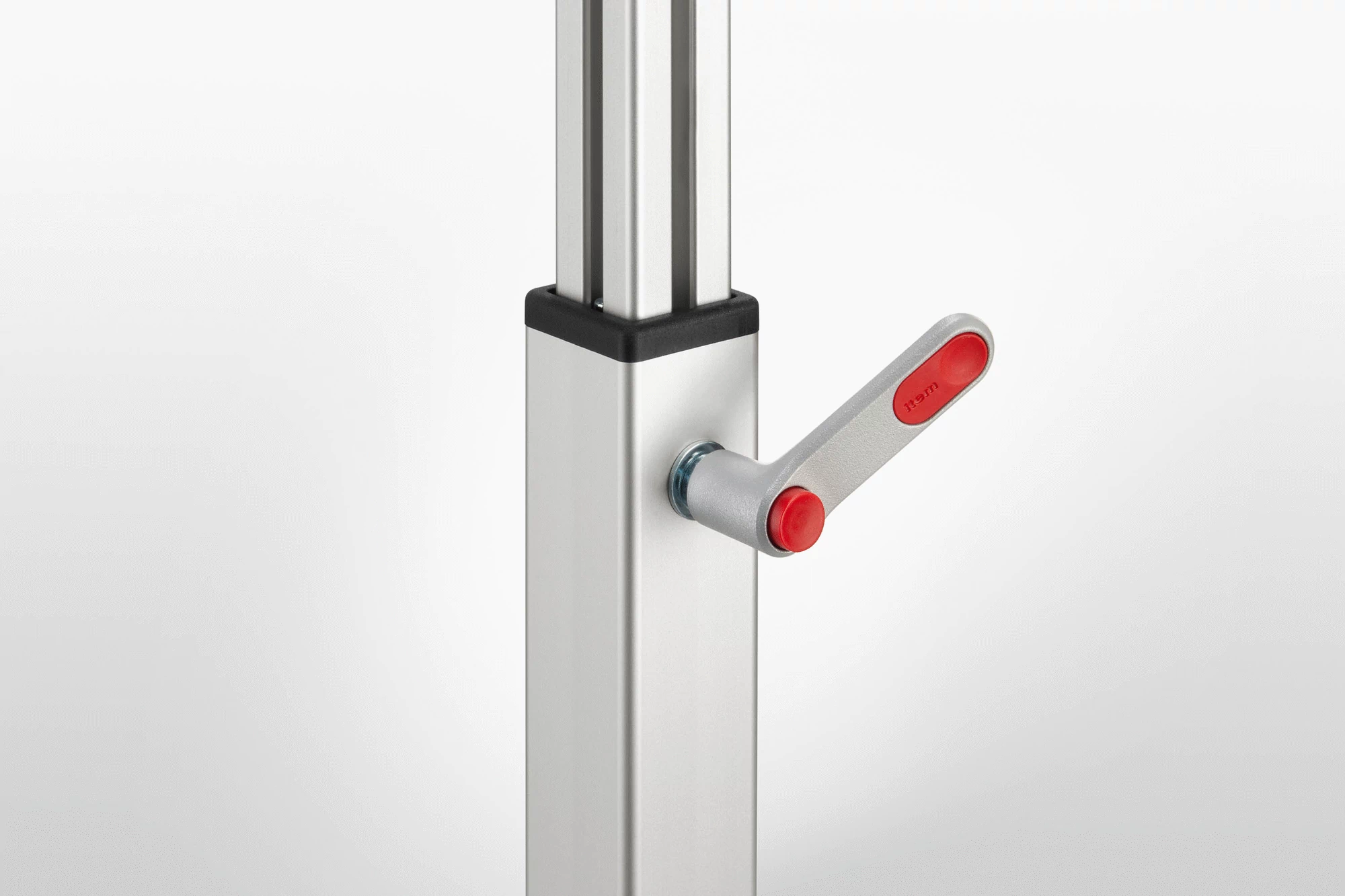

Telescope Securing Set 8 40×40
1 T-Slot Nut 6 St M6, bright zinc-plated 1 Washer DIN 6340-6,4, St, bright zinc-plated 1 Clamp Lever Pi 60 M6x16
Scope of Delivery
1 T-Slot Nut 6 St M6, bright zinc-plated 1 Washer DIN 6340-6,4, St, bright zinc-plated 1 Clamp Lever Pi 60 M6x16
Properties
| line 6 | line 6 |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 86 g |
| Delivery unit | 1 set |
Outer profile for constructing telescope profiles of variable length for adjusting the height or inclination of fixtures and equipment. A profile 6 30x30 must be used for the inner profile. The outer profile can be connected directly to a profile groove via its end face or using fastening elements (Hinges, heavy duty, etc.). Line 6 components are suitable for connecting the inside profile. The inner profile, which is guided by a sliding bearing in the telescope, is secured with the Telescope Securing Set.
Profile 6 30x30 must be 14 mm shorter than Telescope Profile 8 40x40 in order that it can be inserted completely in the assembled telescope, and the stroke thereby maximised. Max. load in telescope direction: 500 N
