| T-Slot Nut 8 Zn M3, bright zinc-plated | CADPDFRFQ |
Preview
T-Slot Nut 8 Zn M3, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Thread | M3 |
| Weight | m = 5 g |
| Force max | Fmax. = 250 N |
| Delivery unit | 1 pce. |
| Material | Die-cast zinc |
| Torque | M = 1 Nm |
Fastening elements for securing components to the profile groove with particular ease. When locked in the groove, this produces a fixed thread. The T-Slot Nuts Zn are not suitable for connecting profiles to other profiles.

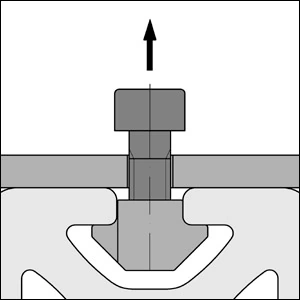

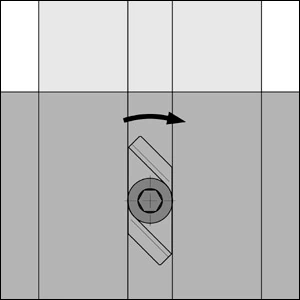

T-Slot Nuts Zn can, if required, be prefitted (with the screw) to the component to be secured and are inserted at any position in the profile groove. Tightening the screw automatically locks the T-Slot Nut in the groove. Pulling the screw fixes T-Slot Nuts 6 Zn and 8 Zn in the groove by means of the conical flanks.
T-Slot Nuts Zn can, if required, be prefitted (with the screw) to the component to be secured and are inserted at any position in the profile groove. Tightening the screw automatically locks the T-Slot Nut in the groove. Pulling the screw fixes T-Slot Nuts 6 Zn and 8 Zn in the groove by means of the conical flanks.
The decision which T-Slot Nut to use depends on the loads occurring during operation.
