Step Profile Bracket Set 8 240
2 step profile flat brackets 240, St, powder-coated RAL 9006 white aluminium 4 T-Slot Nuts 8 St M8, St, bright zinc-plated 6 Countersunk Screws DIN 7991-M8x20, St, bright zinc-plated 4 washers ISO 7089 – 8 – 200 HV, bright zinc-plated 4 hexagon screws ISO 4017-M8x18, St, bright zinc-plated
Scope of Delivery
2 step profile flat brackets 240, St, powder-coated RAL 9006 white aluminium 4 T-Slot Nuts 8 St M8, St, bright zinc-plated 6 Countersunk Screws DIN 7991-M8x20, St, bright zinc-plated 4 washers ISO 7089 - 8 - 200 HV, bright zinc-plated 4 hexagon screws ISO 4017-M8x18, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 782 g |
| Delivery unit | 1 set |
| Torque | M = 25 Nm |

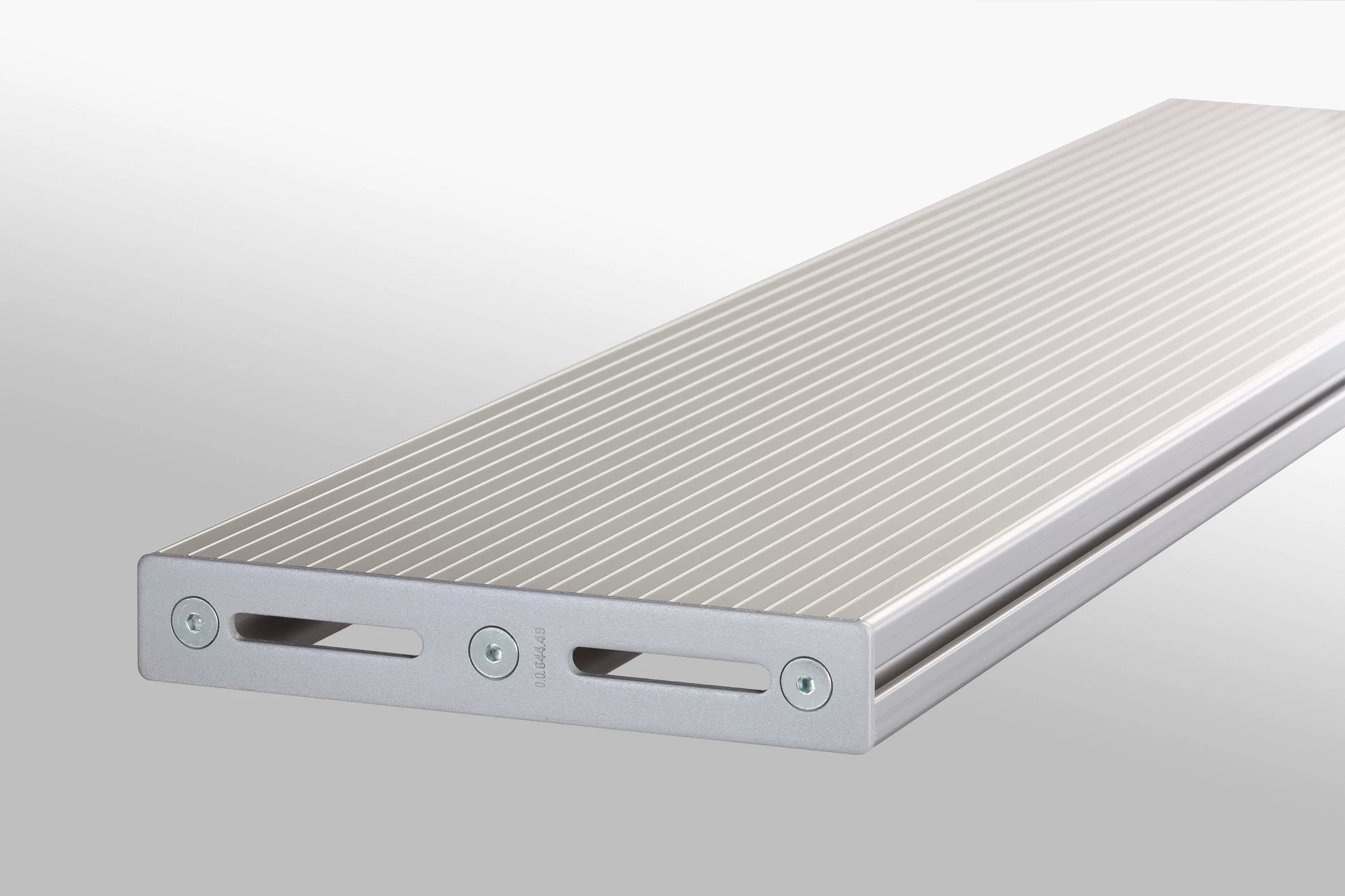

Step Profile Bracket Set 8 240 This Bracket Set is used to fasten Step Profile 8 240 to stringers. The two 5 mm-wide brackets must be factored into the overall width measurement for steps. All the necessary fastening elements are included in the scope of supply. The outward-facing screws fit flush with the profile. Profile 8 120x40 light is recommended for use as a stringer profile.
