| Standard-Fastening Set KH 8, one-sided, bright zinc-plated | CADPDFRFQ |
Preview

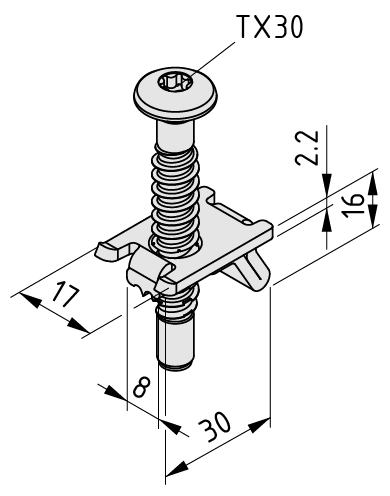

Standard-Fastening Set KH 8, one-sided, bright zinc-plated

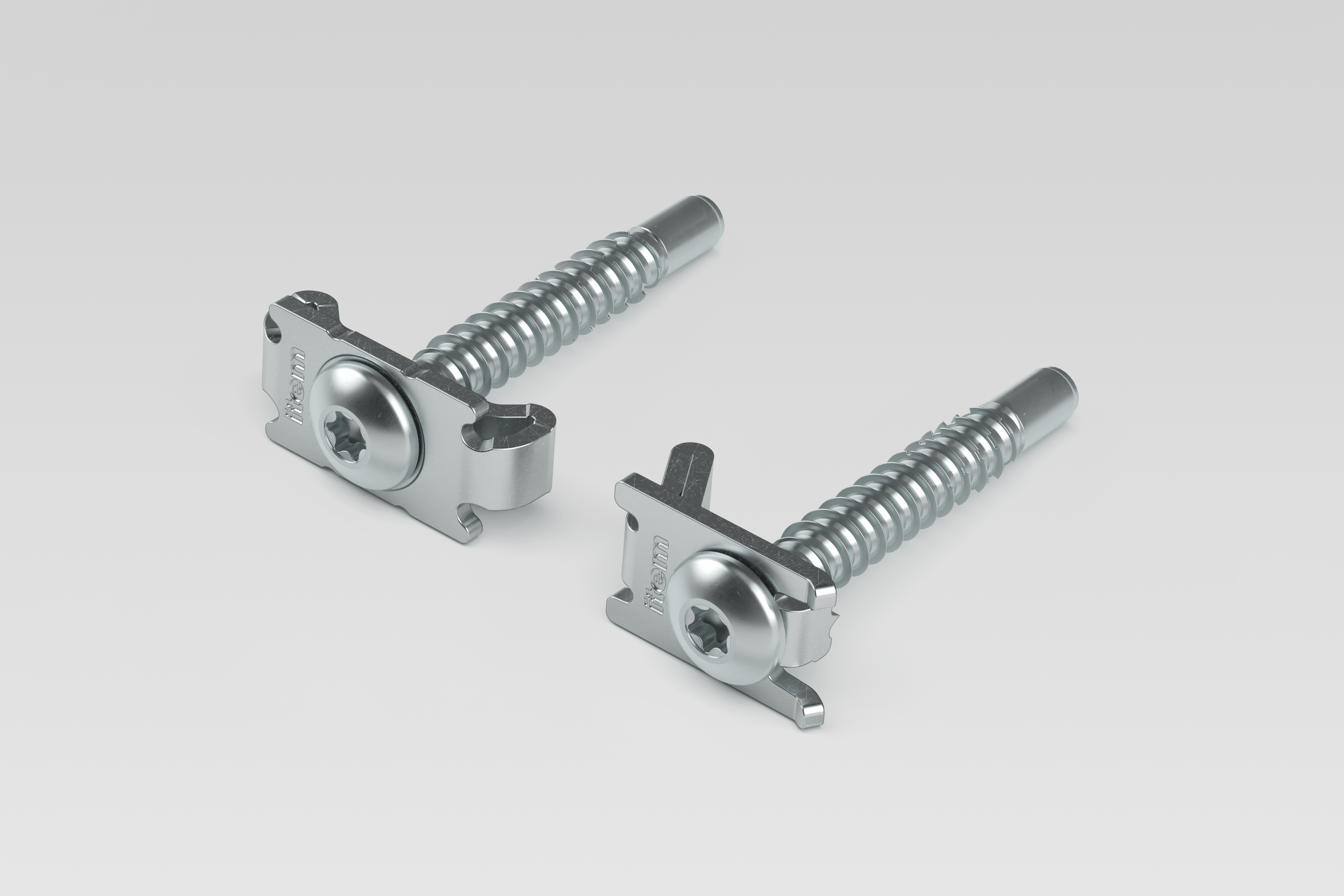

1 Standard connecting plate 8, one-sided, St, bright zinc-plated 1 Button-Head Screw KH 8×55, TX30, St, bright zinc-plated
Scope of Delivery

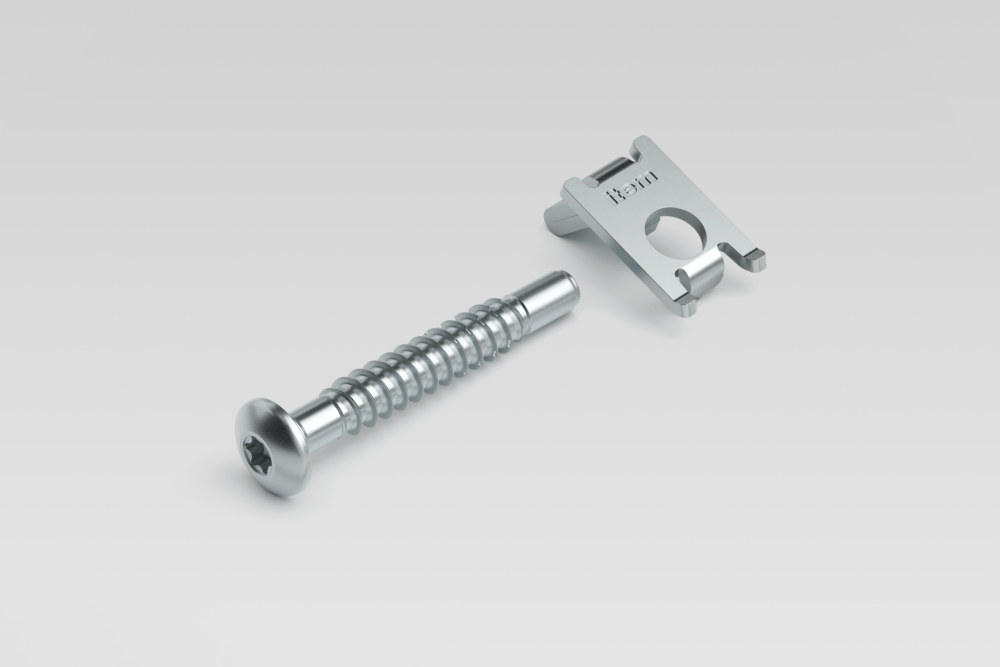

1 Standard connecting plate 8, one-sided, St, bright zinc-plated 1 Button-Head Screw KH 8x55, TX30, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | No |
| Weight | m = 26 g |
| Delivery unit | 1 set |
| Tightening torque, bright zinc-plated | Mbz-p = 10 Nm |
| cleanroom suitability | No |
| Presentation | 2026-03-24T00:00:00 |

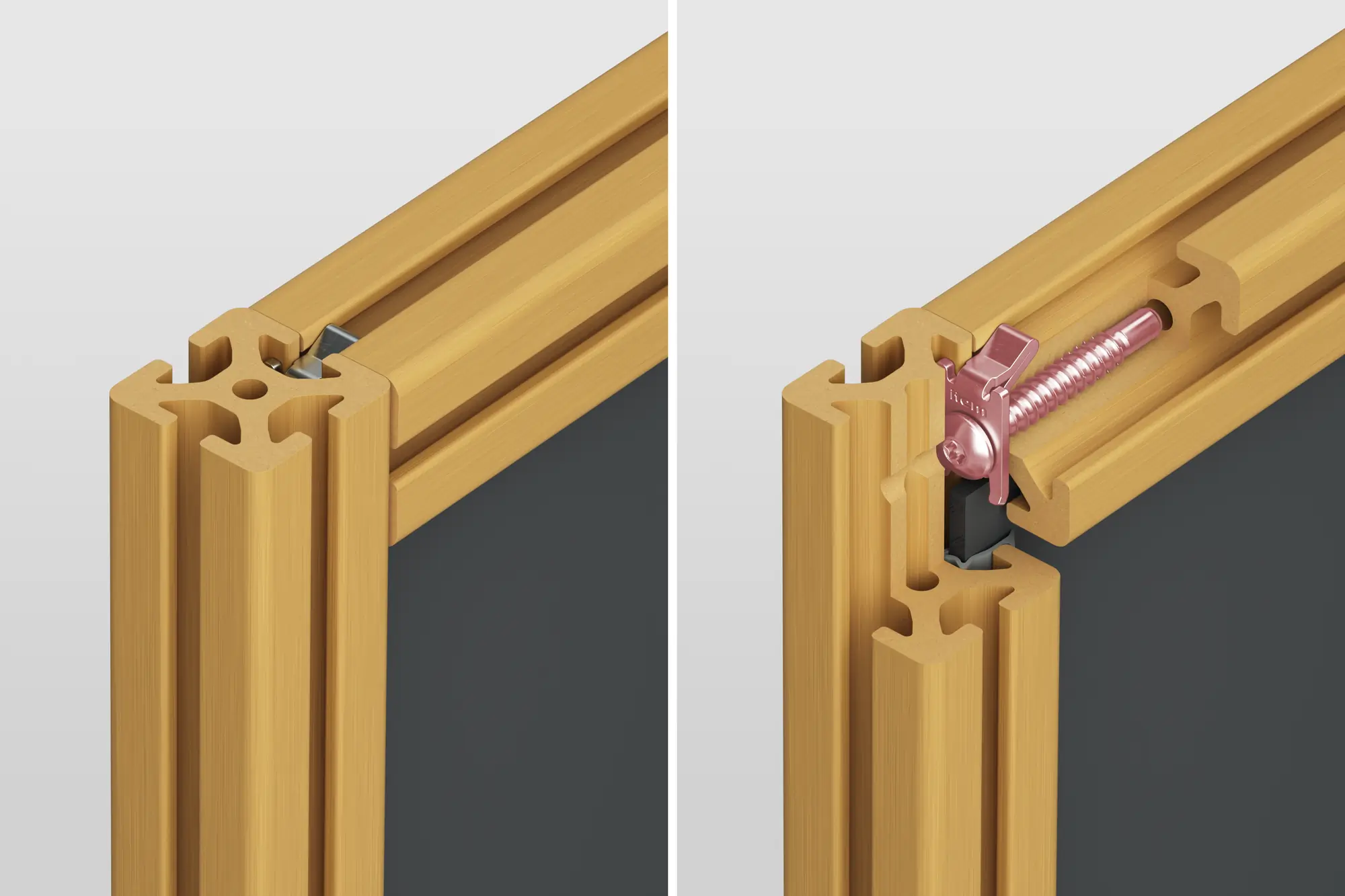

Standard-Fastening Set KH 8, one-sided from item joins two Line WFC 8 or two Line KH 8 profiles at a right angle. The asymmetrical connecting plate is made of bright zinc-plated steel and projects into a groove to ensure the fastener is correctly aligned so as to prevent torsion. The other groove is left free. A self-tapping screw needs to be driven into the core bore of the first profile to install the fastener. The second profile requires an installation bore and is connected in a fixed position.
Thanks to the asymmetrical anti-torsion feature on Standard-Fastening Set KH 8, one-sided, one groove is left free. This means profile frames can be built with one groove that is completely free to accommodate panel elements.

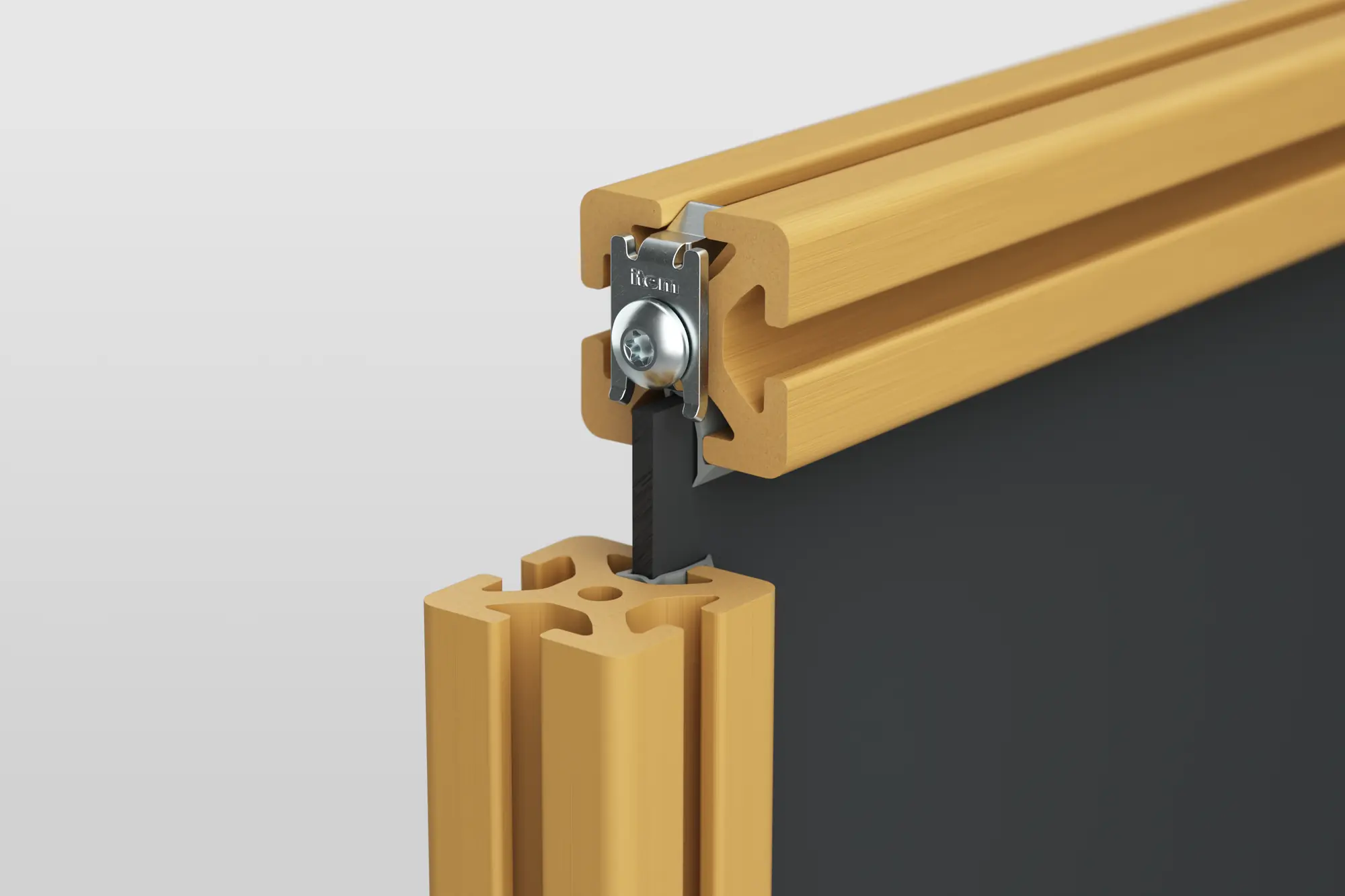

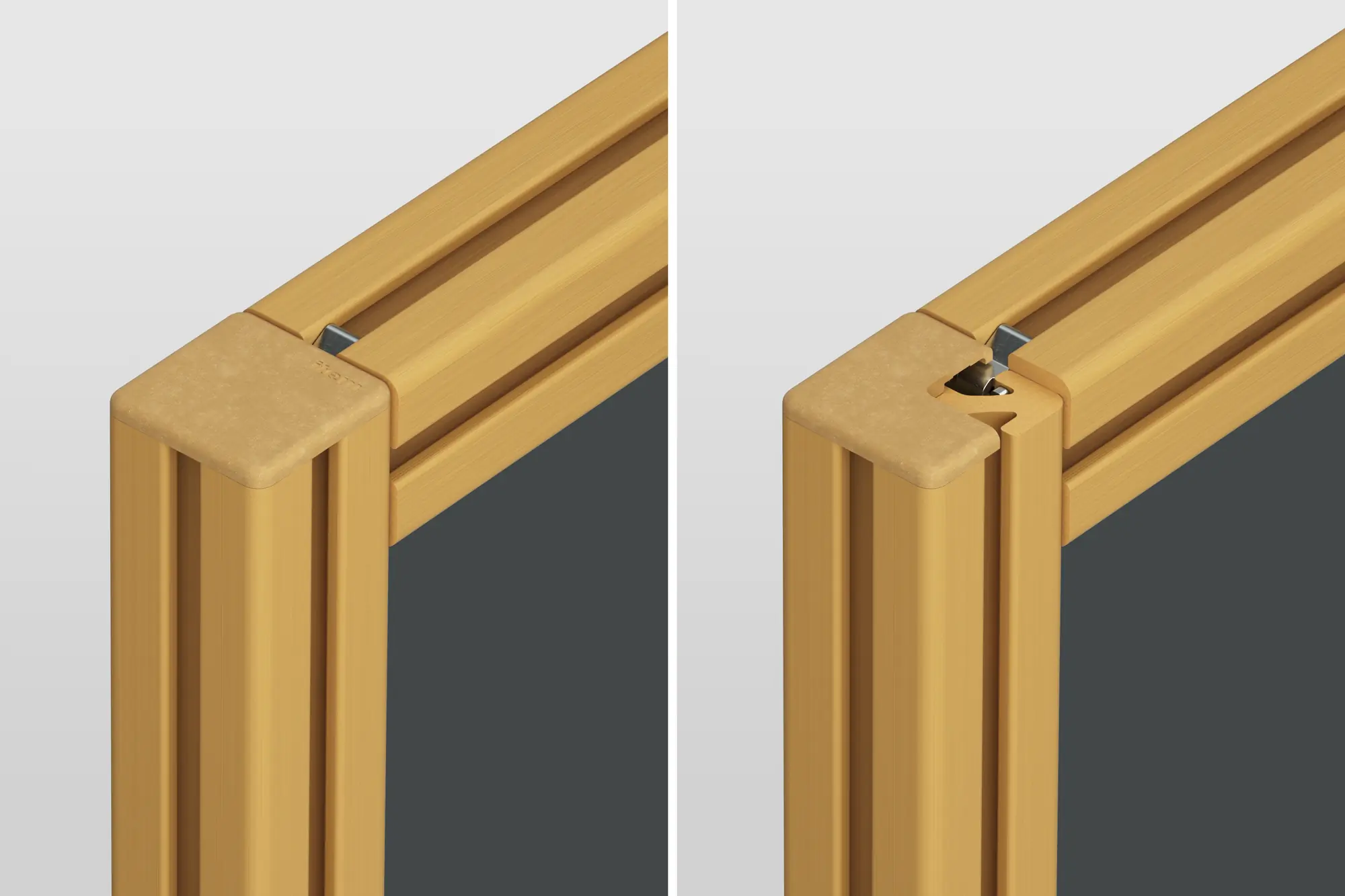

The modified connecting plate also allows for profiles to be offset so they can be connected in such a way that they have a flush fit when finished with caps.
Standard-Fastening Set KH 8 features a double-sided anti-torsion feature as standard, but is also available in variants that have a connecting plate that is shortened on one side for installing panels.
