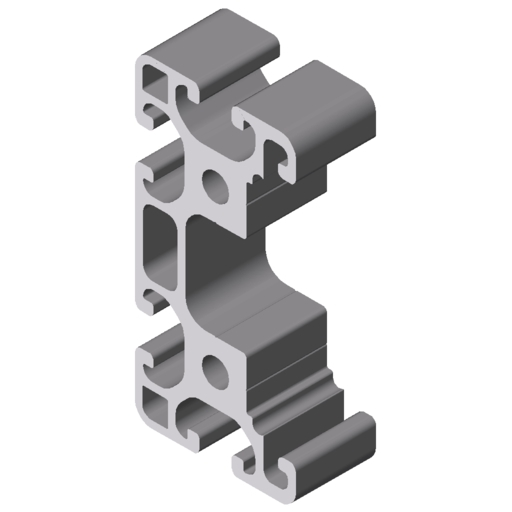

Stand Profile 8 80×40 K60, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 10.2 cm2 |
| Moment of Inertia, torsional | It = 2.58 cm4 |
| Moment of Inertia, x-axis | Ix = 69.02 cm4 |
| Moment of Inertia, y-axis | Iy = 11.74 cm4 |
| Weight | m = 2.75 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Colour | natural |

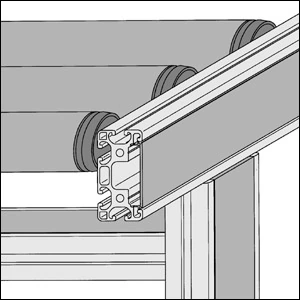

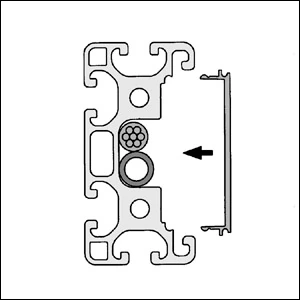

Stand Profiles with integrated conduits can be used for lightweight applications such as the frame construction for a roller conveyor or transfer system. These conduits can be used to accommodate cables for motors and sensors. A special Lid Profile is used to seal the conduit.
Stand Profiles 8 80x40 are used in conjunction with Cover Profile 60 and Stand Profile Connection Element 8 for constructing transport sections, e.g. roller conveyors with integrated conduits.

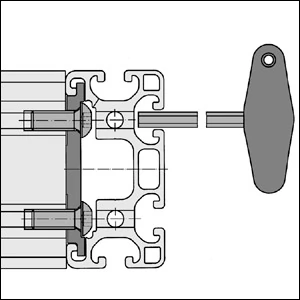

Standard fastening is effected on the end face in conjunction with Stand Profile Connection Element 8 and Button-Head Screws ISO 7380-M8x20 (M = 25 Nm).

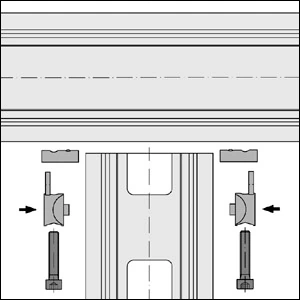

Fastening on the groove side is by means of a Pneumatic Universal-Fastening Set 8 or Automatic-Fastening Set 8.
By providing Stand Profile 8 80x40 with a ⌀ 14 mm bore, the profile can be used for routing cables and hoses.
