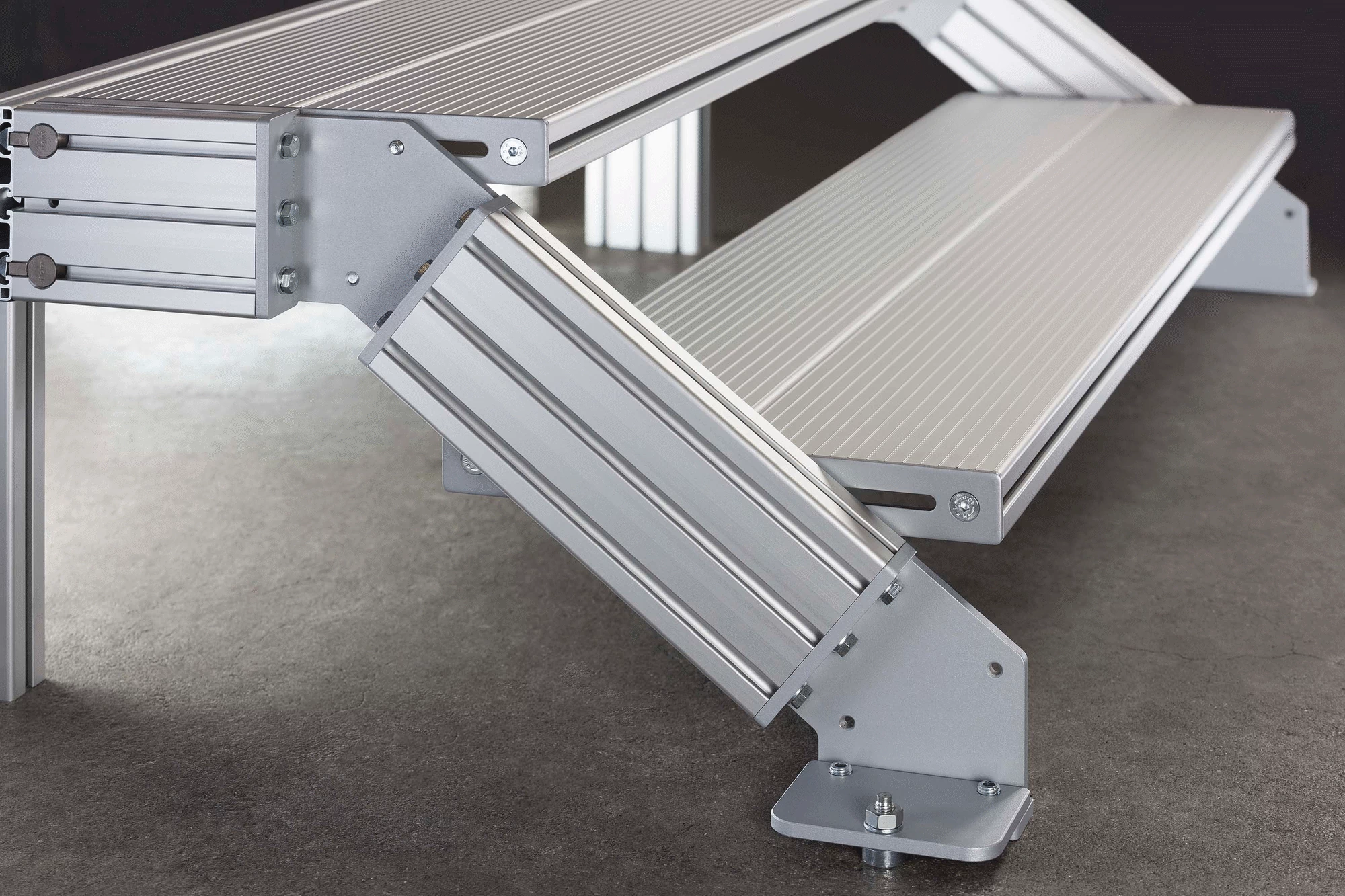

Stairway Assembly Set GP 38°
2 step angle brackets 38°, St, powder-coated RAL 9006 white aluminium 2 step angle brackets 52°, St, powder-coated RAL 9006 white aluminium 2 Profiles 120×40 light 160 mm, Al, anodized 2 Angle Brackets 8 40x40x40, St, bright zinc-plated 2 floor fastening plates, St, powder-coated RAL 9006 white aluminium 2 Floor-Fastening Sets M10x125, St, bright zinc-plated 6 Universal-Fastening Sets 8, St 18 hexagon screws ISO 4017-M8x25, St, bright zinc-plated 18 washers ISO 7089 – 8 – 200 HV, bright zinc-plated
Scope of Delivery
2 step angle brackets 38°, St, powder-coated RAL 9006 white aluminium 2 step angle brackets 52°, St, powder-coated RAL 9006 white aluminium 2 Profiles 120x40 light 160 mm, Al, anodized 2 Angle Brackets 8 40x40x40, St, bright zinc-plated 2 floor fastening plates, St, powder-coated RAL 9006 white aluminium 2 Floor-Fastening Sets M10x125, St, bright zinc-plated 6 Universal-Fastening Sets 8, St 18 hexagon screws ISO 4017-M8x25, St, bright zinc-plated 18 washers ISO 7089 - 8 - 200 HV, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 8.7 kg |
| Delivery unit | 1 set |
Stairway Assembly Set GP 38° Stairway Assembly Set GP 38° contains all the fastening elements needed to secure a stairway with a 38-degree pitch to the ground and to the next level up. Profile 8 120x40 light is recommended for use as a stringer profile between the step angle brackets. This Assembly Set is not suitable for building a stairway that connects a stairway landing to a platform or similar element. Stairway Assembly Set PP 38° should be used for this purpose.
