Stacking Guide 8 St 80×80-30°

Setting down made easy! The item Stacking Guide 8 St 80x80-30° makes light work of stacking boxes, pallets and trolleys. The robust centring aid ensures that objects and factory equipment slot into the desired position when set down, and stay there. Two Stacking Guides are fitted to each corner. Stacking Guide 8 St 80x80-30° complements the longer Stacking Guide 8 St 120x80-30° (0.0.683.96). Both models can also be used together. Since europallets use rectangular timbers at their bases, for instance, the Stacking Guides should be a different length at the corners. This provides the ideal hold while ensuring pallet trucks have unrestricted access. item Stacking Guides are bent to a 30° angle and even out positioning errors as objects are set down. They only marginally increase the width of the frame and ensure loads are distributed over several points on the frame.

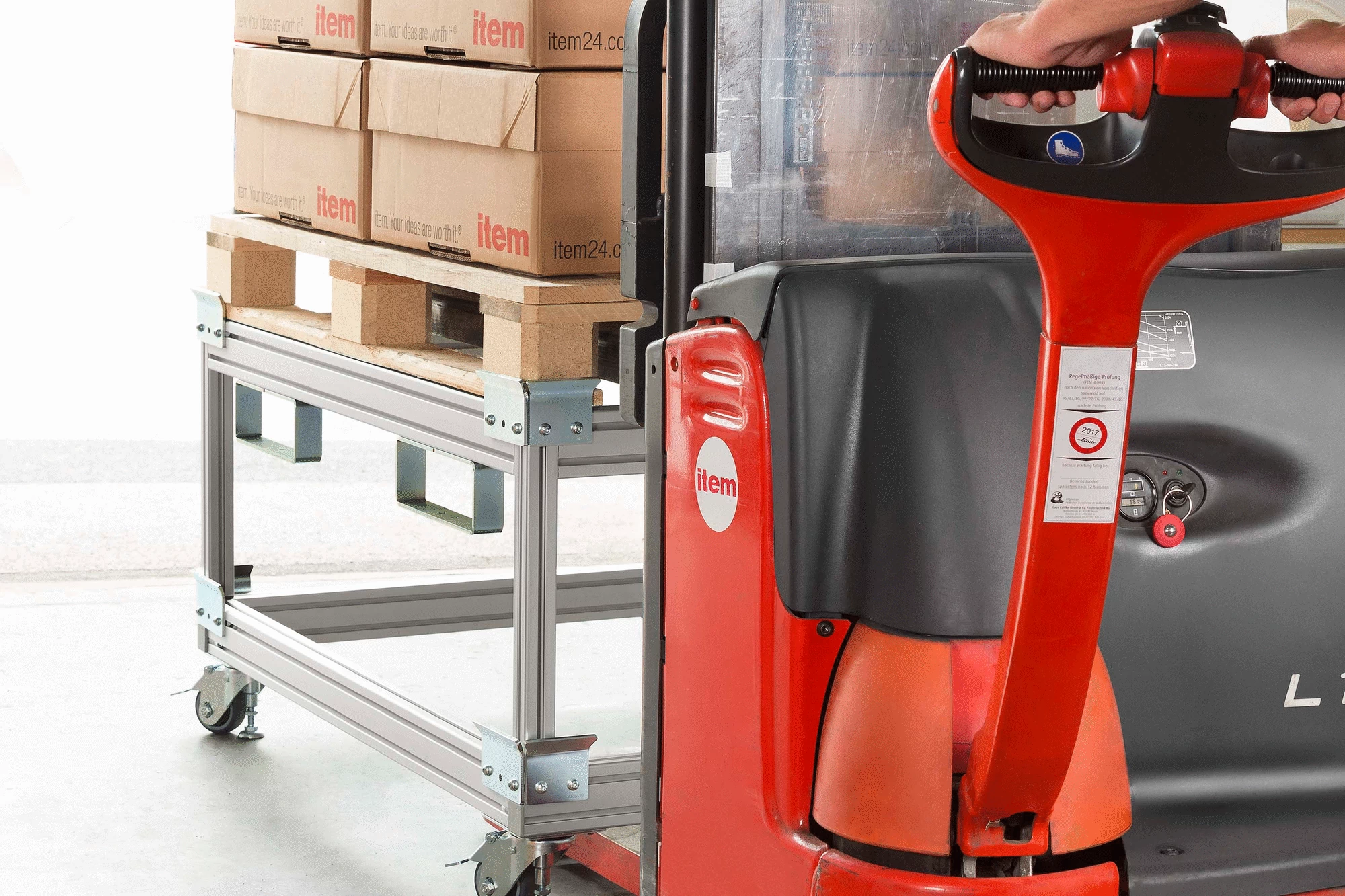

When using item Stacking Guides on transport trolleys and similar, the frame structure should be designed so that fixings are subject to tensile loads when in motion. Stacking Guides are fastened to Profiles 8 40x40 via the two outer bores. In the arrangement shown here, an M8 thread is cut into the core bore on the right. Standard, Universal and Automatic Fasteners can be used. When using with europallets, the corners of the frame should be fitted with Stacking Guide 8 St 80x80-30° (0.0.686.93) while the longer Stacking Guide 8 St 120x80-30° (0.0.683.96) should be fitted to the longer side.
