| Sound-Insulating Material 20mm, anthracite | CADPDFRFQ |
Preview
Sound-Insulating Material 20mm, anthracite
PUR-ester special foam Coated with PVC film perforated, easy to wash down, Sound absorption as per DIN 52215-63 Temperature resistance: -40°C to +100°C Thermal conductivity: 0.033 W/mK, DIN 52612 Fire characteristics: self-extinguishing to FMVSS 302, DIN 75200 Panel dimensions 480×480 mm
Scope of Delivery
PUR-ester special foam Coated with PVC film perforated, easy to wash down, Sound absorption as per DIN 52215-63 Temperature resistance: -40°C to +100°C Thermal conductivity: 0.033 W/mK, DIN 52612 Fire characteristics: self-extinguishing to FMVSS 302, DIN 75200 Panel dimensions 480x480 mm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 253 g |
| Delivery unit | 1 pce. |
| Colour | anthracite |
Sound-Insulating Material can be used to lessen the effect of noise emissions on the environment and is suitable for both complete enclosures and individual partitions. The Sound-Insulating Material is a compound material made from 20 mm thick special sound-absorbent foam complying with DIN 52215 T63. It has a PVC film on its visible side which is perforated and washable. The Sound-Insulating Material has a self-adhesive backing, making it particularly easy to use. The surface of the substrate onto which the Sound-Insulating Material is bonded must be clean, dry and free of grease, oil, solvents and separating agents. The effectiveness of the sound insulation depends on the excitation frequency.

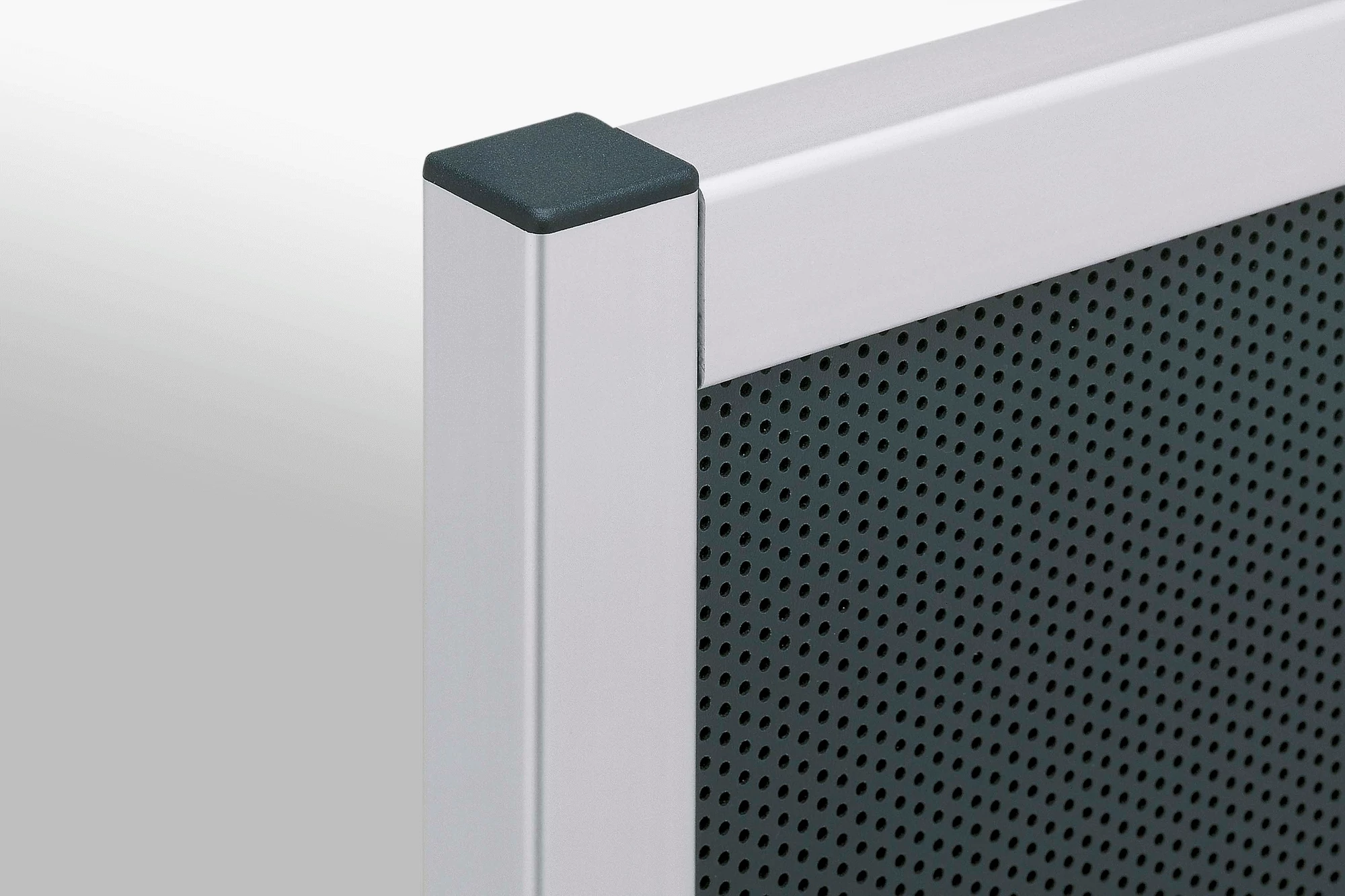

The Sound-Insulating Material is glued to a panel element. The panel element should be fastened in the profile frame in such a way that as little vibration or sound is transmitted as possible.
The sound-insulating effect depends on the excitation frequency.
