Sliding Door 8 32×18, Fixing Plate
1 fixing plate, St, bright zinc-plated 1 locating lug, die-cast zinc 1 T-Slot Nut V 8 St M8, bright zinc-plated 1 dome-head screw M8x14, St, bright zinc-plated
Scope of Delivery
1 fixing plate, St, bright zinc-plated 1 locating lug, die-cast zinc 1 T-Slot Nut V 8 St M8, bright zinc-plated 1 dome-head screw M8x14, St, bright zinc-plated
Properties
| Torque | M = 8 Nm |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 43.3 g |
| Delivery unit | 1 set |
Slender Clamp Profiles 8 32x18 create space-saving sliding doors. Four door segments that close in the middle make it easier to gain access through the centre of the opening. Half the overall width of the frame is opened up. Sliding-Door Guide Profile 8 40x10 (0.0.495.13) allows you to move two door segments in parallel along one Line 8 groove. Roller for Corner-Fastening Set 8 32x18 (0.0.494.74) keeps everything running smoothly.

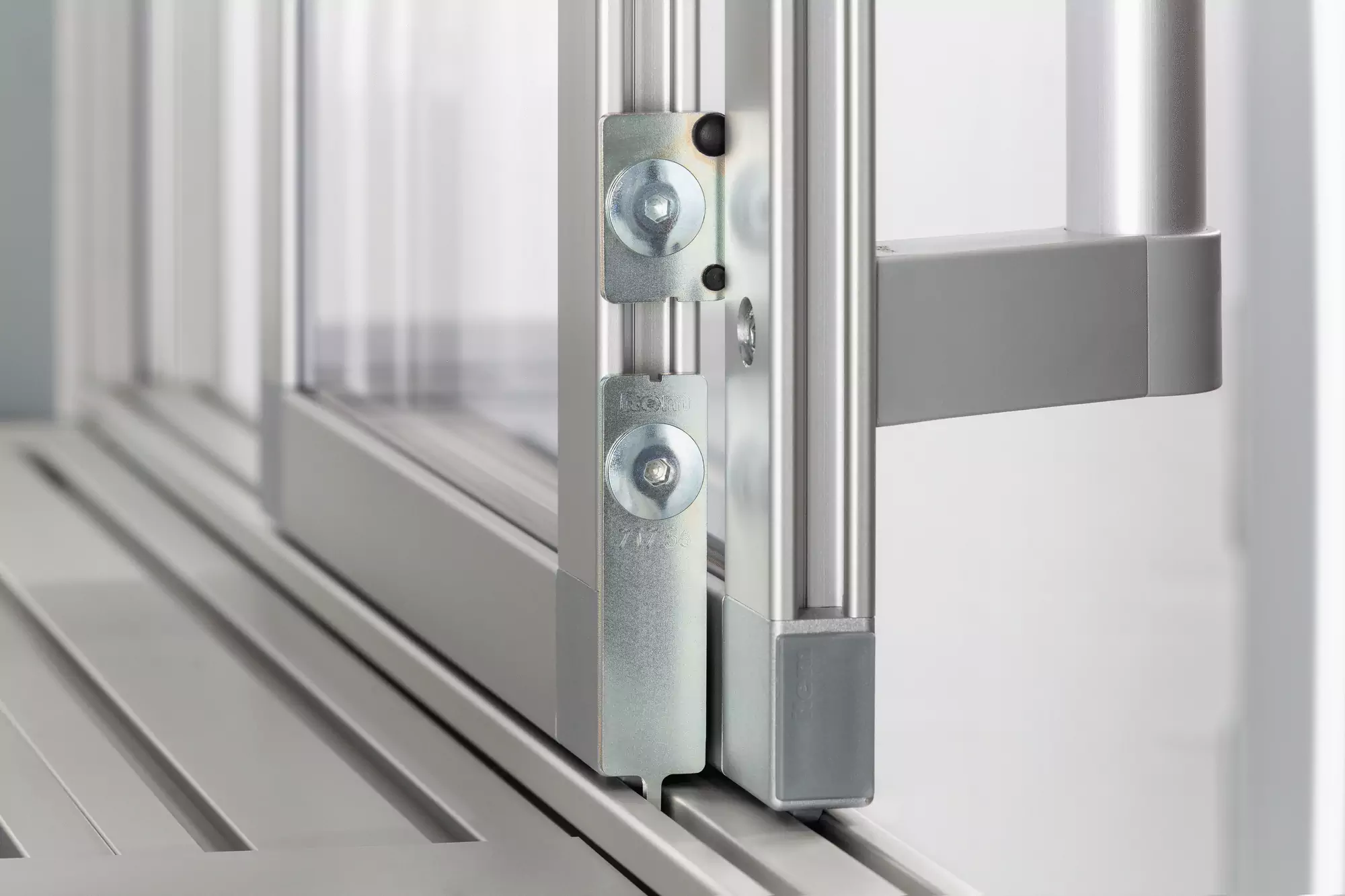

Sliding Door 8 32x18, Fixing Plate is used to hold the door segments of a sliding door made using Clamp Profiles 8 32x18 in one place. The device prevents the inadvertent movement of door segments.
When combined with Clamp Lever Pi 60 M8x16 (0.0.684.70), the sliding-door fixing plate can be tightened and then loosened again in next to no time. A DIN 125-8.4 mm washer should also be used.
Sliding-Door Guide Profile 8 40x10 (0.0.495.13) needs to be machined in order to install Sliding Door 8 32x18, Fixing Plate.
