| Shelf Cap Set 8 200 with Raised Edge | CADPDFRFQ |
Preview
Shelf Cap Set 8 200 with Raised Edge

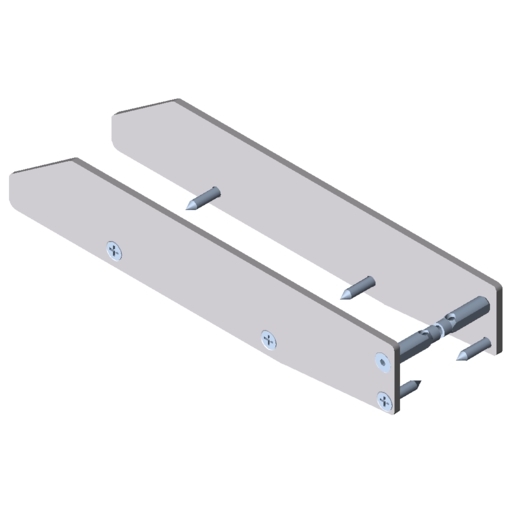

2 shelf caps 8 200, St, white aluminium 6 Countersunk Screws DIN 7504 3,9×19, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M4x16, St, bright zinc-plated 2 Automatic Fasteners 5 sleeves with threads, St, bright zinc-plated
Scope of Delivery
2 shelf caps 8 200, St, white aluminium 6 Countersunk Screws DIN 7504 3,9x19, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M4x16, St, bright zinc-plated 2 Automatic Fasteners 5 sleeves with threads, St, bright zinc-plated
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 362 g |
| Delivery unit | 1 set |

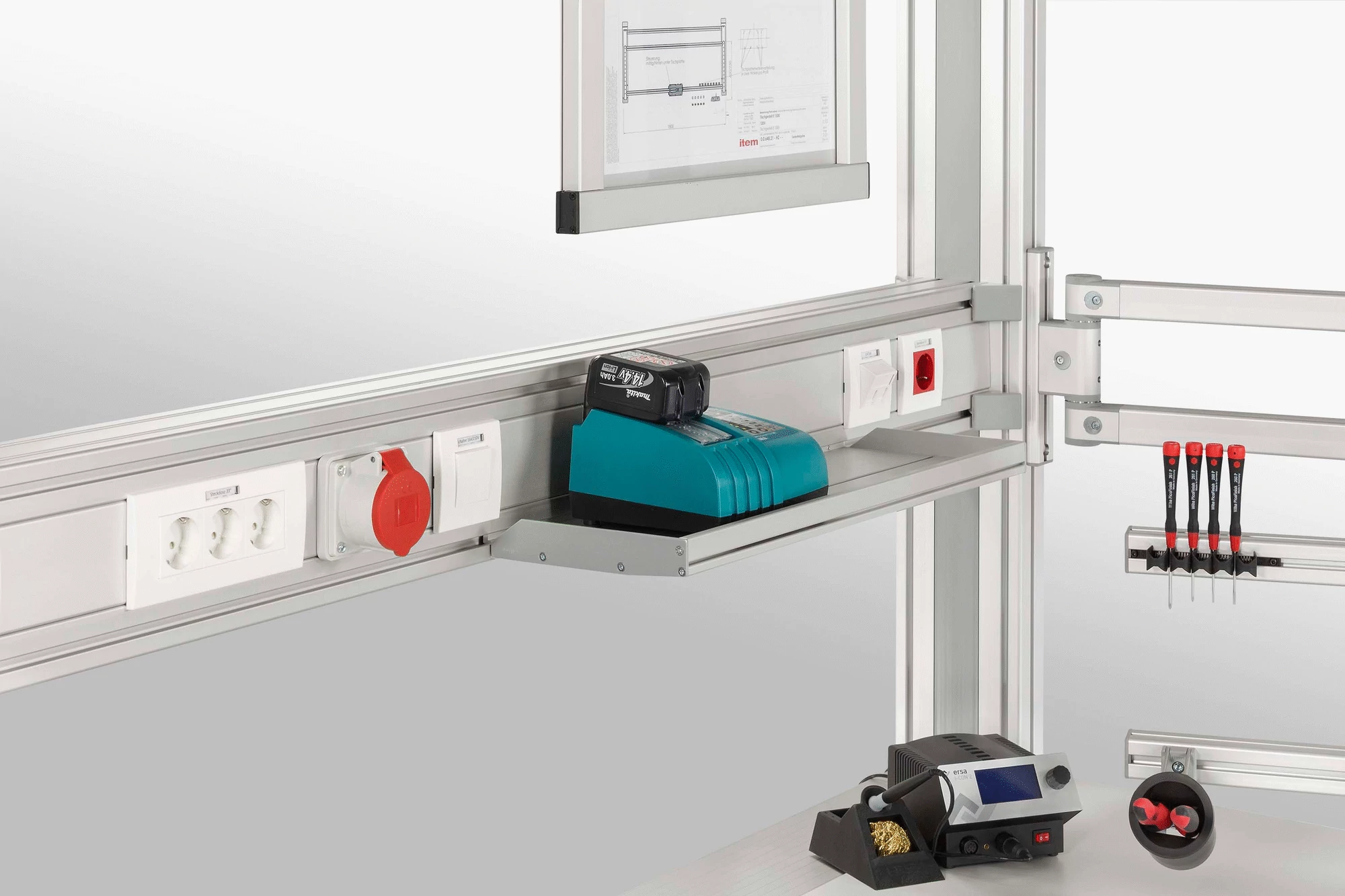

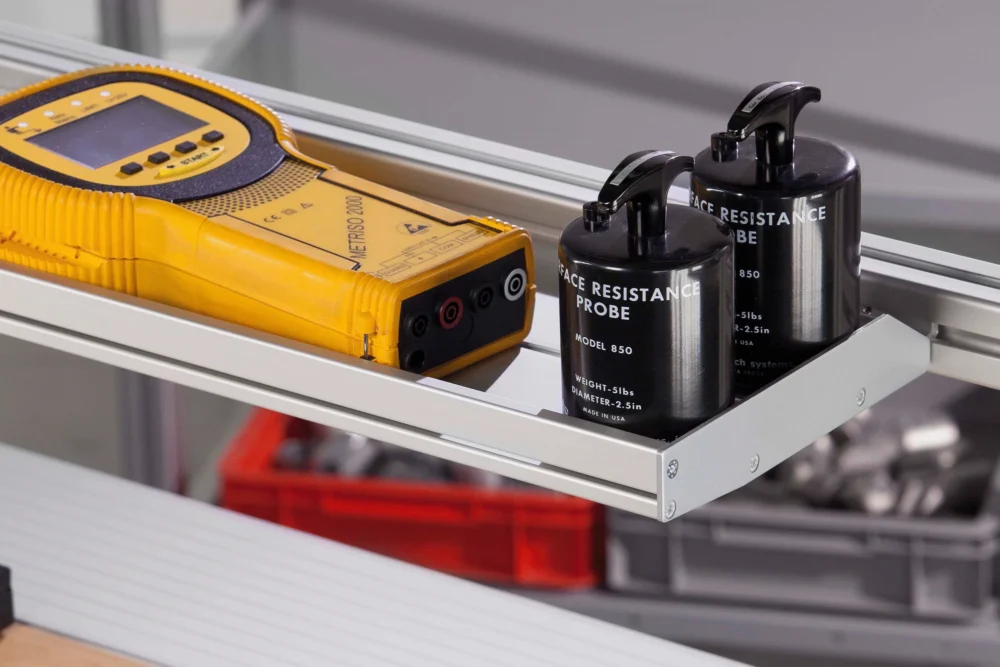

The solution that stops objects dropping off shelves – Shelf Profile 8 200 and Shelf Profile 8 320 can now be fitted with caps that also form a raised edge along their sides. When combined with a Profile 5 20x10 along the front, these Cap Sets help create a lip all the way around the shelf. The Shelf Cap Sets include all the fastening elements needed to construct a shelf of any length. Profile 5 20x10 must be the same length as the Shelf Profile.
