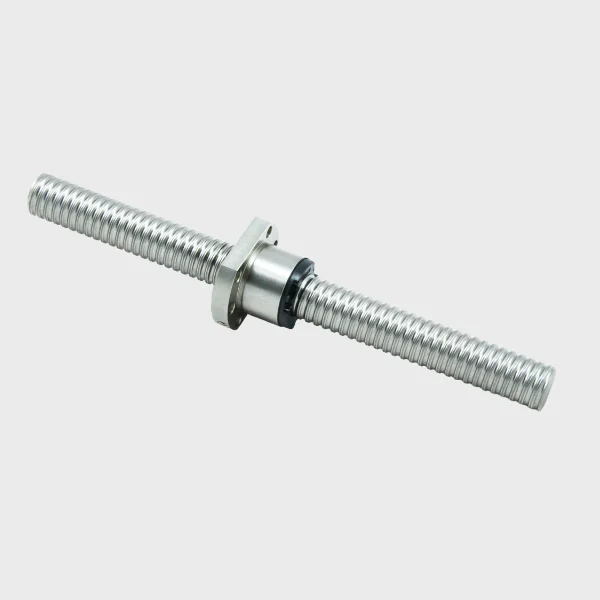

Ball Screw SFUL3205
Ball Screw SFUL3005-4-LEFT
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quote
| Model No. | Load | |||
| Ca | Coa | K | Max rec.load | |
| SFUL1605-4 | 13800 | 30520 | 320 | 1526 |
| SFUL2005-4 | 15510 | 38750 | 390 | 1938 |
| SFUL3205-4 | 19220 | 63430 | 540 | 8880 |
| Model No. | Dimension | |||
| W | X | Q | Max Length | |
| SFUL1605-4 | 38 | 5.5 | M6 | 3000 |
| SFUL2005-4 | 47 | 6.6 | M6 | 3000 |
| SFUL3205-4 | 65 | 9 | M6 | 6000 |
| Model No. | Dimension | ||||
| D | I | Da | n | Max Length | |
| SFUL1605-4 | 16 | 5 | 3.175 | 1x4 | 3000 |
| SFUL2005-4 | 20 | 5 | 3.175 | 1x4 | 3000 |
| SFUL3205-4 | 32 | 5 | 3.175 | 1x4 | 6000 |
| Model No. | Dimension | ||||
| D | A | B | L | H | |
| SFUL1605-4 | 28 | 48 | 10 | 50 | 40 |
| SFUL2005-4 | 36 | 58 | 10 | 51 | 44 |
| SFUL3205-4 | 50 | 80 | 12 | 52 | 65 |
