| Safety Switch 8, 24V DC | CADPDFRFQ |
Preview
Safety Switch 8, 24V DC
Safety Switch 24V DC, preassembled 24V DC actuator Protection type: IP67 to EN 60529 Standards: PL-E to EN ISO 13849-1, SIL 3 to IEC 61508, IEC 60947-5-3 Service life: 20 years Fastening plate, St, stainless Door Lip Seal, self-adhesive, grey similar to RAL 7042 2 security countersunk screws M5x12, St, stainless 2 T-Slot Nuts V 8 St M5, bright zinc-plated
Scope of Delivery
Safety Switch 24V DC, preassembled 24V DC actuator Protection type: IP67 to EN 60529 Standards: PL-E to EN ISO 13849-1, SIL 3 to IEC 61508, IEC 60947-5-3 Service life: 20 years Fastening plate, St, stainless Door Lip Seal, self-adhesive, grey similar to RAL 7042 2 security countersunk screws M5x12, St, stainless 2 T-Slot Nuts V 8 St M5, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 186 g |
| Delivery unit | 1 set |
| Voltage (DC) | U = 24 V DC |

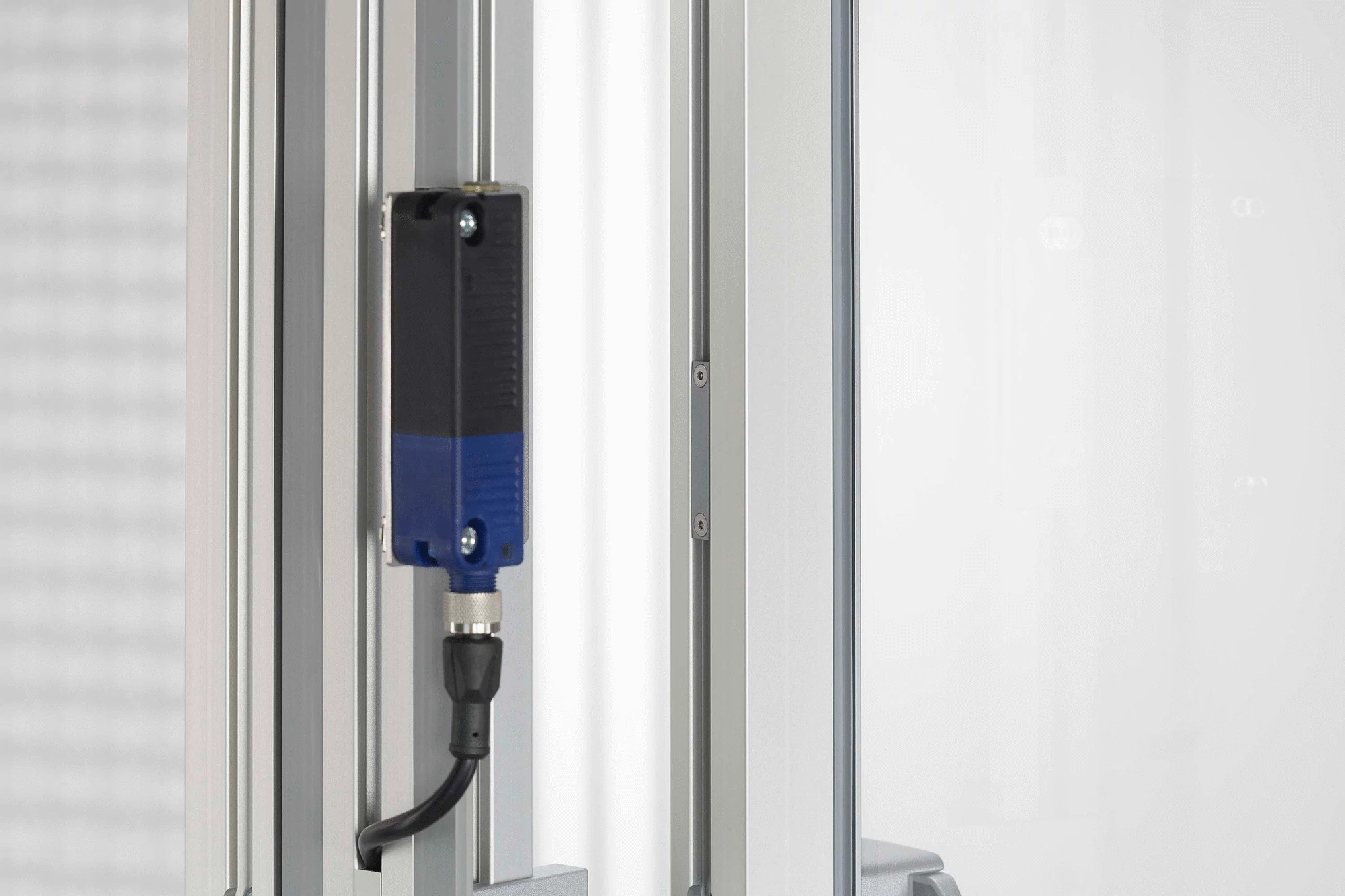

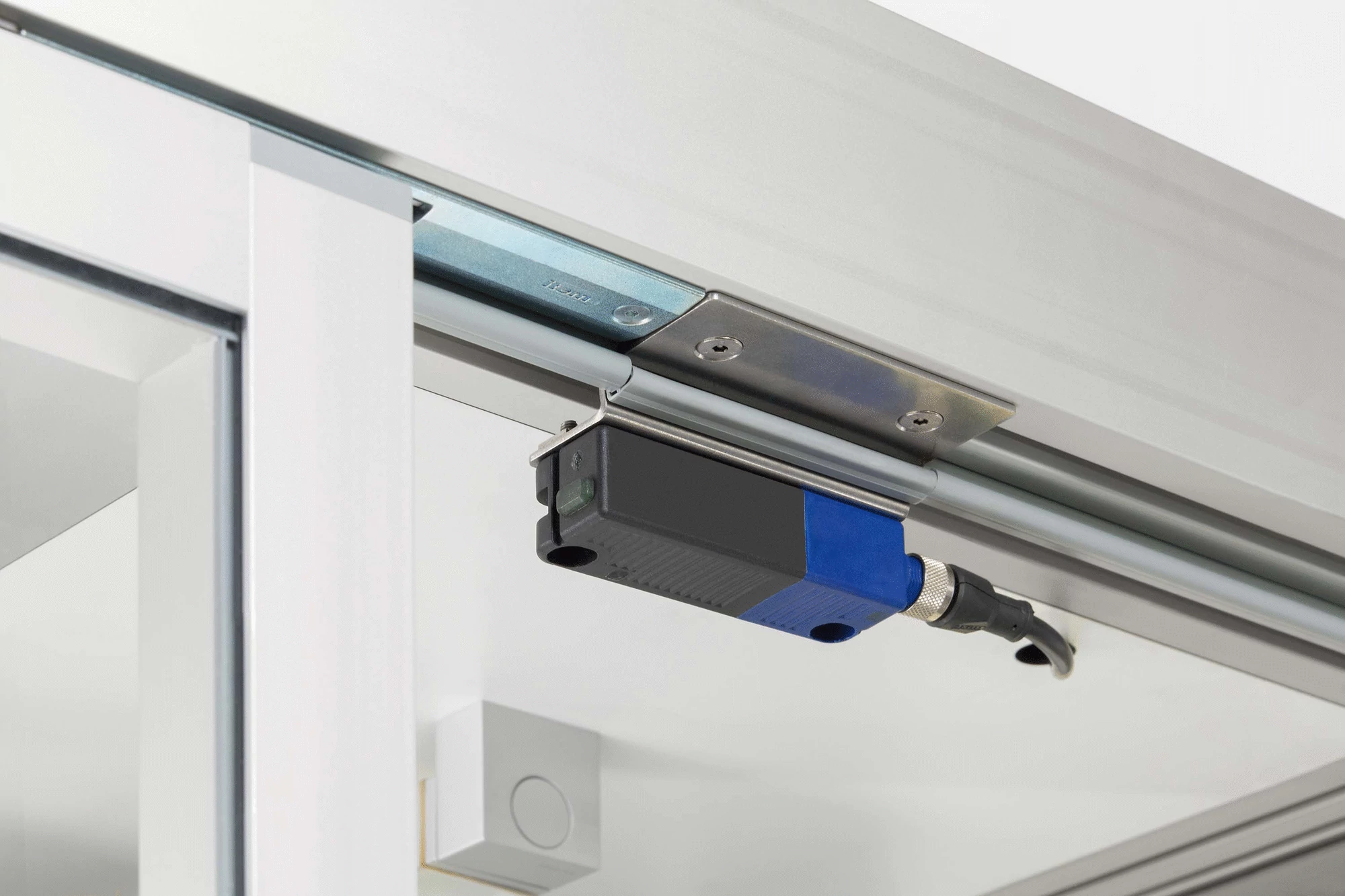

A new dimension in safety. Safety Switch 8, 24V DC uses contactless switching and therefore offers a long and reliable service life free from mechanical wear. This is made possible by an encoded electronic system that uses RFID technology. Each actuator features a coded chip and is completely concealed in the Line 8 groove. The switch registers whether the chip is within the sensor range with outstanding precision. In contrast to mechanical systems, the encoded chip is extremely tamper-proof. The system ensures repeat accuracy for switching points and an exceptional safety standard. Two short-circuit-proof safety outputs forward signals to the switchbox. The safety lines feature integrated monitoring for cross circuits, wire breakages and interference-voltage. Up to 31 switches can be connected in series to combine various measurement points. A three-colour LED on each switch enables users to check its operating status at a glance. Thanks to IP67 protection, Safety Switch 8 can be used in most environments. When used in the XMS profile system, a self-adhesive section of Door Lip Seal ensures a continuous all-round seal.
