Roller for Corner-Fastener 8 32×18

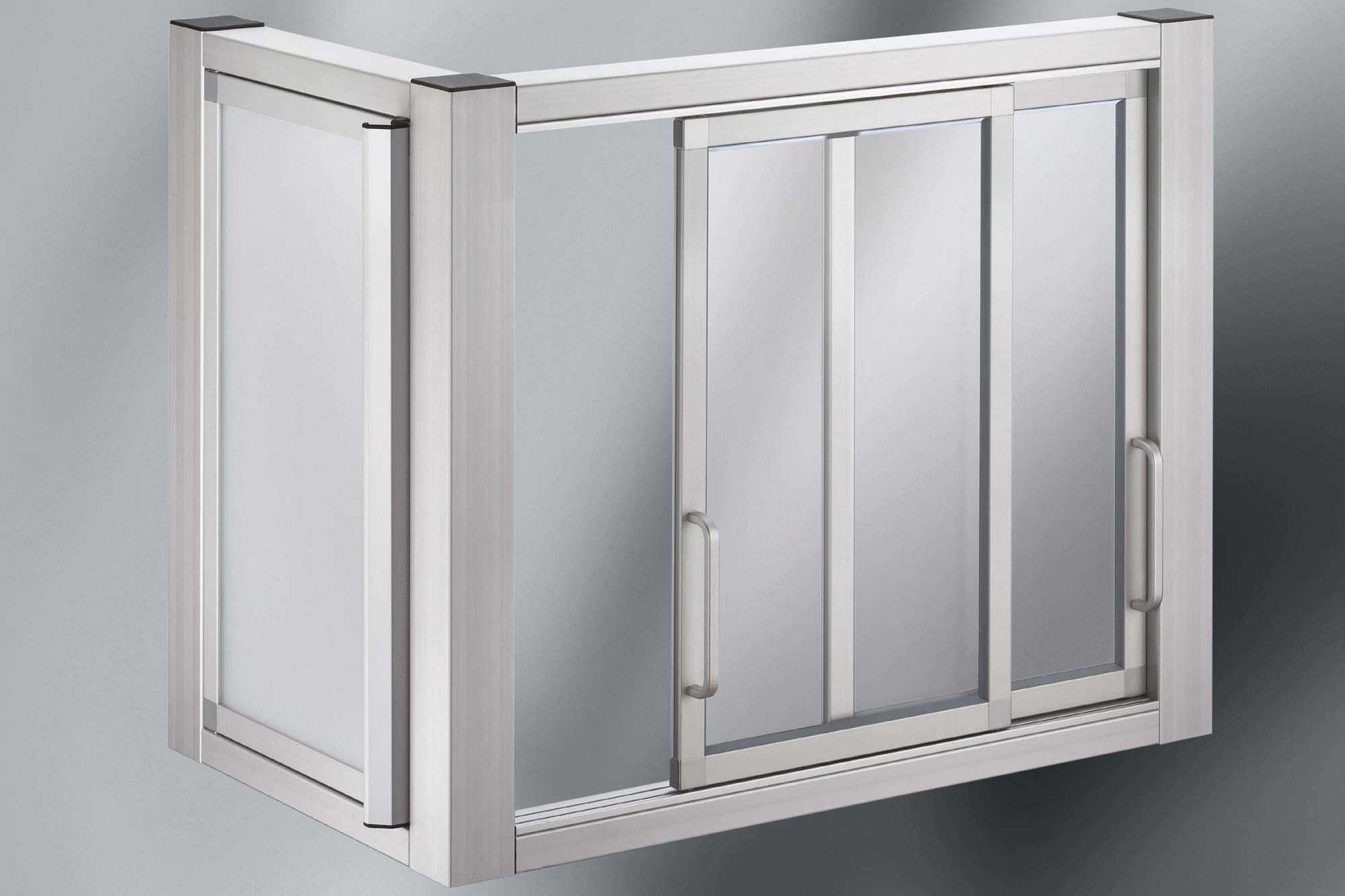

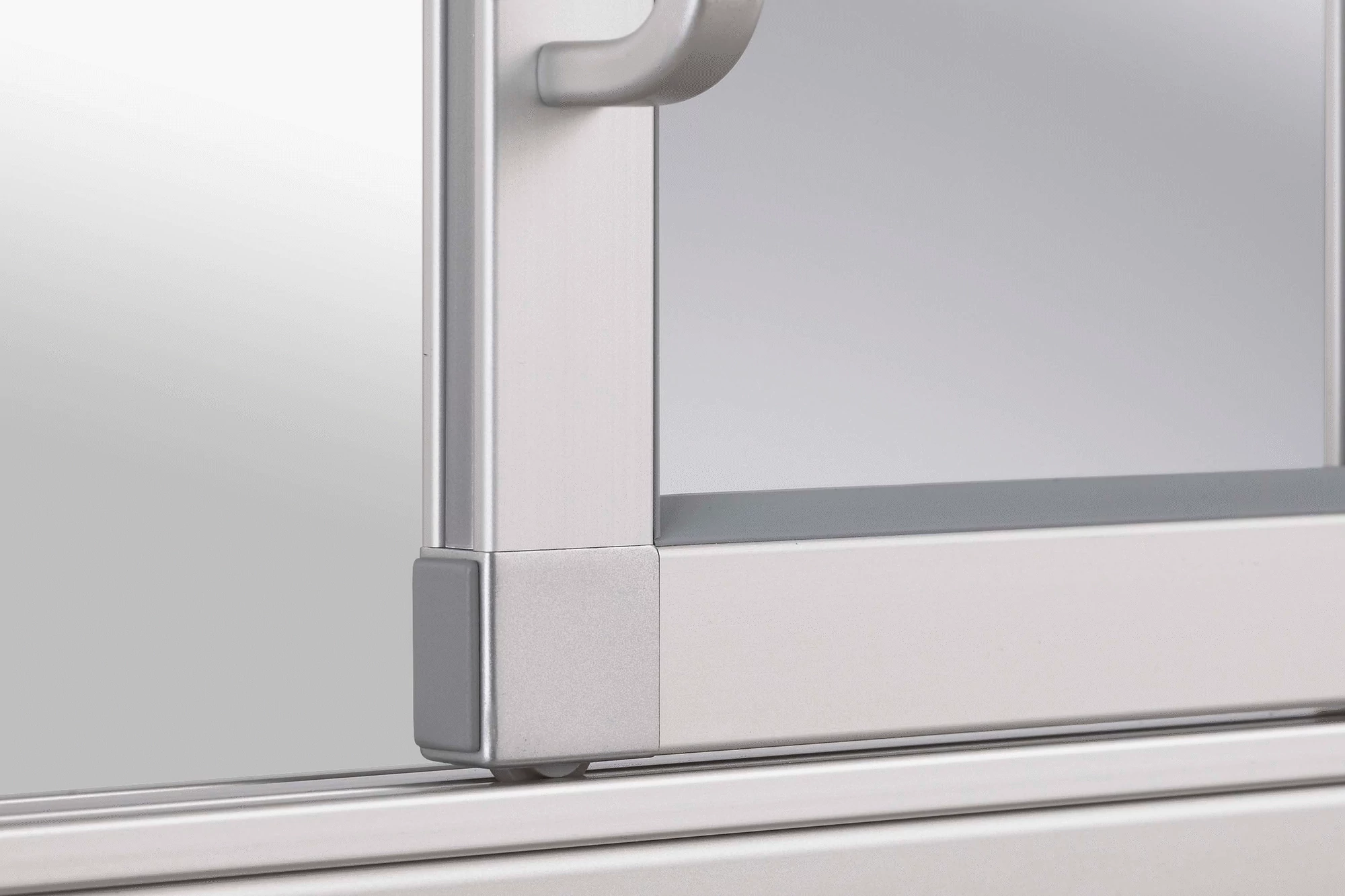

Corner-Fastening Set Clamp-Profile 8 32x18 is used for stable profile connections. The rigid screw fastening to the end faces of the profiles being connected produces a frame that is ideal for use within lightweight enclosures and for door frames. Corner-Fastening Set Clamp-Profile 8 32x18 contains all components required for a profile connection. An M5 thread must be tapped into the core bore of each Clamp Profile 8 32x18. The Corner-Fastening Sets are multifunctional. They can be used in a variety of ways when used with special add-on elements: - Roller Set 32x18 can be fitted directly into the corner fastener. This turns the frame into a smooth-running sliding door element that can be employed e.g. in the Sliding-Door Guide Profile 8 40x10. - Hinge Sets 32x18 come with an insert for the corner fastener which forms a door hinge in conjunction with a hinge bearing in the frame of the surrounding construction. This provides an easy means of constructing a stylish, lightweight swing door with a particularly low door gap and without needing to fit additional hinges. The maximum permissible weight of a door is 10 kg.

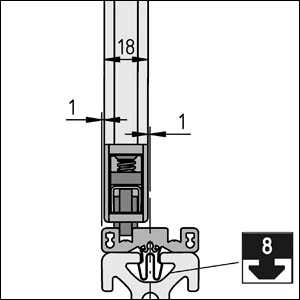

Sliding-Door Guide Profile 8 40x10 is fitted with Clip 8 St at the top and bottom of the surrounding profile frame. It forms the guide for two door leaves of Clamp Profile 8 32x18.

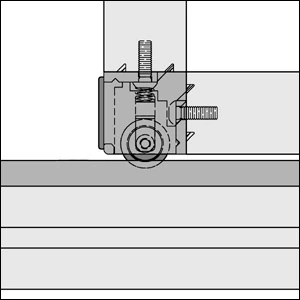

The sliding doors can also be run directly in the grooves of a Line 5 profile. This produces a particularly compact frame construction.

Folding-Door Hinge Al for Clamp Profile 8 32x18 is used to link together separate segments to create space-saving folding doors. Thanks to the Hinges, the moving elements fold up in a concertina formation.
