| Roller D39.5-25 | CADPDFRFQ |
Preview

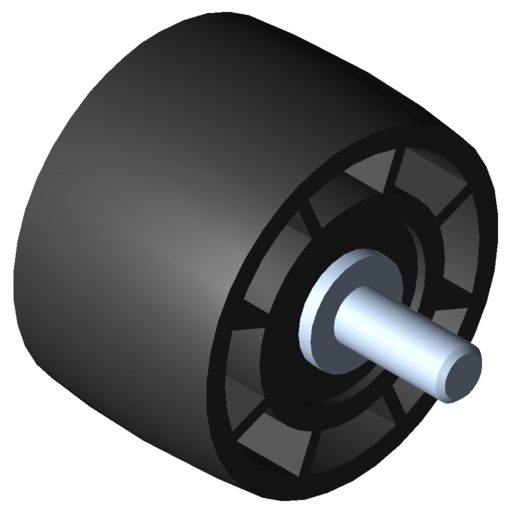

Roller D39.5-25
Roller D39.5-25 2 deep groove ball bearings, sealed Hexagon Socket Head Cap Screw DIN 912-M6x33, St, bright zinc-plated 2 washers DIN 125-6.4, St, bright zinc-plated
Scope of Delivery
Roller D39.5-25 2 deep groove ball bearings, sealed Hexagon Socket Head Cap Screw DIN 912-M6x33, St, bright zinc-plated 2 washers DIN 125-6.4, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | No |
| Weight | m = 49 g |
| Delivery unit | 1 set |

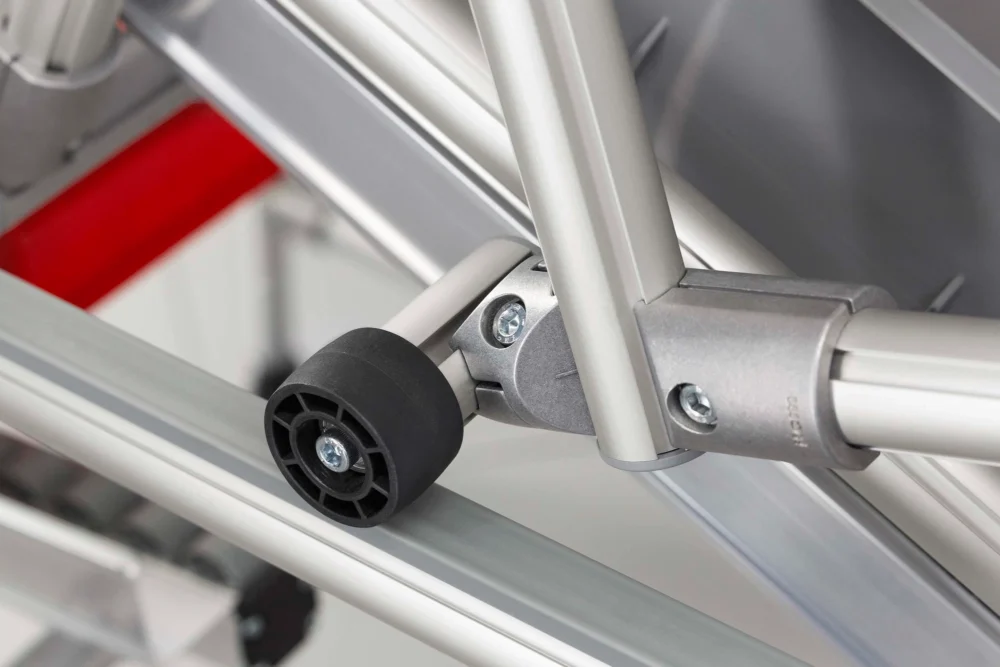

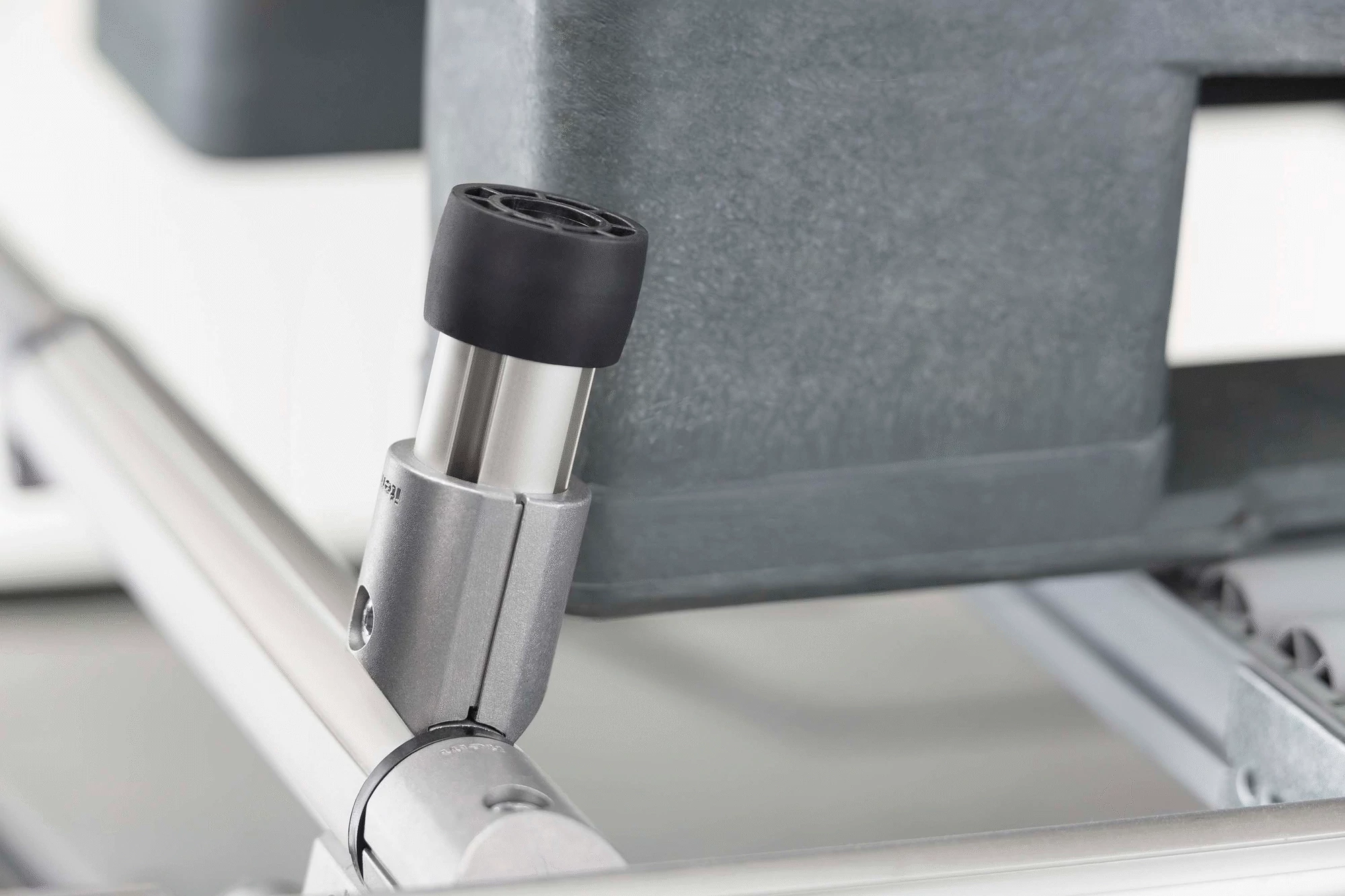

It keeps everything on track! Robust Roller D39.5-25 features a ball bearing and is designed to run on aluminium profiles to provide sound guidance for moving components. It is ideal for building Karakuri/LCA. Using the accessories in the scope of supply, Roller D39.5-25 can be fitted to a Profile 6 D30, either via the end face (M6 thread) or via the groove (using a T-Slot Nut). Alternatively, it can be secured in place using an item Multiblock D30.
