| Roller Conveyor 6 80×40 Fastening Bracket D30 | CADPDFRFQ |
Preview
Roller Conveyor 6 80×40 Fastening Bracket D30
Fastening Bracket, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 6912 M6x12, St, bright zinc-plated 2 Washers ISO 7093-1-6-200 HV, St, bright zinc-plated 2 T-Slot Nuts 6 St M6, St, bright zinc-plated
Scope of Delivery
Fastening Bracket, St, bright zinc-plated 2 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 6912 M6x12, St, bright zinc-plated 2 Washers ISO 7093-1-6-200 HV, St, bright zinc-plated 2 T-Slot Nuts 6 St M6, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 297 g |
| Delivery unit | 1 set |

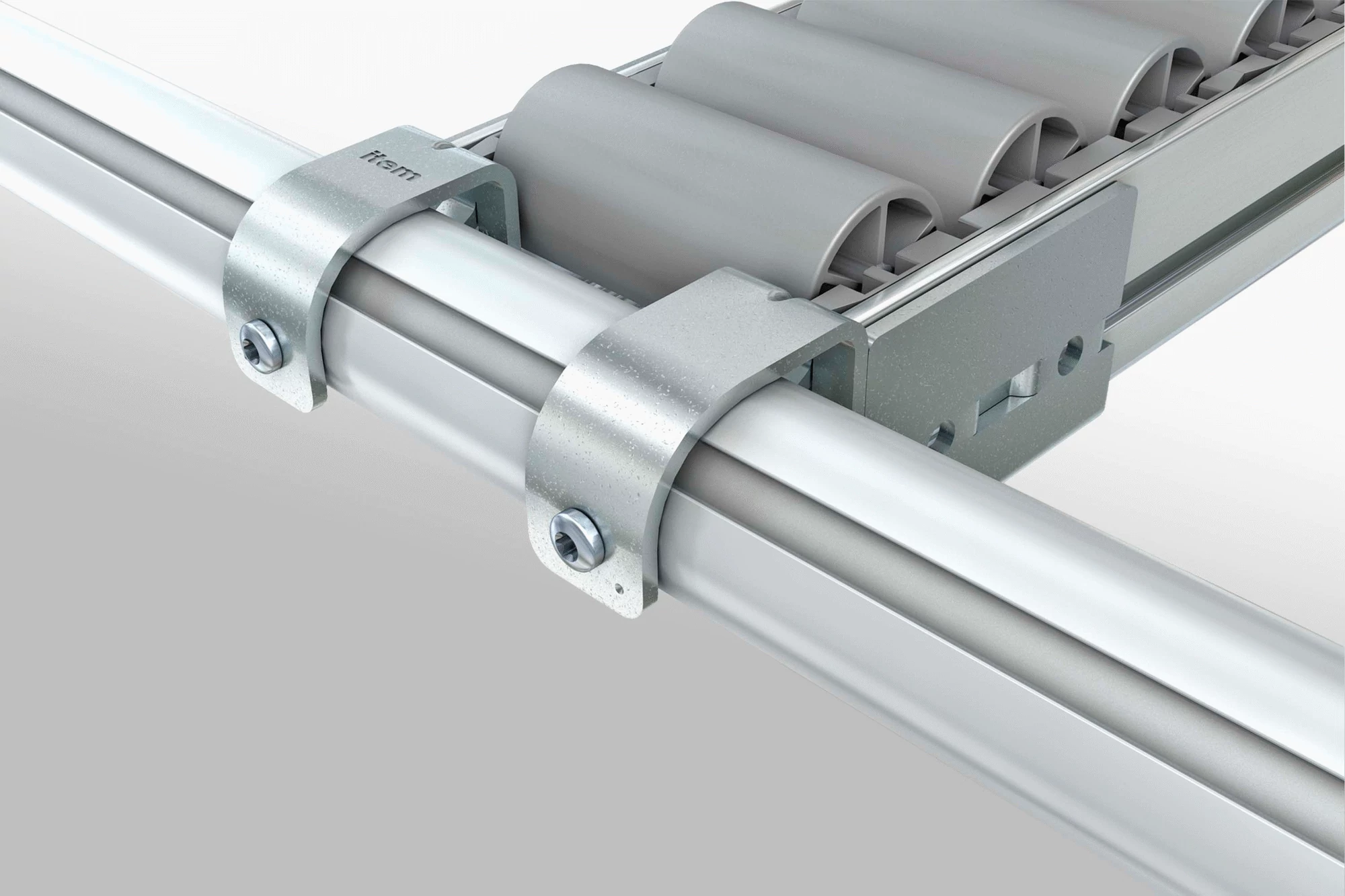

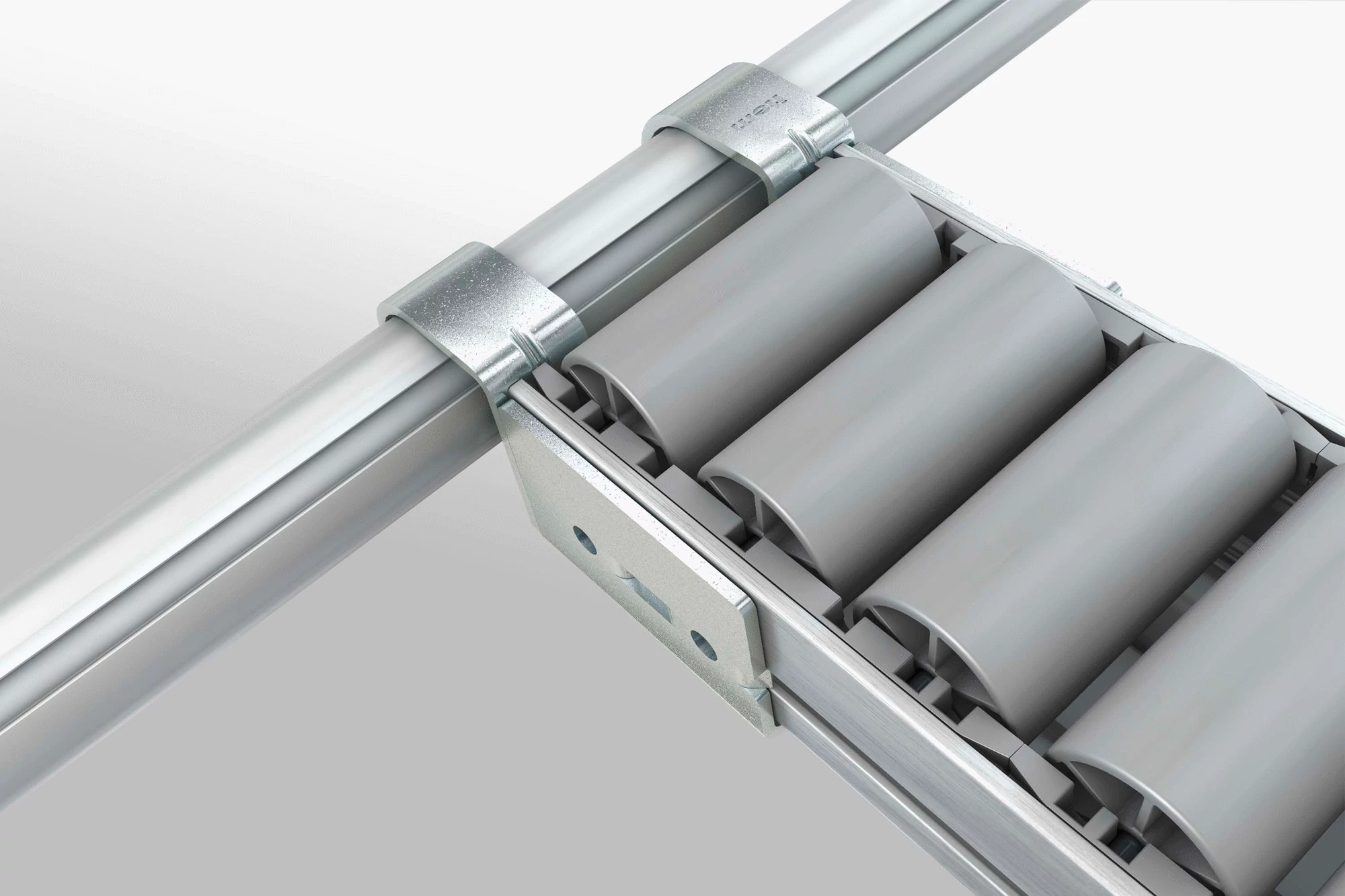

A stable hold at every angle: Roller Conveyor 6 80x40 Fastening Bracket D30 is used to fasten Roller Conveyor 6 80x40 E D30 to a (Profile) Tube D30. The Fastening Bracket can be secured to the roller conveyor with the supplied T-Slot Nuts, thereby creating a very secure connection. This means the roller conveyor can be used as a load-bearing element, which enhances the stability of the frame. If required, the Fastening Bracket can also be secured to the profile using the enclosed self-tapping screws. Note: Roller Conveyor 6 Al Fastening Brackets U D30 (0.0.667.56) and I D30 (0.0.667.57) are used to interlink conveyor lines with Roller Conveyor 6 80x40. Their hanger elements intermesh on the strut. Two Fastening Brackets of each type are screwed to the Line 6 grooves on the roller conveyors.
