Rebate Profile 8 Al 16, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 268 g/m |
| Delivery unit | 1 pce., length 2000 mm |
| Material | Al, anodized |
| Colour | natural |

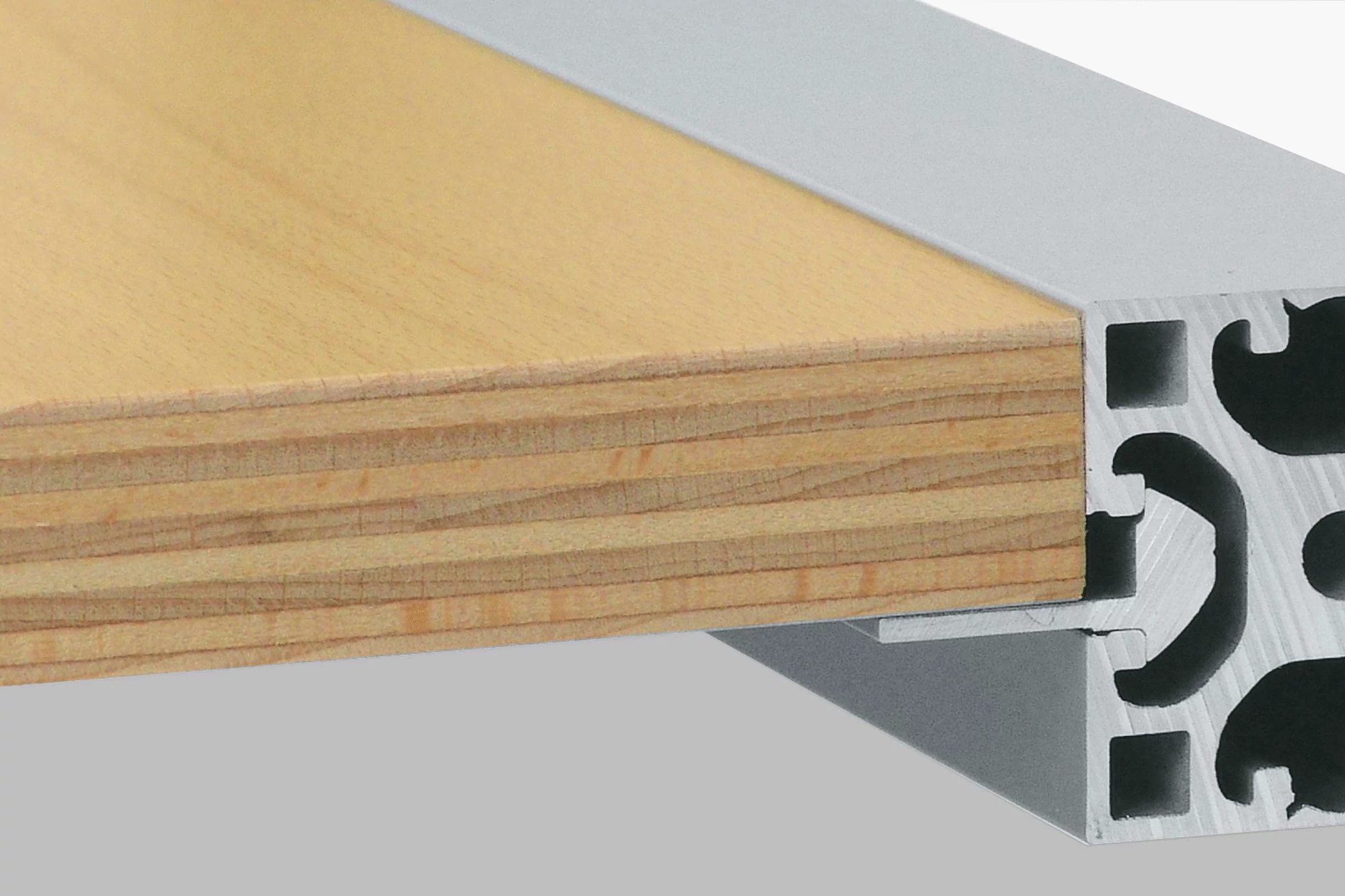

Rebate Profiles 8 Al 16 for universal fastening of various elements to Profiles 8. Rebate Profiles 8 Al 16 are also suitable either as a continuous screw strip for practically dust and dirt-tight constructions, in combination with panel elements and Sealing Strips, or as a rebate strip for doors. Rebate Profile 8 Al 16 M5 (0.0.605.21) is supplied with the required threaded holes and grub screws already in place.

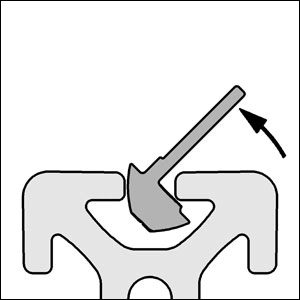

The Rebate Profile is inserted into the groove and fixed in position with grub screws M5.

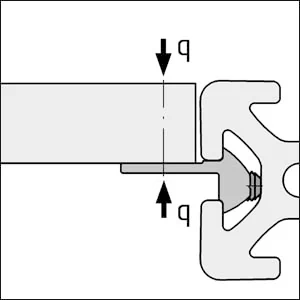

Permissible linear load for Rebate Profiles 8 Al: q max . = 1,000 N/m.

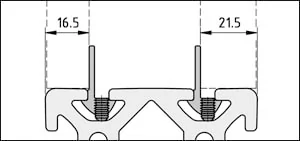

Connection dimensions for the Rebate Profile 8 Al 16 to Profiles 8. The distances between the Rebate Profiles and the edge of the profile make them ideal for installing 16 and 21 mm thick panel elements in profile constructions.
