| Pulley D75/D55-14 M6 ESD | CADPDFRFQ |
Preview

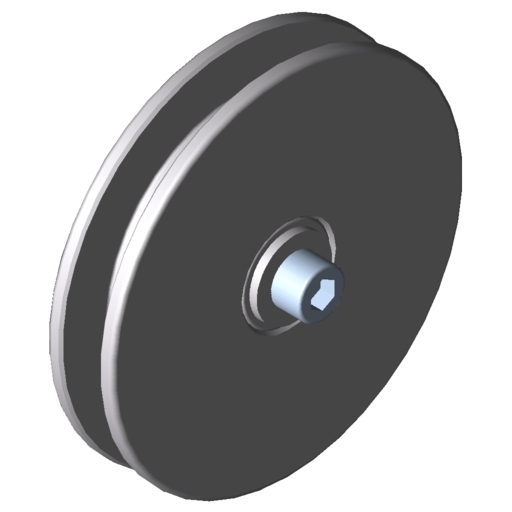

Pulley D75/D55-14 M6 ESD
1 Rolle D75/D6-14, thermoplastischer Kunststoff, ESD 1 Zylinderschraube DIN 912-M6x28, St, verzinkt 1 Scheibe ISO 7089-6-200 HV, St, verzinkt 1 Scheibe ISO 7093-1-6-200 HV, St, verzinkt 1 Passscheibe DIN 988-6x12x0,3, St, verzinkt 1 Nutenstein V 8 St M6, St, verzinkt
Scope of Delivery
1 Pulley D75/D6-14, thermoplastic, ESD 1 Hexagon Socket Head Cap Screw DIN 912-M6x28, St, bright zinc-plated 1 Washer ISO 7089-6-200 HV, St, bright zinc-plated 1 Washer ISO 7093-1-6-200 HV, St, bright zinc-plated 1 adapter washer DIN 988-6x12x0.3, St, bright zinc-plated 1 T-Slot Nut V 8 St M6, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 96 g |
| Delivery unit | 1 set |

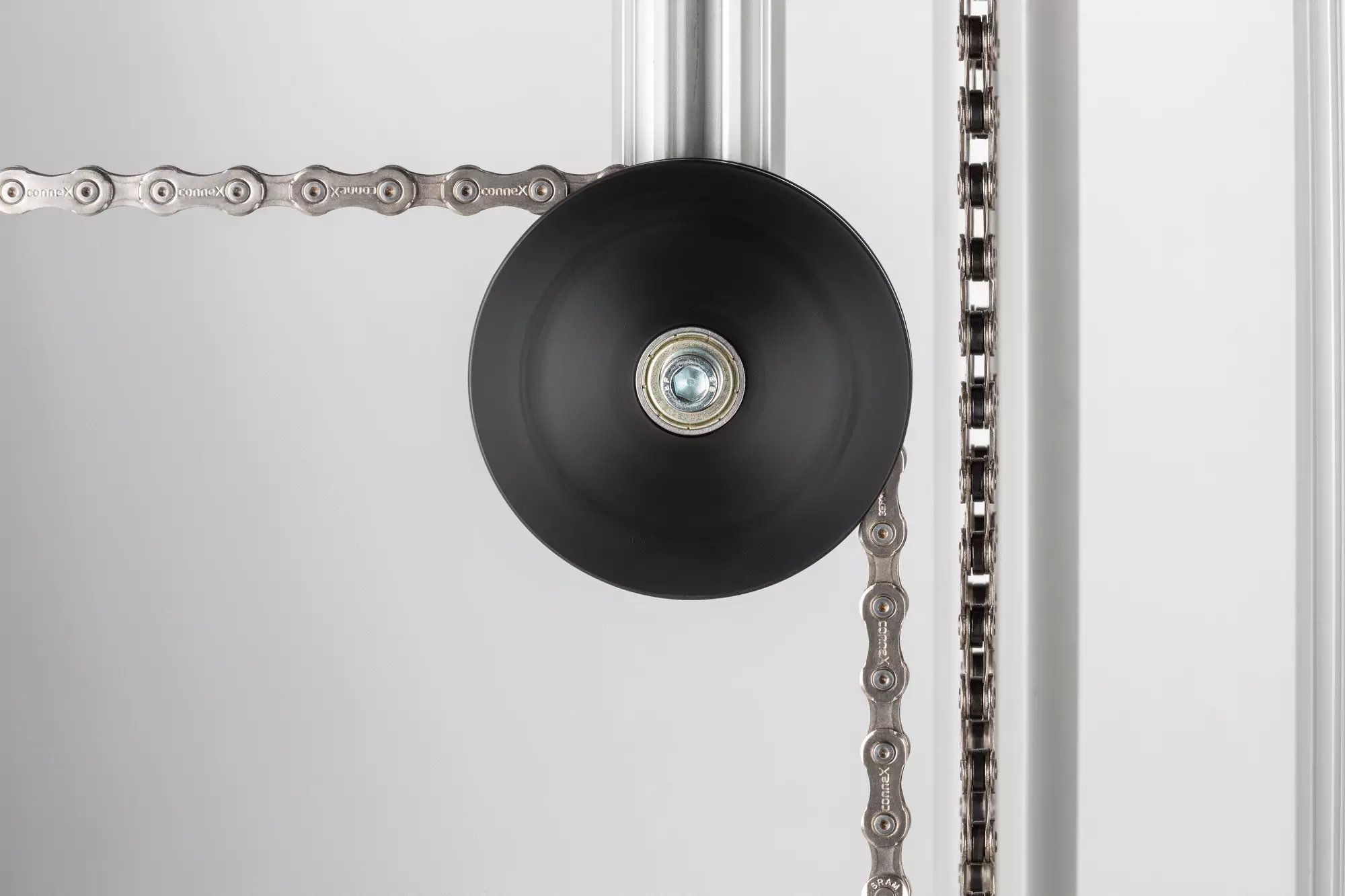

Ball-bearing mounted Pulley D75/D55-14 M6 ESD radially redirects Chain 1/2" (0.0.465.17). To prevent pinching, the chain runs entirely within the 10 mm-deep groove. The Pulley is ESD safe and is supplied with the fixings needed to fit it to a Line 8 groove.
Chain 1/2" (0.0.465.17) is an alternative to a cable for Karakuri/LCA applications It is connected to a profile using Chain Fastener 1/2" M6-50 (0.0.708.59). It can be redirected using Pulley D75/D55 (0.0.708.62) and Chain Connector 1/2" 90° (0.0.708.60). Sprocket Wheel z16 D34 (0.0.714.48) is used to transmit forces, and is fitted in place on a Profile Tube D30 heavy duty using Adapter Sleeve D30-43 M35 (0.0.714.50). The Profile Tube itself is fitted to a frame using Bearing Flange Set 8 D30 120x30 (0.0.715.23), which ensures it can rotate freely.
