Proximity Switch M8
Inductive Proximity Switch, positive switching, suitable for installation in thread M8x1 Voltage = 10…30 V DC Max. switching current = 200 mA Sensing range = 1.5 mm LED control display Connecting cable, black l = 3 m; d = 3.5 mm
Art. no: 0.0.337.14
Categories: Proximity switches, Proximity switches, Proximity switches
Tag: Static
Scope of Delivery
Inductive Proximity Switch, positive switching, suitable for installation in thread M8x1 Voltage = 10...30 V DC Max. switching current = 200 mA Sensing range = 1.5 mm LED control display Connecting cable, black l = 3 m; d = 3.5 mm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 54 g |
| Delivery unit | 1 pce. |
| Material | St, stainless |

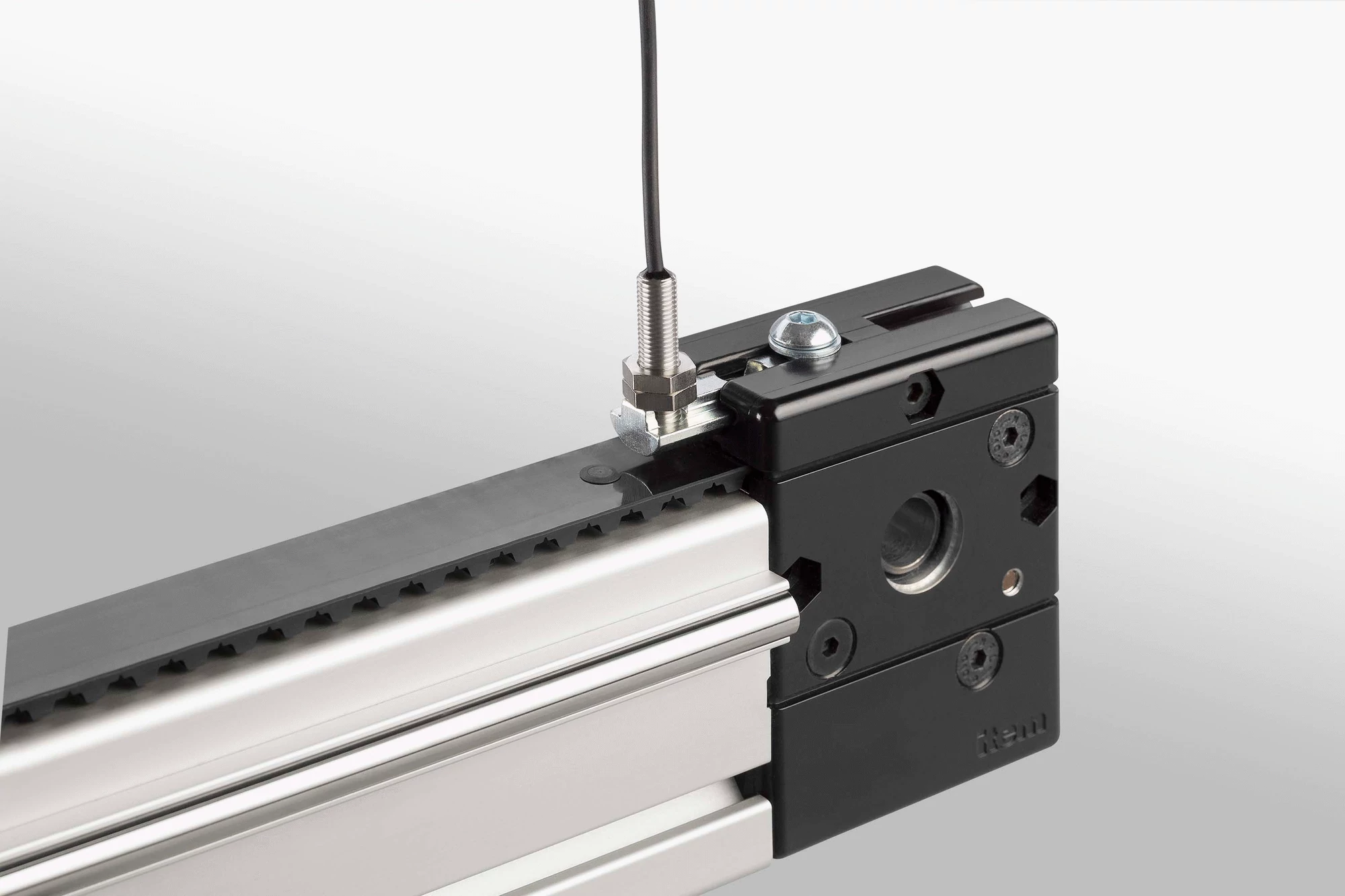

Proximity Switch M8 is a versatile device for limiting the terminal position or for reference on Linear Units with timing-belt drives. It is available with a permanent or plug-in connecting cable. The Proximity-Switch Cam is used to mark the terminal position and/or the reference point of the unit on the Timing Belt.
Possible arrangement of Proximity Switches 8 and Proximity-Switch Cams 8: The Proximity-Switch Cams do not run through the Timing-Belt Reverse Units.
Possible arrangement of Proximity Switches 8 and Proximity-Switch Cams 8: The Proximity-Switch Cams run through the Timing-Belt Reverse Units. Particularly suitable when used with the drive end Timing Belt Reverse Unit for simplifying cable routing between the drive unit, Proximity Switch and motor control unit.
