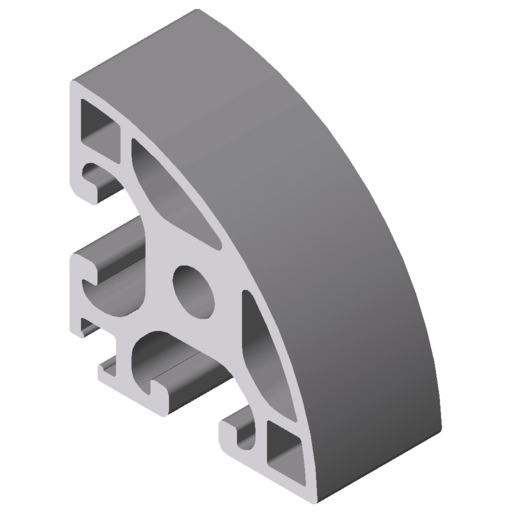

Profile X 8 R40-90° – XMS, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Cross-sectional area | A = 5.77 cm2 |
| Moment of Inertia, torsional | It = 2.6 cm4 |
| Moment of Inertia, x-axis | Ix = 6.74 cm4 |
| Moment of Inertia, y-axis | Iy = 6.74 cm4 |
| Weight | m = 1.56 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |

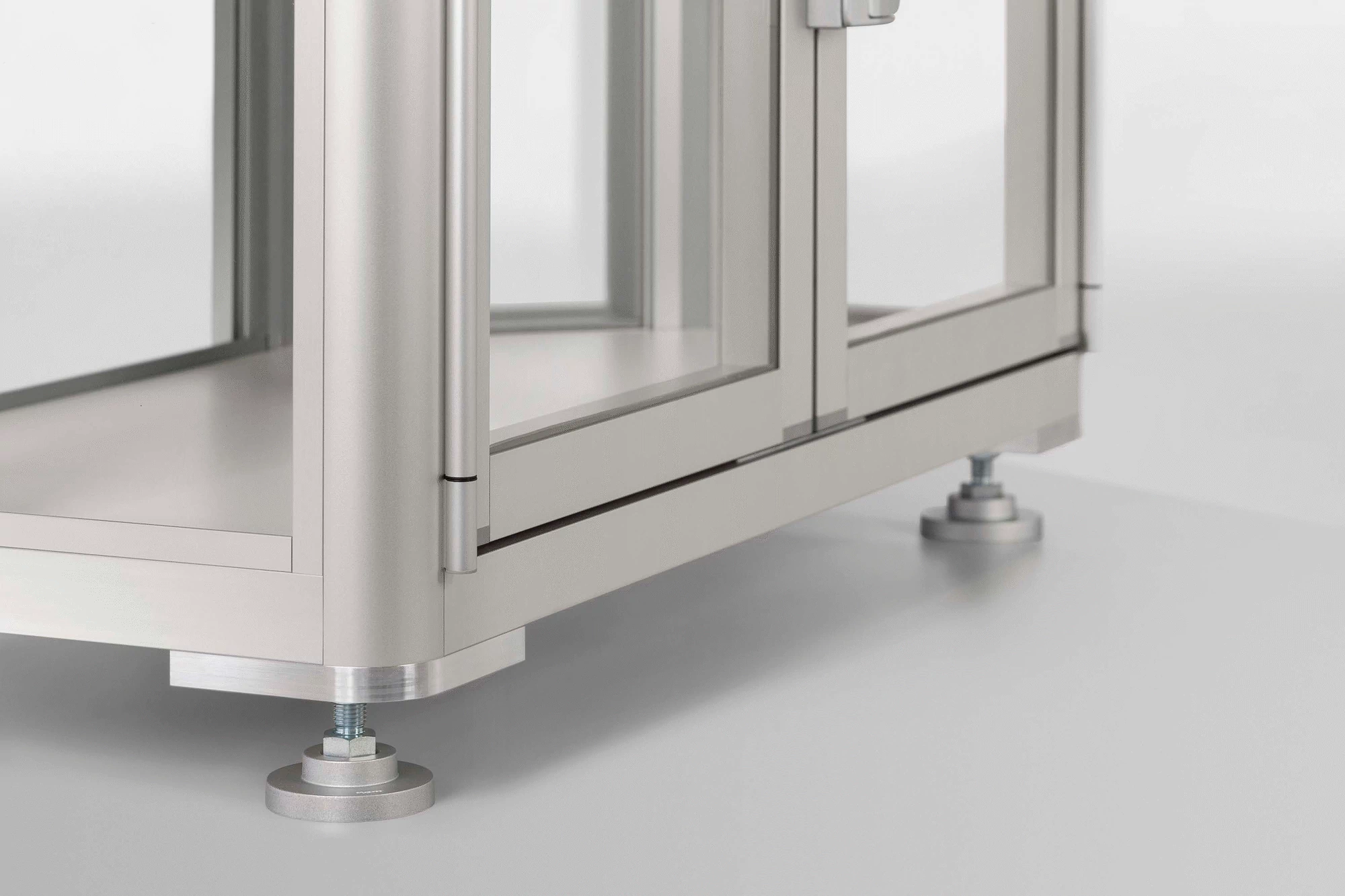

The especially compact Profile X 8 R40-90° - XMS without a cable conduit can be used in between two doors that close against the same Door Lip Seal T2 - XMS (0.0.649.87). In this scenario, the Door Lip Seal is fitted into the inside corner to seal both doors when they are shut.
