Profile 8 R26-270°, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 6.55 cm2 |
| Moment of Inertia, torsional | It = 11.9 cm4 |
| Moment of Inertia, x-axis | Ix = 12.3 cm4 |
| Moment of Inertia, y-axis | Iy = 11.1 cm4 |
| Weight | m = 1.77 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 5000 N |

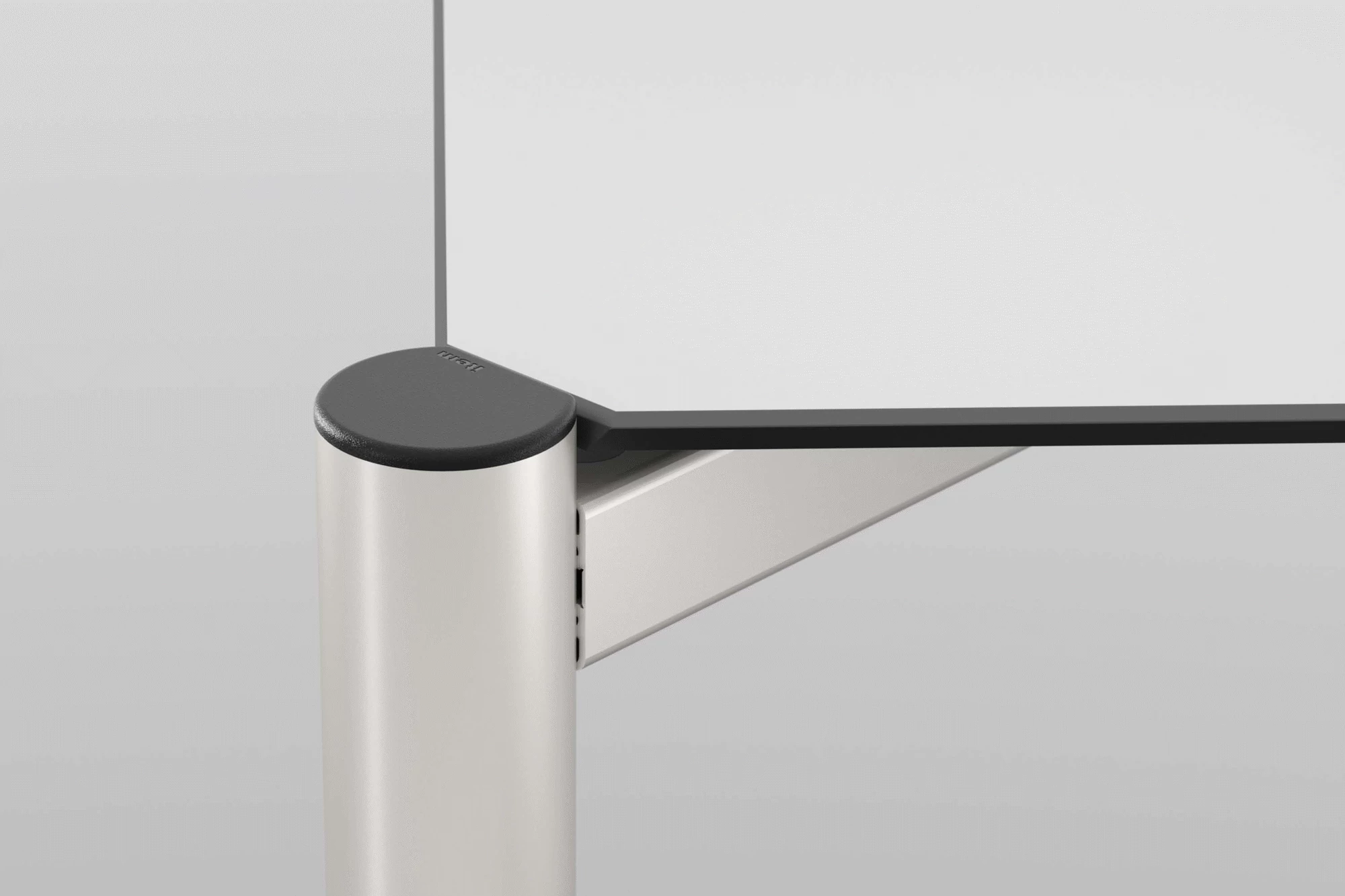

Profile with round outer surface closed on three sides, with a Profile 8 light duty groove. This is particularly useful as a table leg attached to one corner of a table structure. The Profile 8 groove can be used to connect the profile with any desired table support structure made of standard system elements. The fact that its exterior surface is closed on three sides makes it both stylish and easy to clean. The Cap 8 R26-270° (Section 1.2 Accessories for Profiles) can also be fitted at the bottom of the profile to protect the floor. There are also many other possible uses, e.g. as a hand rail for installation on walls and profile structures. The profile groove on one side can be closed off by means of a Cover Profile 8 R40 (Section 1.2 Accessories for Profiles) in order to produce a round profile contour without grooves.
