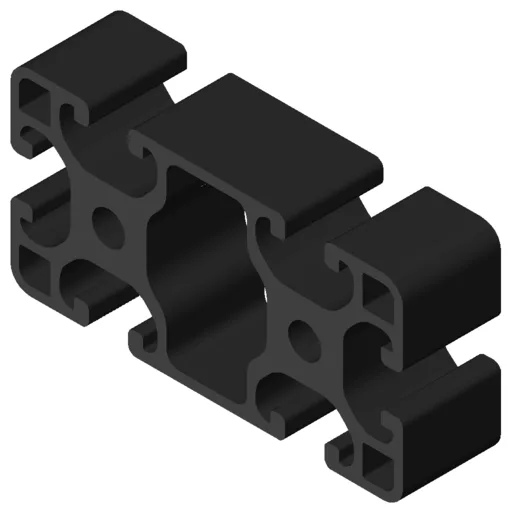

Profile 8 80×40 light, black

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: 0.0.026.36 Category: Tag:
Set CAD-format
0.0.026.36

Preview

Properties

line 8line 8
ESD-safeYes
Cross-sectional areaA = 11.38 cm2
Moment of Inertia, torsionalIt = 9.94 cm4
Moment of Inertia, x-axisIx = 16.6 cm4
Moment of Inertia, y-axisIy = 69.54 cm4
Weightm = 3.04 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Permissible groove extraction forceF = 2500 N
Das Profil 8 80x40 leicht, schwarz ist ein universelles Konstruktionsprofil aus hochwertig schwarz eloxiertem Aluminium im Rastermaß der Baureihe 8. Das gewichtsreduzierte Aluprofil in der item Ausführung leicht besitzt sechs offene Profilnuten 8.
The profiles in Line 8 are available in standard, light and economy (E) design variants. Due to additional cavities, a Profile 8 80x40 light weighs around 33 percent less than a Profile 8 80x40 in the same length. A Profile 8 80x40 E weighs approximately 47 percent less. The area moments of inertia against profile deflection and the maximum groove load-bearing capacity of the selected profile must be given due consideration in respect of the loads involved.
