Profile 8 120×40, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 24.38 cm2 |
| Moment of Inertia, torsional | It = 36.53 cm4 |
| Moment of Inertia, x-axis | Ix = 39.8 cm4 |
| Moment of Inertia, y-axis | Iy = 322.66 cm4 |
| Weight | m = 6.58 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 5000 N |

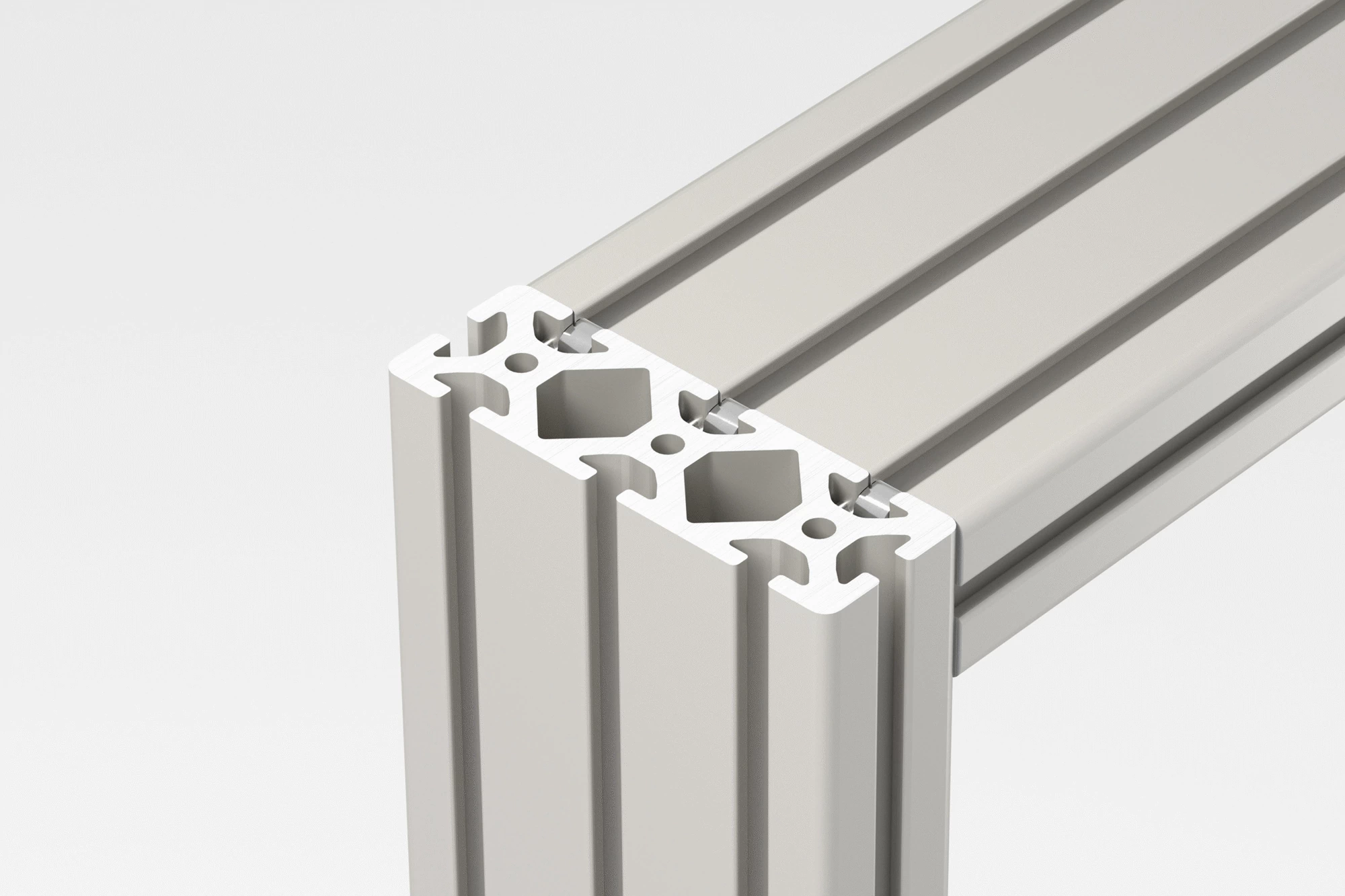

Profile 8 120x40 is a universal construction profile made of high-quality anodized aluminium in the modular dimension of Line 8. This robust aluminium profile in the standard design variant from item features eight open Line 8 profile grooves.

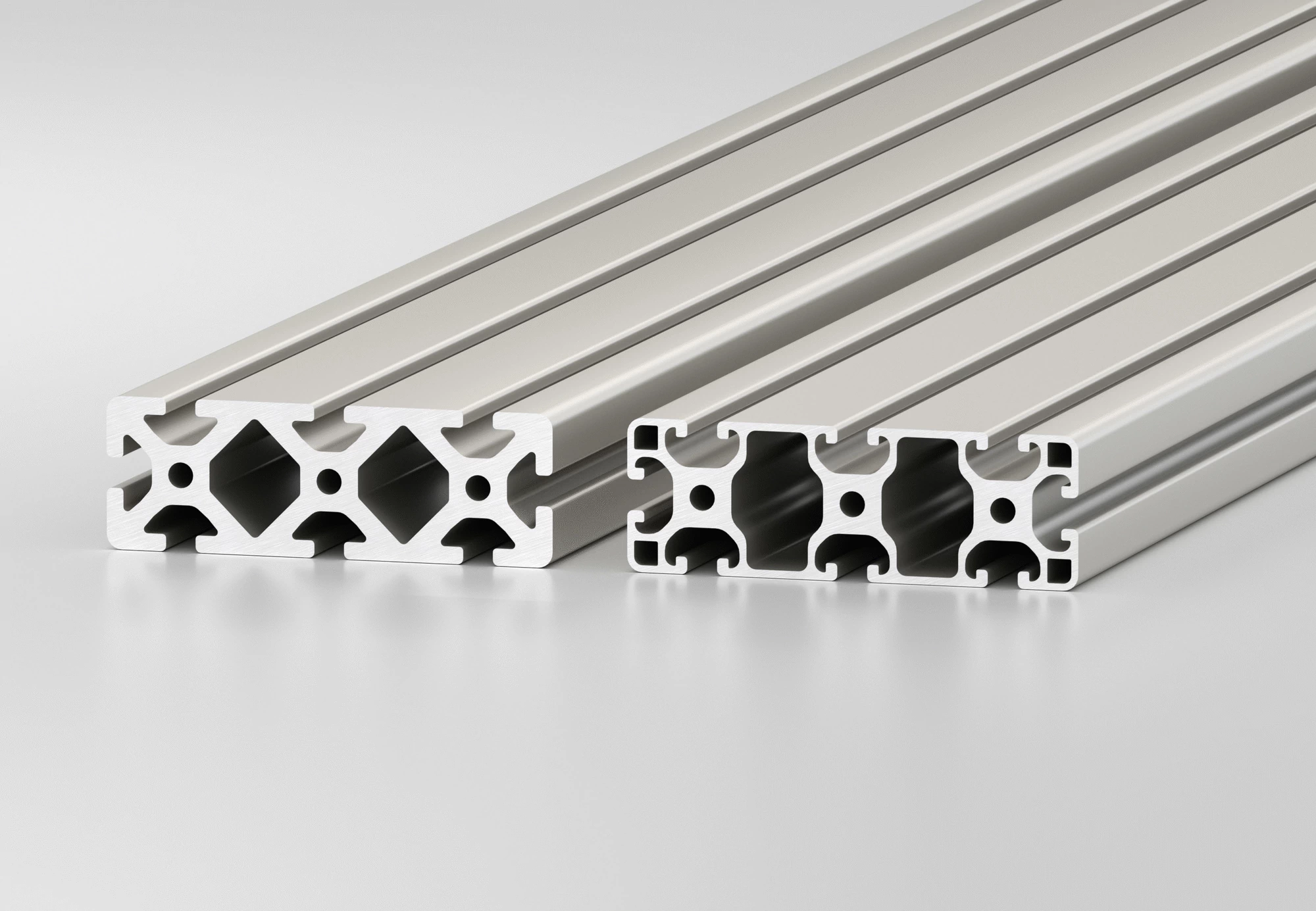

The profiles in Line 8 are available in standard, light and economy (E) design variants. Due to additional cavities, a Profile 8 120x40 light weighs around 34 percent less than a Profile 8 120x40 in the same length. The area moments of inertia against profile deflection and the maximum groove load-bearing capacity of the selected profile must be given due consideration in respect of the loads involved.
