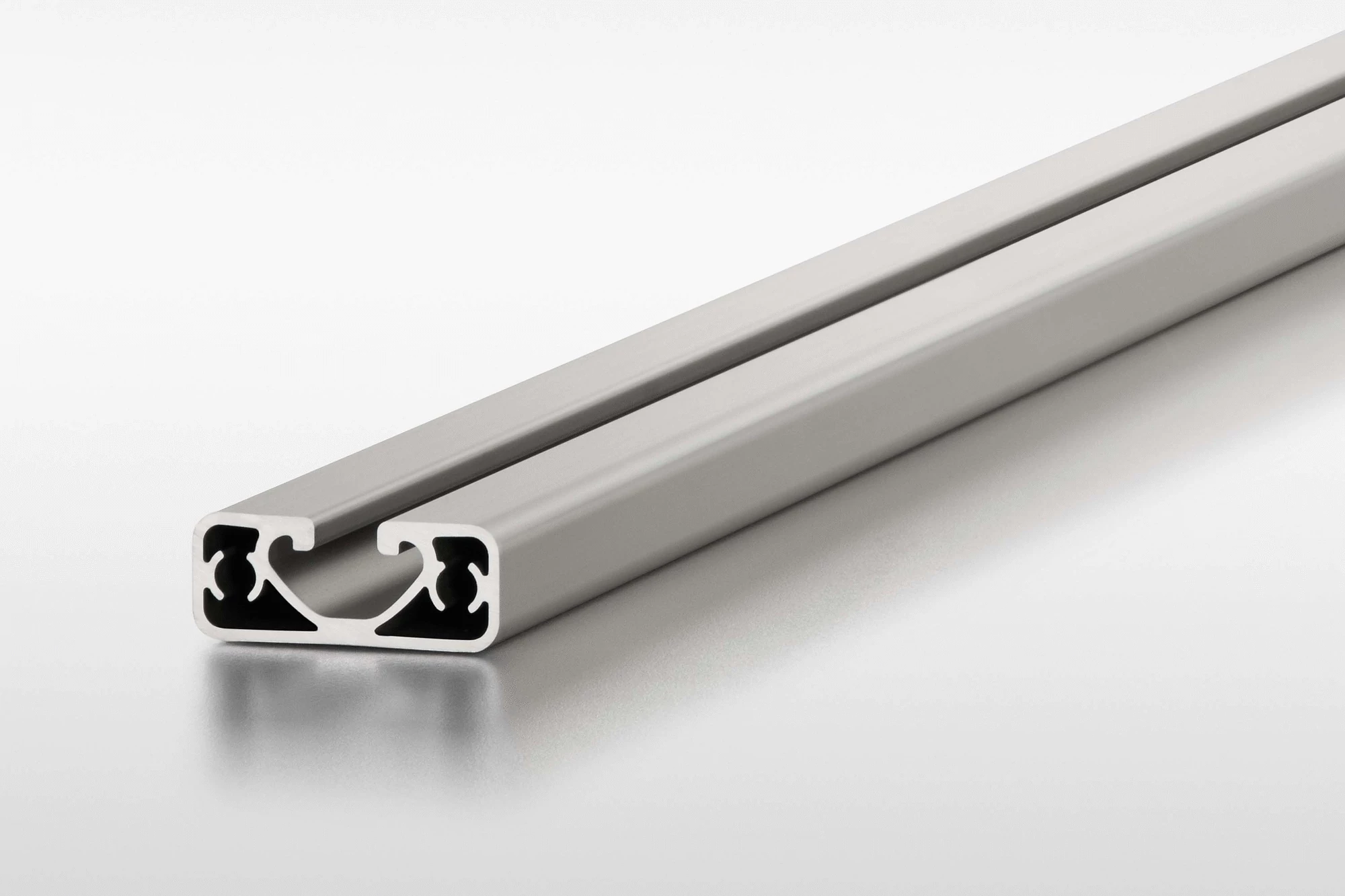

Profile 10 50×20 E, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 10 | line 10 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 3.69 cm2 |
| Moment of Inertia, torsional | It = 1.38 cm4 |
| Moment of Inertia, x-axis | Ix = 1.7 cm4 |
| Moment of Inertia, y-axis | Iy = 9.08 cm4 |
| Weight | m = 0.99 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 3500 N |
Line 10 continues to grow. The addition of Profile 10 50x20 E enhances the line with a universal profile that is compatible with all types of fastening solution, offers a flat cross-section and can be easily incorporated into constructions. The Profile 10 groove leaves all options open when it comes to fastening techniques and provides the perfect hold for all fastening elements. Caps ensure added safety at the profile end.
