| Pneumatic Connecting Plate 8 80×40 G1/2, black | CADPDFRFQ |
Preview

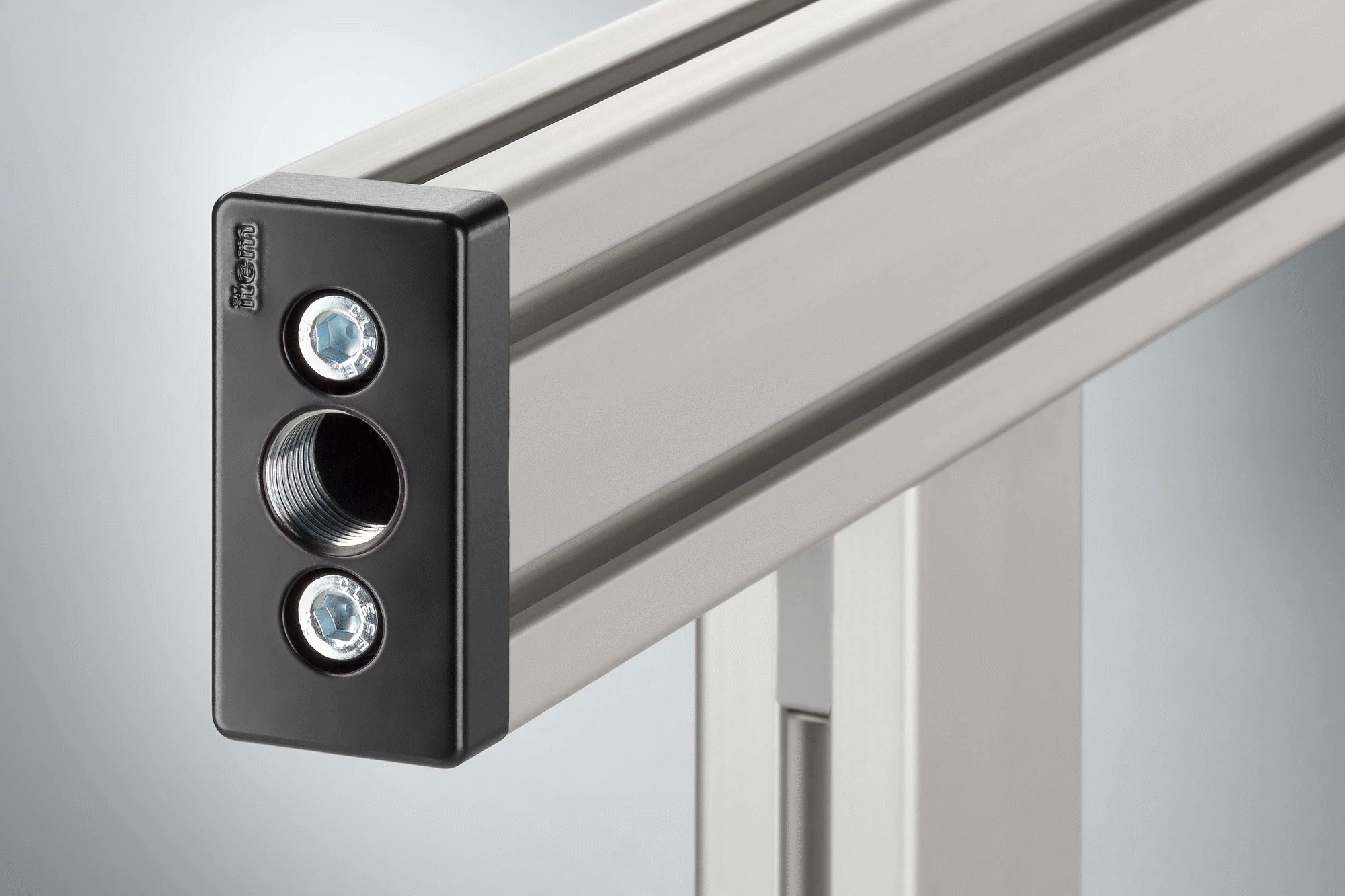

Pneumatic Connecting Plate 8 80×40 G1/2, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 230 g |
| Delivery unit | 1 pce. |
| Material | Die-cast zinc |
| Colour | black |
Pneumatic Connecting Plates are employed for connecting compressed-air supply systems or compressed-air consumers to Profiles 8 80x40 and 80x80. The Connecting Plate is attached by means of Button-Head Screws ISO 7380-M8x20 (M = 25 Nm) fitted into the core bores in the end faces of the profile. Pneumatic Universal-Fastening Sets are employed for connecting profiles used as compressed-air conduits.
