Partition Foot Set 8 400×4

1 Partition Foot 8 1 Countersunk Screw DIN 7991 M8x16, bright zinc-plated

Art. no: 0.0.732.46 Categories: , Tag:
Set CAD-format
Partition Foot Set 8 400×4CADPDFRFQ

Preview

Scope of Delivery

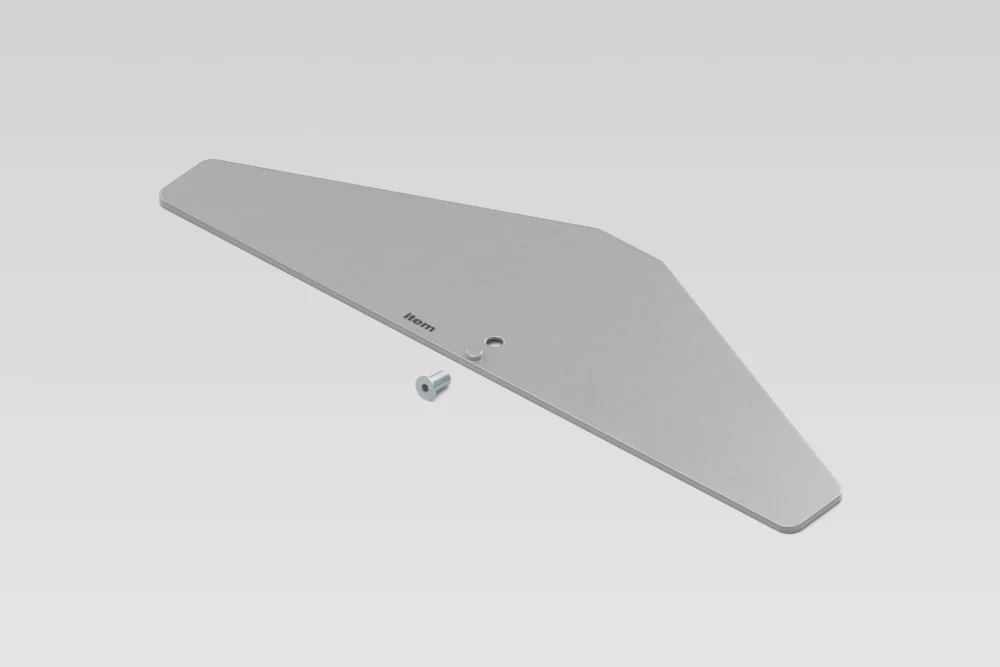

1 Partition Foot 8, St 1 Countersunk Screw DIN 7991 M8x16, bright zinc-plated

Properties

TorqueM = 25 Nm
line 8line 8
ESD-safeNo
Weightm = 2.1140000000000003 kg
Delivery unit1 set
cleanroom suitabilityNo
Presentation2026-03-24T00:00:00

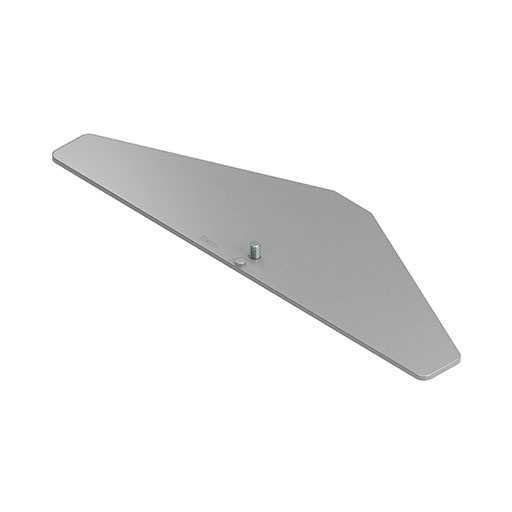

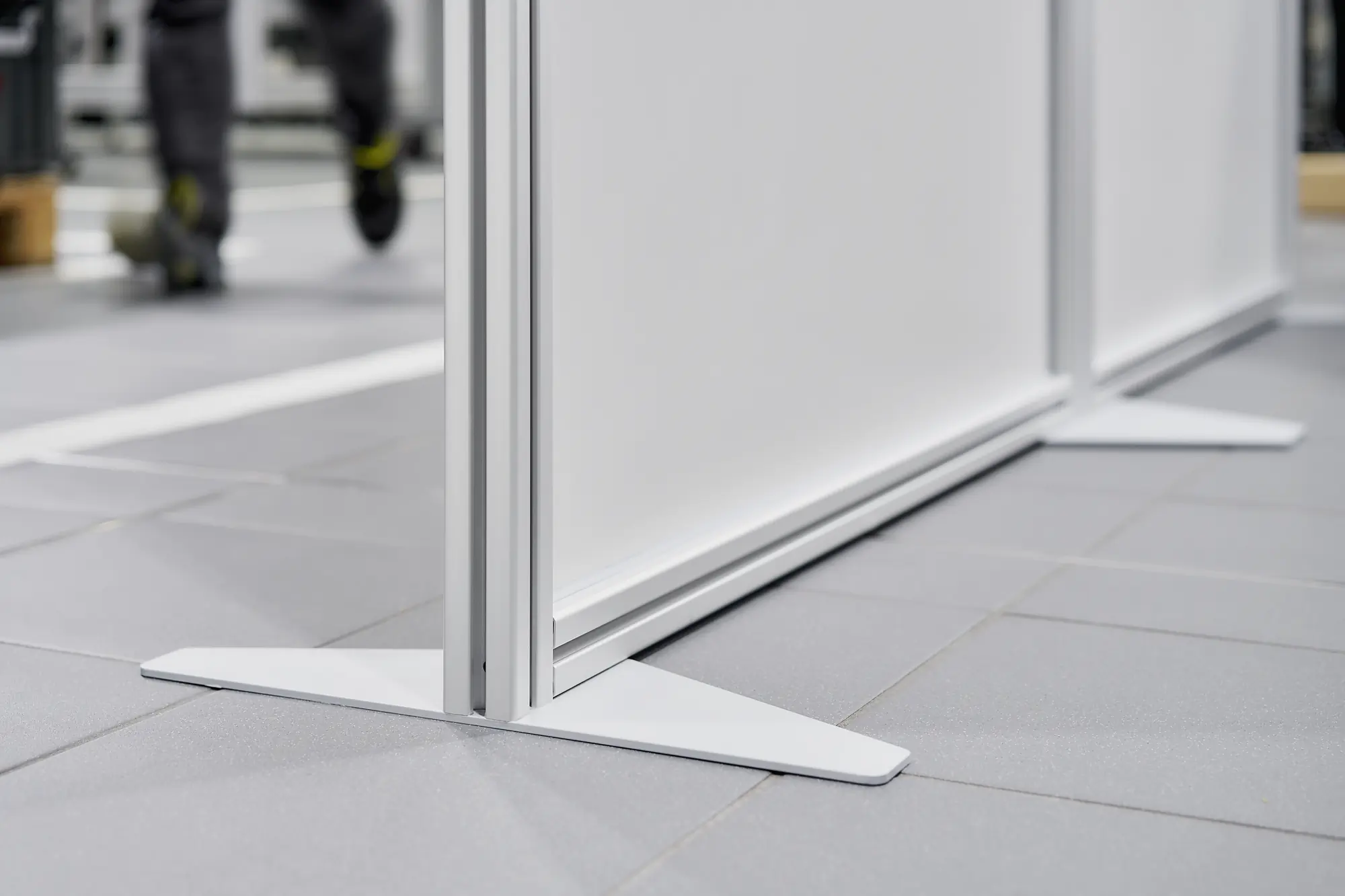

Partition Foot Set 8 400x4 is a trapezoidal foot for use with dividing walls or notice boards. Two of these feet provide a stable base for an element up to 2000 mm in height, ensuring it won’t tip over. For health and safety purposes, the foot is exceptionally low to the ground. Connected Line 8 profiles are secured against twisting and can be fitted either vertically or horizontally. The long edge of the floor element fits flush with the outer edge of a Profile 8 40x40. That means several partition elements can be installed flush alongside each other.
