Parallel Fastener D30

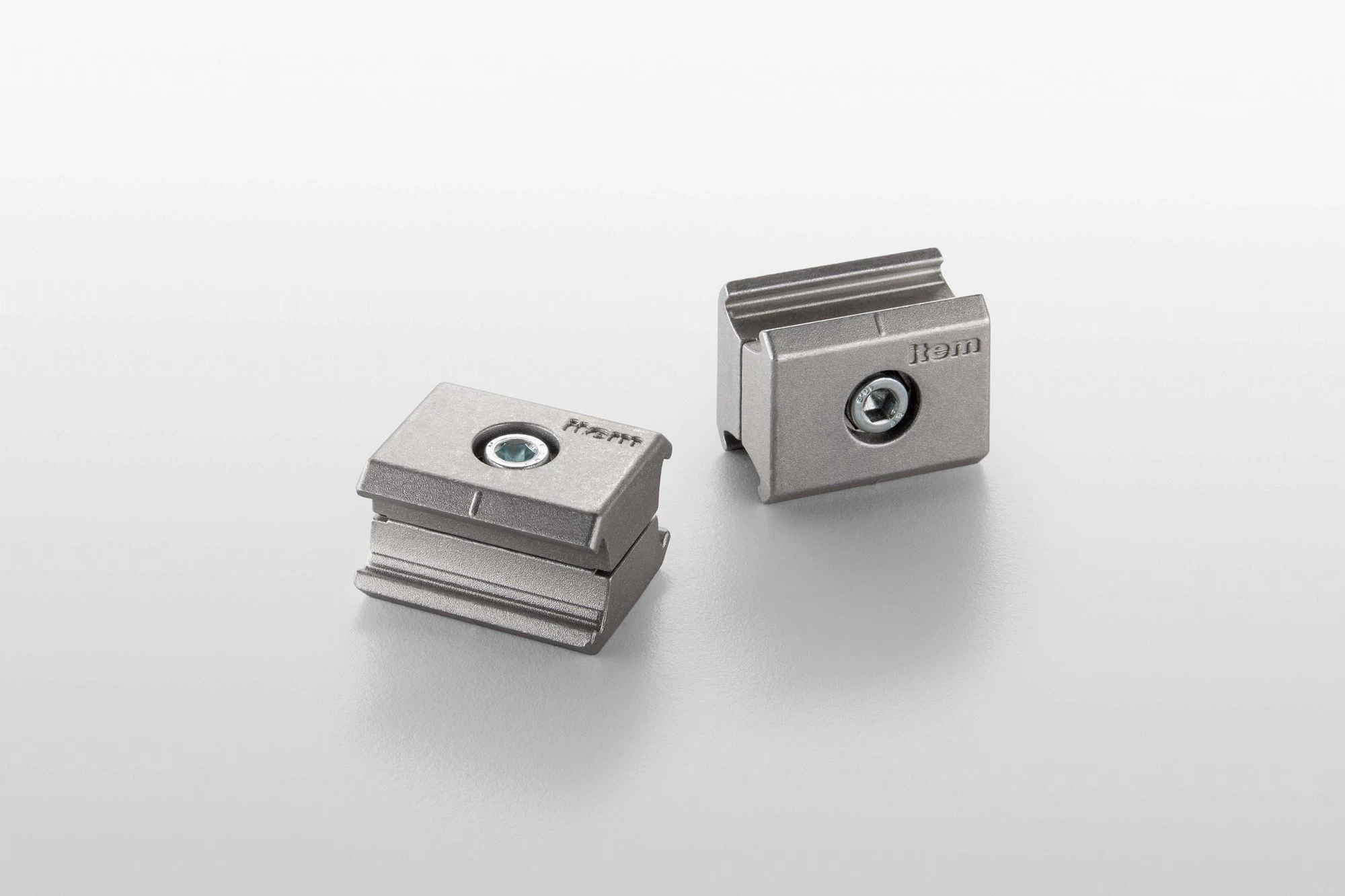

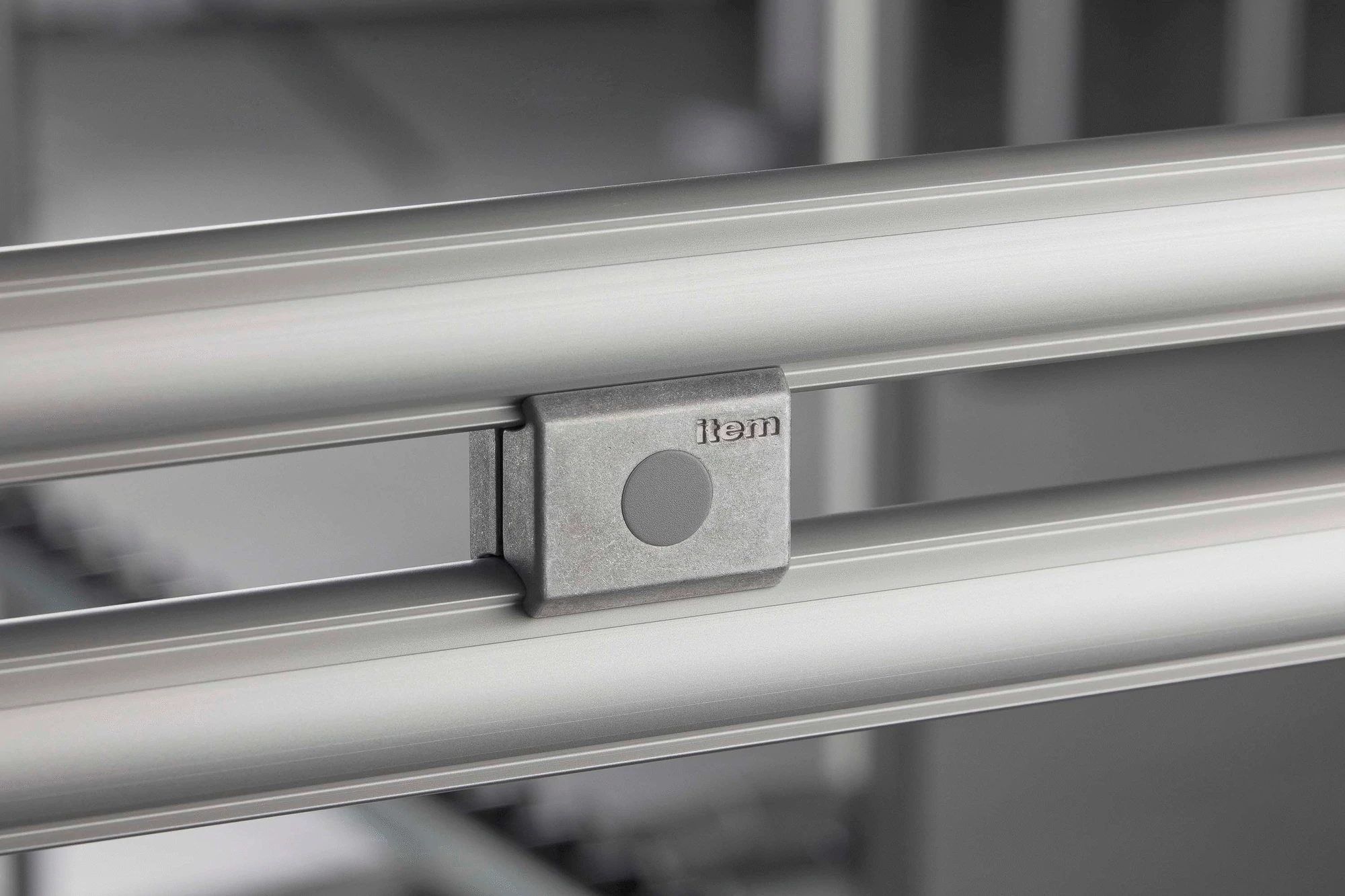

Parallel Fasteners are the basis for especially rigid structures. They connect two parallel Profile Tubes D30 to form one strong unit. They are also used to fasten attachments with a profile contour. Compact Parallel Fastener D30 helps keep the gap between the profiles small, while the larger Parallel Fastener D30-60 produces a gap of 30 mm that fits perfectly with the modular dimension and with Double Profile Tube D30-60. Parallel Fastener D30-60 with Clamp Lever can be used to build temporary structures. Its integrated lever means the fastener can be quickly tightened and then loosened again. It can also be used as a practical marker, ensuring the position of a strut or accessory part can be quickly found again when modifying structures. Parallel Fasteners are supplied preassembled and are ready for immediate use. If required, the screw connection of the fastener can be covered over with Cap D30 F.

The diagram shows the permitted load in relation to support span a. It is based on the maximum permissible deflection set by item, which is 1/100 of the support span. When designing rack structures, please observe the limit values set out in the relevant statutory regulations (e.g. DGUV regulation 108-007 in Germany).
