| Parabolic Buffer M10 D50x58, black | CADPDFRFQ |
Preview
Parabolic Buffer M10 D50x58, black
Hardness 55 Sh A Steel insert, St a = M10 b = ⌀ 50 mm c = 58 mm
Scope of Delivery
Hardness 55 Sh A Steel insert, St a = M10 b = ⌀ 50 mm c = 58 mm
Properties
| ESD-safe | No |
|---|---|
| Thread | M10 |
| Weight | m = 103 g |
| Hardness | 55 |
| Force max | Fmax. = 1057 N |
| Delivery unit | 1 pce. |
| Material | NBR |
| Colour | black |
Rubber-metal elements for absorbing impacts. Resistant to oil, water, sea water and road salt solutions. Partially resistant to soap solutions, vegetable fats and animal fats. It can also be used as a simple, damping foot.

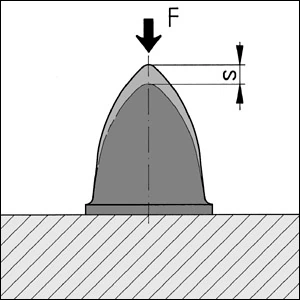

Parabolic Buffer with approximately exponential force profile.
