Panel Holder D30 2-5mm, grey similar to RAL 7042

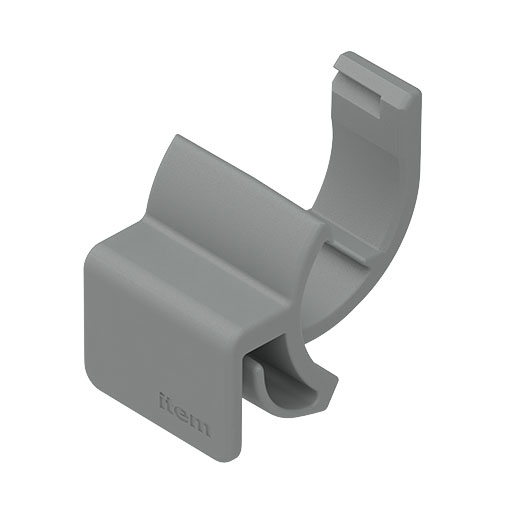

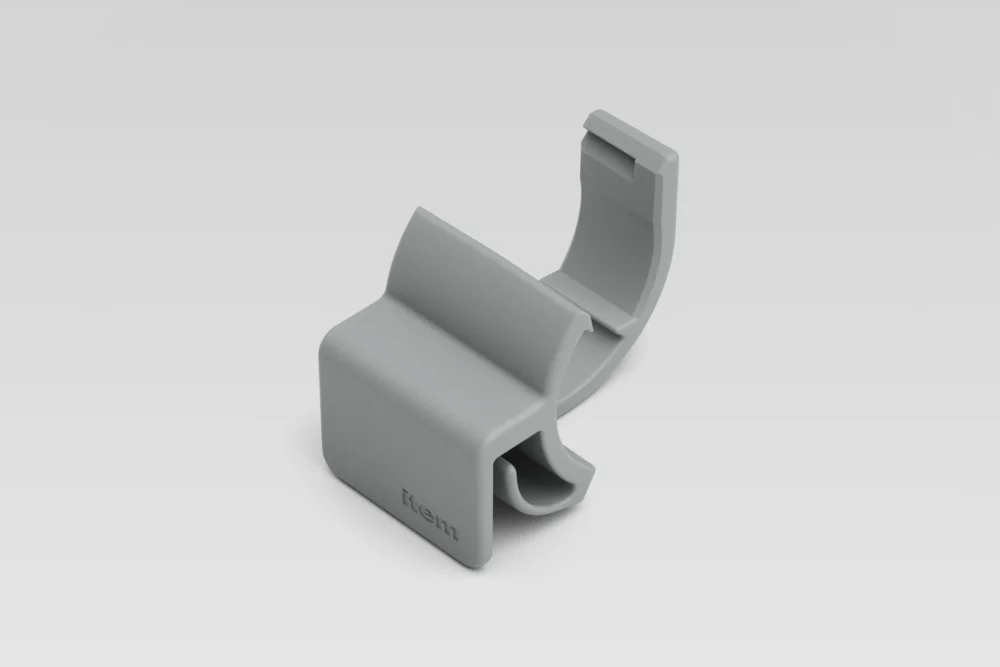

Panel Holder D30 2-5mm is a fixing for attaching cladding to frames made of Profile Tubes D30. The holder supports rapid assembly because it allows users to fit in place panel elements without having to trim their corners, make any screw fixings or carry out any other machining. Panel Holders positioned on vertical and horizontal profiles work together to support an inherently stable panel measuring 2 to 5 mm thick. The panel element is held in front of the profile frame. This means frames can be clad even when they incorporate diagonal struts as bracing.

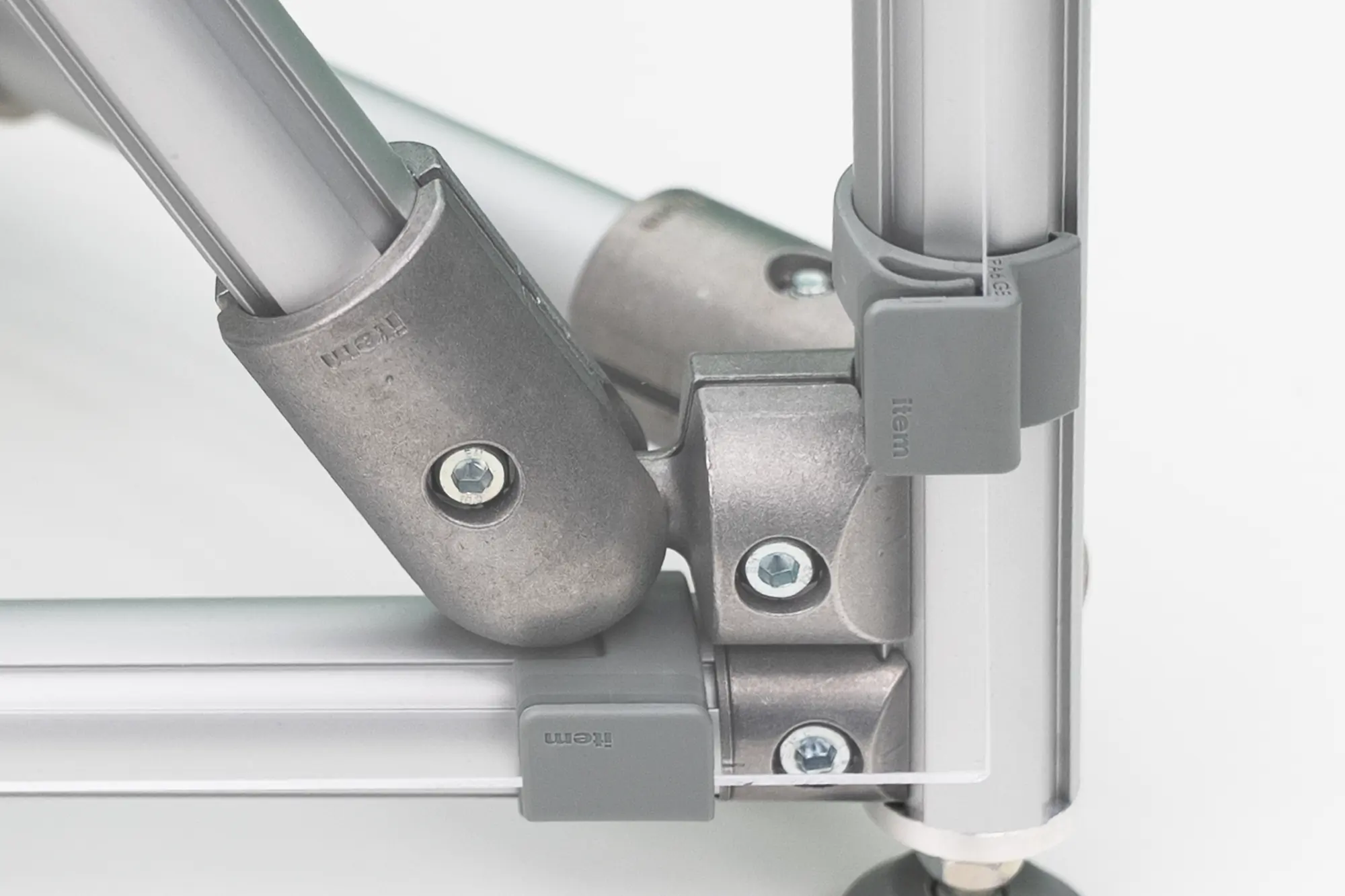

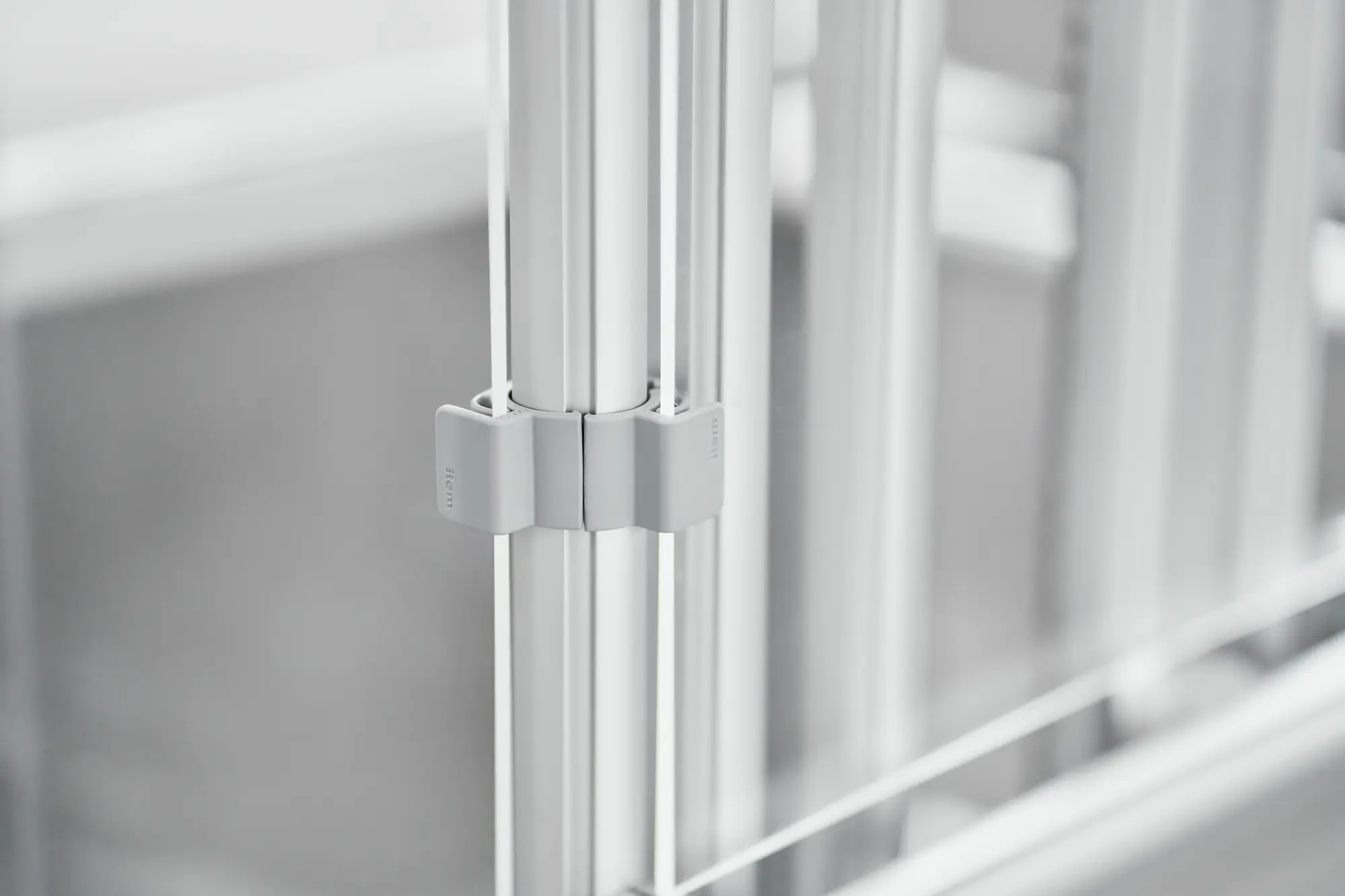

Two Panel Holders D30 can be fitted at a 90° angle to each other at the same point on a corner profile. This ensures constructions can be clad around corners. Panel elements can be installed upright or lying flat. Panel Holder D30 is not suitable for use with panels that need to carry loads, such as working surfaces and steps.

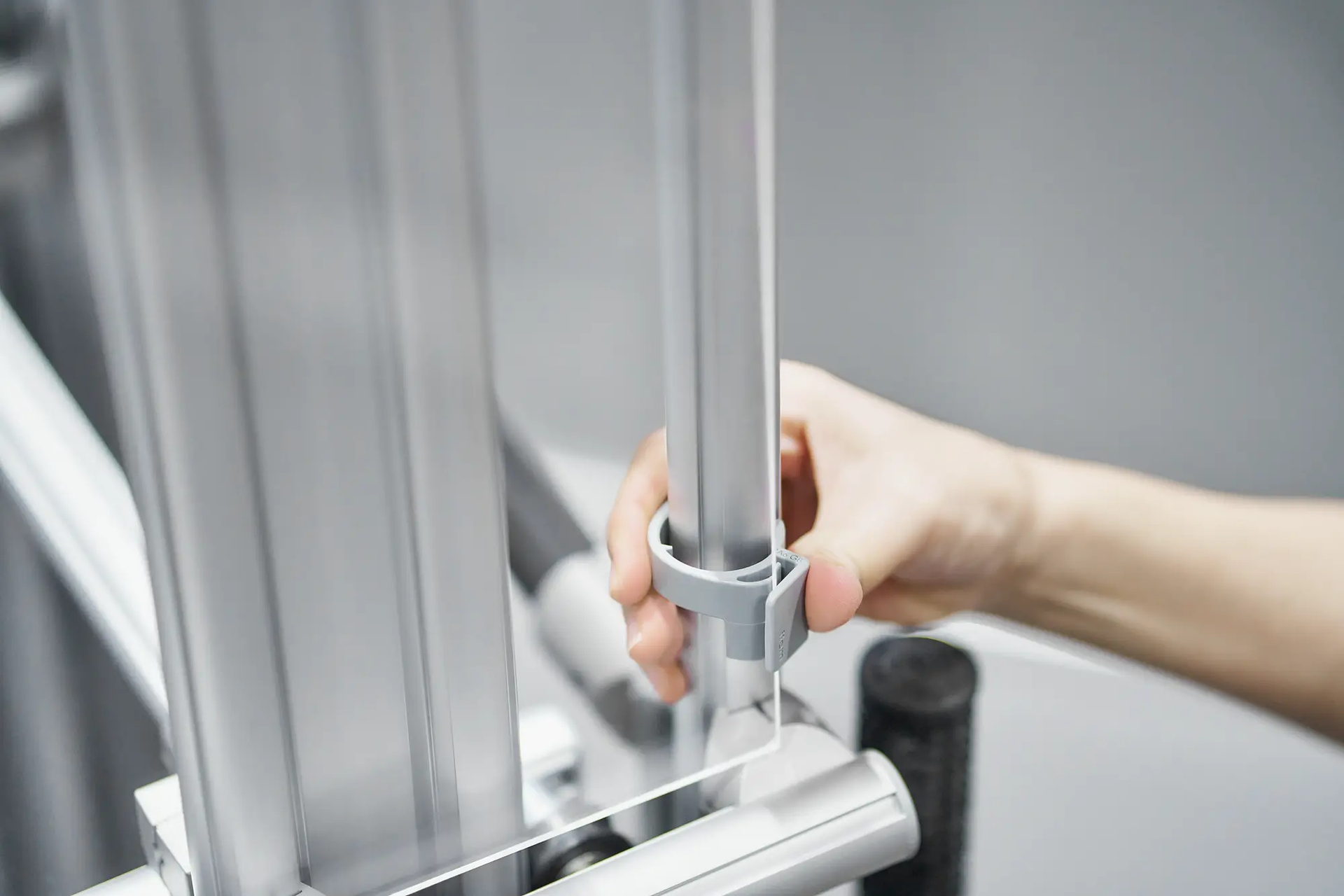

To install Panel Holder D30 2-5mm, twist it onto a Profile Tube D30 to clip into place. This makes it easy to install even the very last holders needed to secure a panel element in place.
