Panel-Clamping Strip 8 4-6mm ESD, black

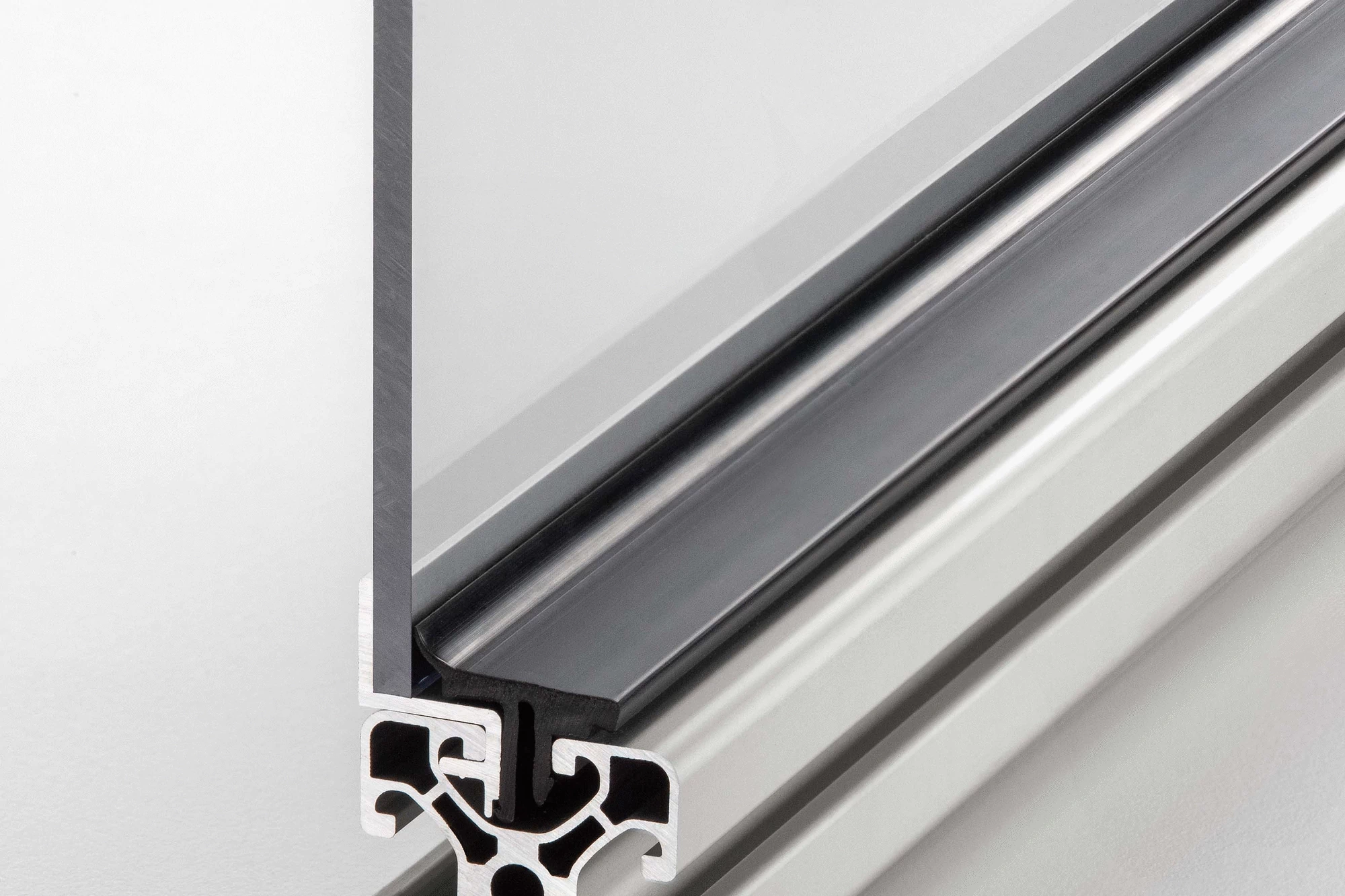

Comprehensive ESD safety for panels! Panel-Clamping Strip 8 4-6mm ESD is electrostatically dissipative and is best used to secure ESD-safe panel elements such as Polycarbonate 5mm ESD (0.0.689.81) in a closed profile frame. The panel fixing comes in two parts. First, the aluminium Panel-Clamping Strip 8 Al (0.0.495.05) is inserted into the profile groove to locate the panel at the edge of the profile with a slight offset. Second, the elastic Panel-Clamping Strip 8 4-6mm ESD is pressed into place at the rear to hold the panel element and fix the aluminium strip in the groove. This creates a mechanically locked, smooth-surfaced outer wall for protective enclosures. Note: It is advisable to use Standard-Fastening Set 8 ESD, one-sided (0.0.673.00) or Standard-Fastening Set 8 K ESD (0.0.625.33) in the profile frame so that the panel element and Panel-Clamping Strips don’t need to be machined at the corners.
