| Multiblock 8 Zn | CADPDFRFQ |
Preview
Multiblock 8 Zn
Basic unit and locating lug, die-cast zinc, black Square nut DIN 557-M6, St, bright zinc-plated Leaf spring, St, stainless
Scope of Delivery
Basic unit and locating lug, die-cast zinc, black Square nut DIN 557-M6, St, bright zinc-plated Leaf spring, St, stainless
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Thread | M6 |
| Weight | m = 66 g |
| Force max | Fmax. = 2000 N |
| Delivery unit | 1 pce. |

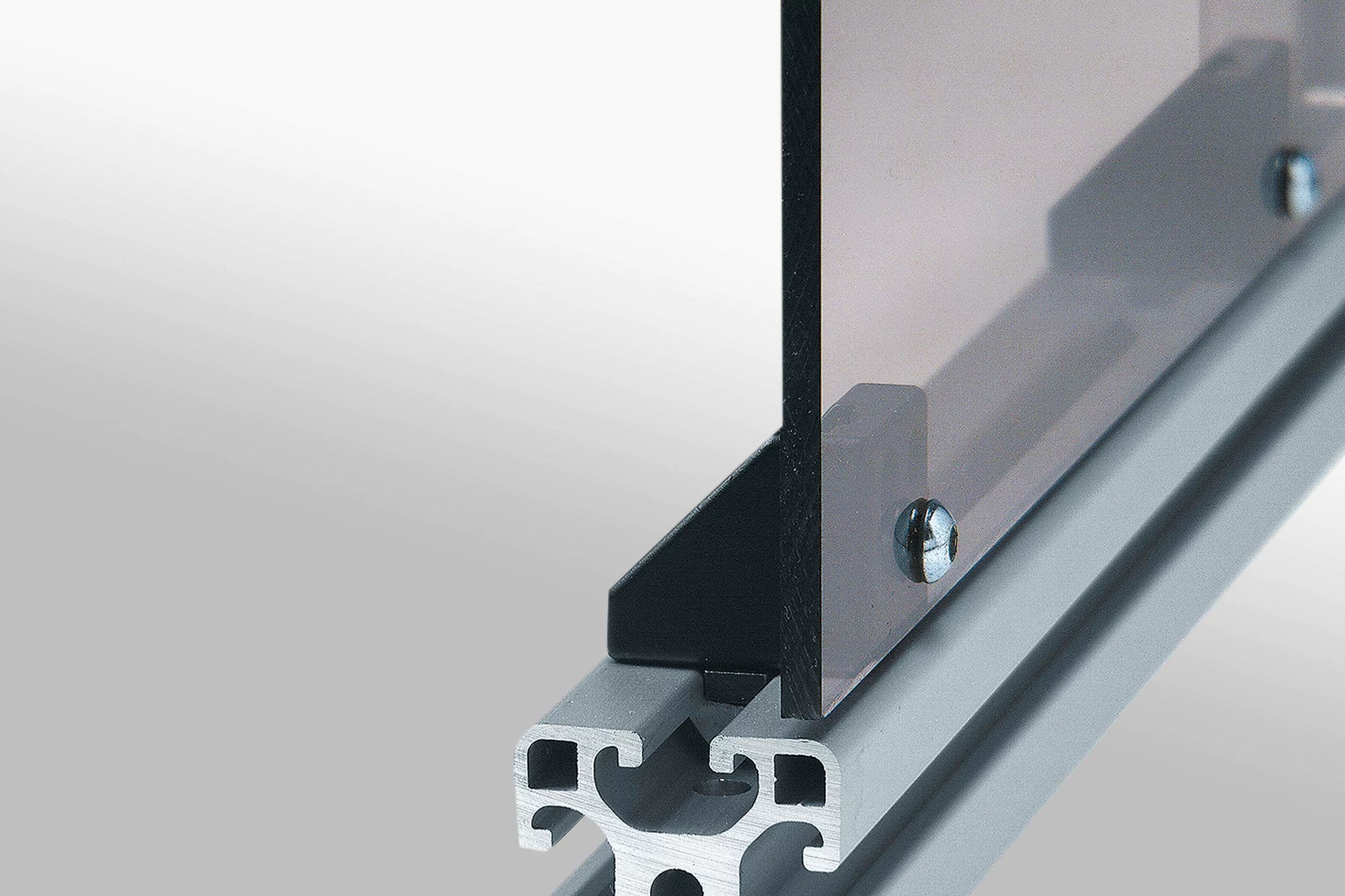

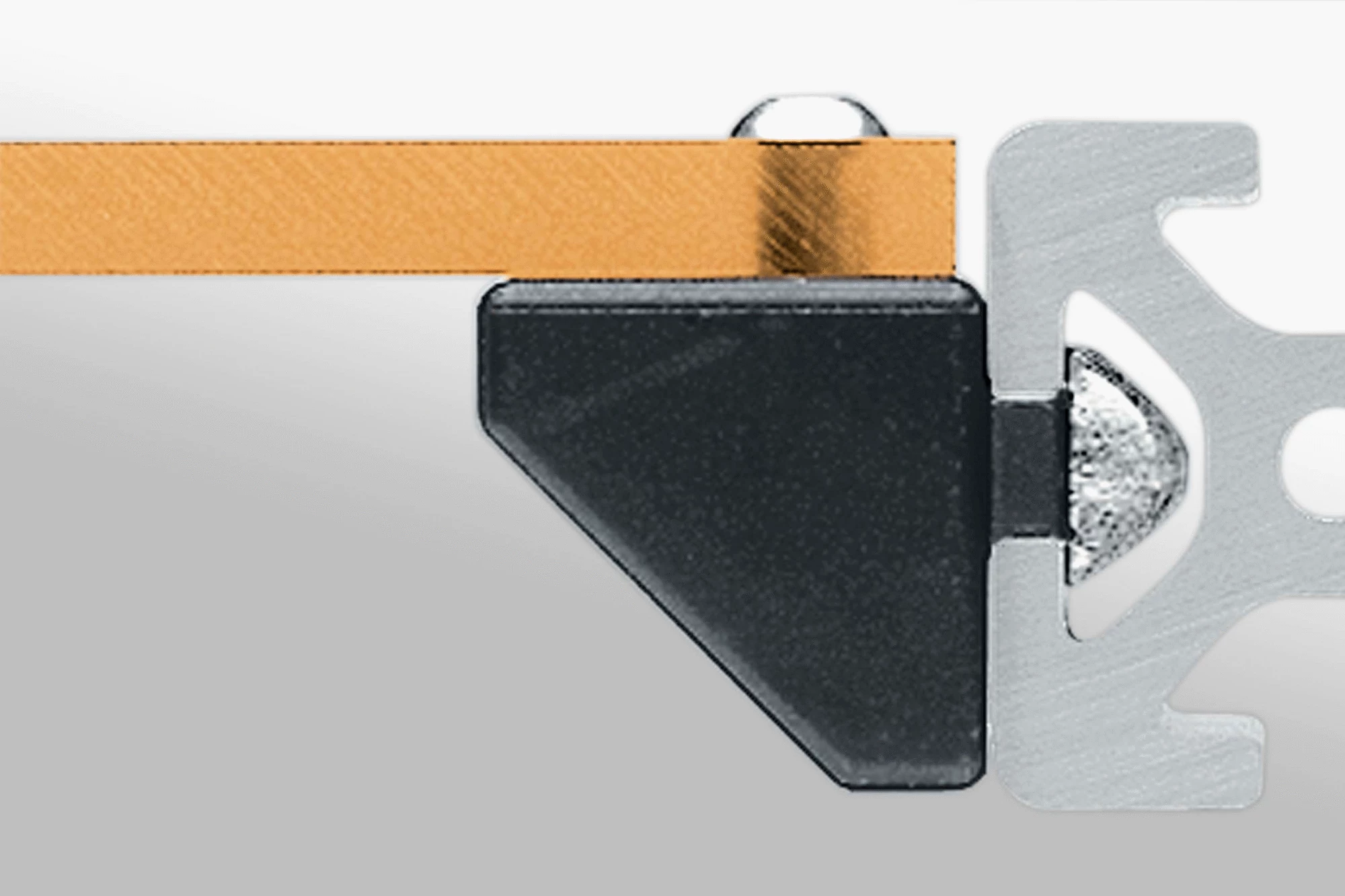

For fixing panel elements to profile grooves, particularly where heavy loads are involved. Multiblock Zn is screwed to the profile groove with a screw and T-Slot Nut. The anti-torsion pin, which is adjustable in millimetre increments, ensures flush attachment for panels of different thicknesses. The panel elements must be drilled in the appropriate position to line up with either the through bore or the square nut (which is secured against falling out by a leaf spring) incorporated in the Multiblock.

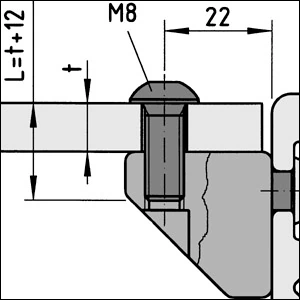

To attach a panel element with an M8 screw from above, an M8 thread must be cut into the Multiblock core bore.

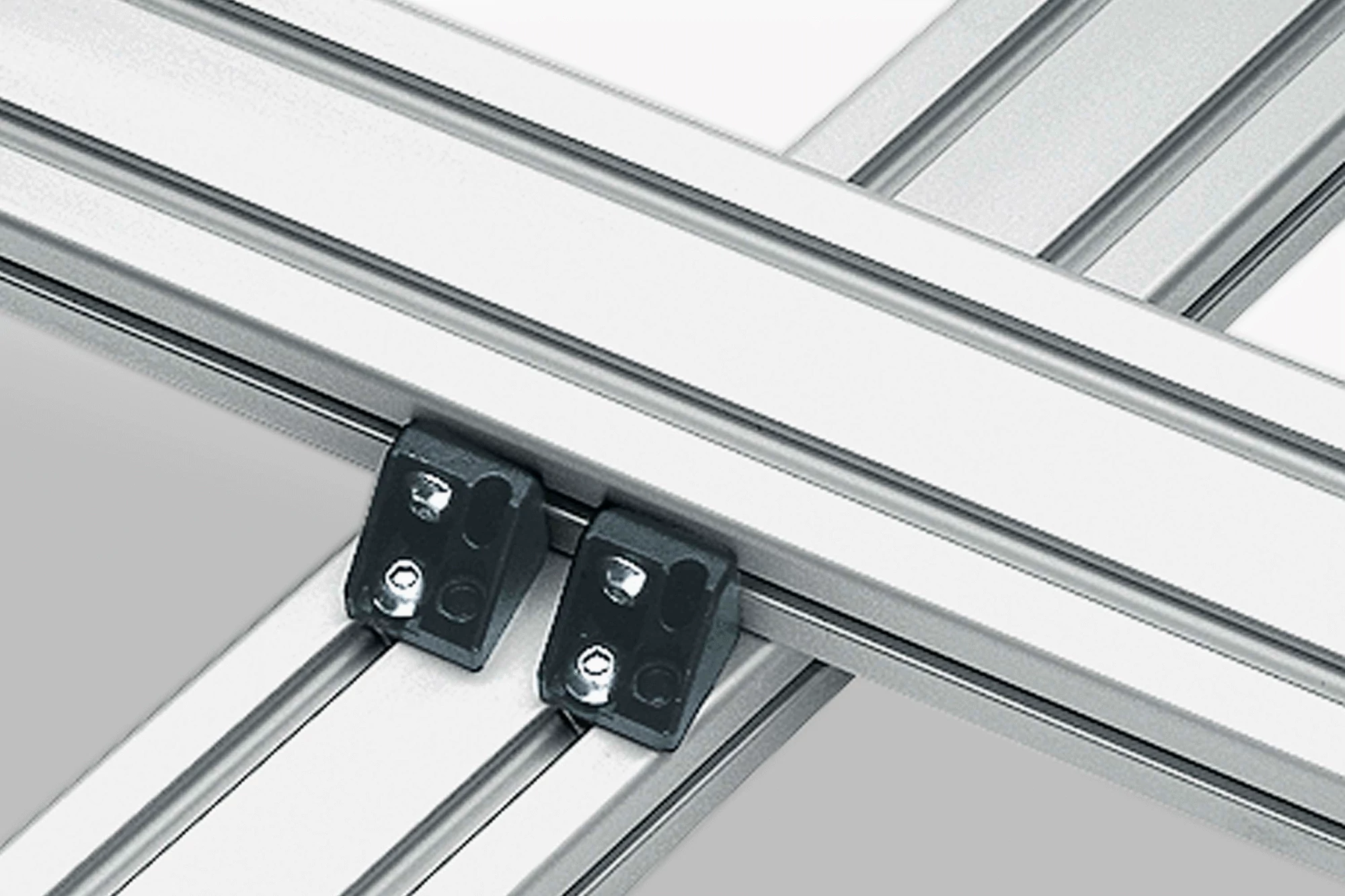

Recommended mounting arrangement and load data across and along the groove.
