| Set CAD-format | ||
|---|---|---|
| Multi-Segment RGB Light IO-Link 480 | CADPDFRFQ |
Preview
Multi-Segment RGB Light IO-Link 480
1 Multi-Segment RGB Light IO-Link 480 1 fastening set
Scope of Delivery
1 Multi-Segment RGB Light IO-Link 480 1 fastening set
Properties
| Operating voltage | 24 |
|---|---|
| ESD-safe | No |
| Weight | m = 436 g |
| Ambient temperature (during operation) | 0 °C … +50 °C |
| Protection class | IP 67 |
| Interfaces | IO-Link (V1.1) |
| Power | P = 9.1 W |
| Delivery unit | 1 pce. |
| Material | Al, anodized, natural |
| Current consumption | 380 mA |

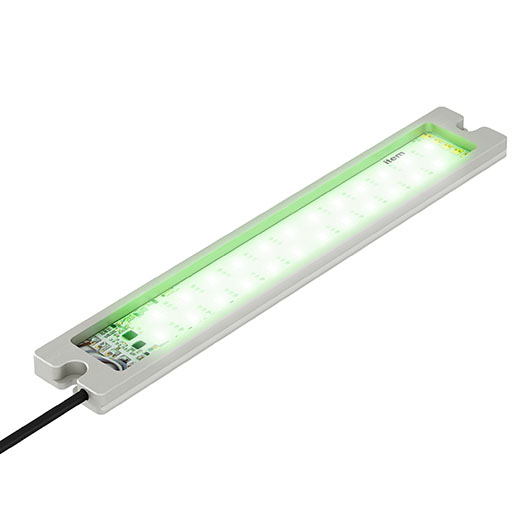

Multi-Segment RGB Light IO-Link 480 is a signalling and status light with a bright LED light. Parametrisation is carried out via IO-Link. Light functions such as colours, separate control of the six segments, brightness and the flashing behaviour of individual LED segments can be freely set. Several colours and flashing patterns can also be actuated via trigger inputs, without needing to use IO-Link. Diffusor 480 (0.0.720.78) can be fitted as a cover.
