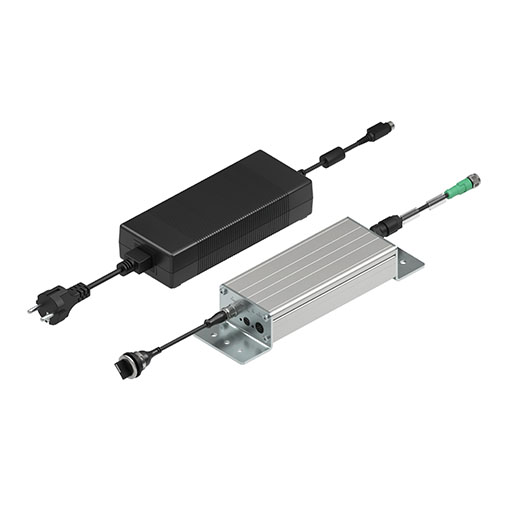

Motor ST NEMA24 StarterKit
1 DC-DC Converter 48V/24V 1 Power Supply 48V 4.6A with connecting cable 1 Connector M12 4P Male, A-coded 1 Selector Switch M22 1NO 1NC M12, Male Connector, A-coded 1 Sensor/Actuator Connection Cable 5m M12 4P, Female Connector, A-coded
Scope of Delivery
1 DC-DC Converter 48V/24V 1 Power Supply 48V 4.6A with connecting cable 1 Connector M12 4P Male, A-coded 1 Selector Switch M22 1NO 1NC M12, Male Connector, A-coded 1 Sensor/Actuator Connection Cable 5m M12 4P, Female Connector, A-coded
Properties
| Output voltage | 48/24 V DC |
|---|---|
| Output current | 1A/24 V DC + 4A/48 V DC |
| Input voltage | 58...264 V AC |
| Input current | 4A/115 V AC + 2A/230 V AC |
| ESD-safe | No |
| Nominal frequency | fn = 50/60 Hz |
| Weight | m = 2.5420000000000003 kg |
| Ambient temperature (during operation) | +10 °C … +40 °C |
| Power | 220 |
| Delivery unit | 1 set |
| cleanroom suitability | No |
| Presentation | 2026-03-24T00:00:00 |
Motor ST NEMA24 StarterKit contains all the electrical components needed to connect up Integrated Motor ST NEMA24 -310-48-T1 (0.0.703.45). The StarterKit comprises the following components: * Power Supply 48V 4.6A (resistant to feedback voltage) * DC-DC Converter 48V/24V for supplying power to the 24 V controller and 48 V stepper motor * An enable switch for safely starting up and shutting down the motor * All necessary cables
The StarterKit is a plug-and-play solution for safeguarding the electrical connection of Integrated Motor ST NEMA24 and its controller. The safely encased components can be fastened to profile grooves or stowed in a cable conduit. As a result, they don’t need a separate enclosure and don’t have to be wired up by an electrician. The stepper motor and integrated controller use different operating voltages – 48 V and 24 V respectively. As the StarterSet includes DC-DC Converter 48V/24V, all you need to start using the intelligent stepper motor is the power supply unit, which is also included. Motor ST NEMA24 StarterKit is resistant to feedback voltage caused by manual movement of the motor. The supplied enable switch also provides added safety for users because it is only after this is actuated that power is fed to the stepper motor.
