| Monitor Mounting Joint 8 VESA 75-100 | CADPDFRFQ |
Preview
Monitor Mounting Joint 8 VESA 75-100
Adapter Plate, PA-GF, black 4 Hinge 8 fixing elements Button-Head Screw M8x16, St, bright zinc-plated Button-Head Screw M8x30, St, bright zinc-plated Hexagon nut DIN 934 M8-I8I T-Slot Nut 8 St M8 2 disc springs DIN 2093 A16 4 Hexagon Socket Head Cap Screws DIN 7984 M4x12, St, bright zinc-plated 4 washers DIN 433, diameter 4.3, bright zinc-plated
Scope of Delivery
1 Adapter Plate, PA-GF, black 4 Hinge 8 fixing elements 1 Button-Head Screw M8x16, St, bright zinc-plated 1 Button-Head Screw M8x30, St, bright zinc-plated 1 Hexagon nut DIN 934 M8-I8I 1 T-Slot Nut 8 St M8 2 disc springs DIN 2093 A16 4 Hexagon Socket Head Cap Screws DIN 7984 M4x12, St, bright zinc-plated 4 washers DIN 433, diameter 4.3, bright zinc-plated
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 230 g |
| Delivery unit | 1 set |

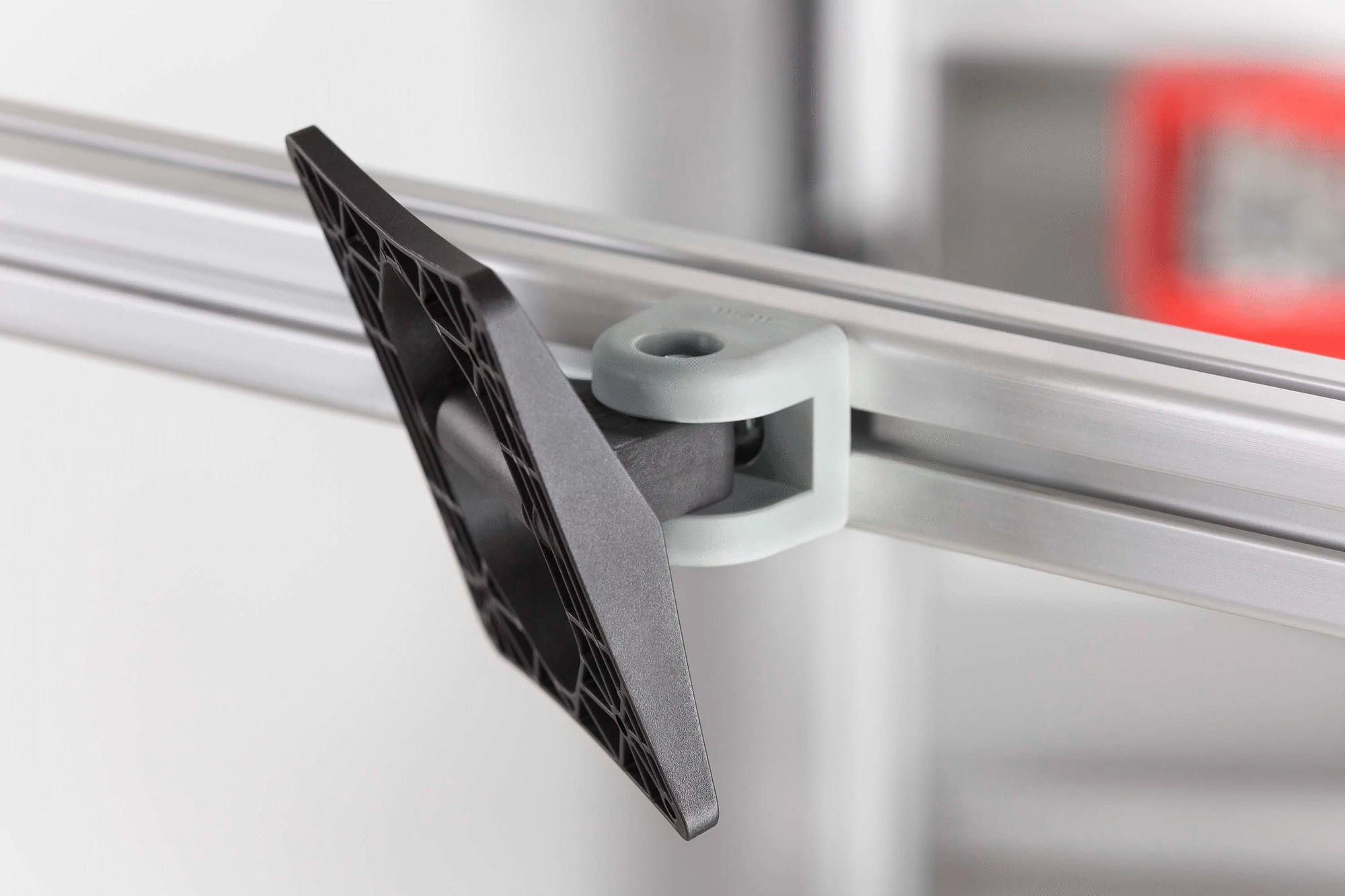

Strong support for all: Pivoting Monitor Mounting Joint 8 VESA 75-100 secures flatscreen monitors directly to profile constructions with a Line 8 groove. The Adapter Plate fits displays with a VESA-75 or VESA-100 connection. The two friction joints ensure users can adjust monitors weighing up to around 11 kg horizontally and vertically to achieve the ideal viewing angle. Monitor Mounting Joint D30 VESA 75-100 (0.0.671.22) is used to connect to Profile Tubes D30 from the Lean Production Building Kit System.
The two friction pivot axes ensure users can adjust monitors weighing up to 11 kg horizontally and vertically to achieve the ideal viewing angle.
Bei der Montage ist auf die richtige Einbaulage der Adapterplatte zu achten.
