| Monitor Adapter 8 VESA 75-100 PA | CADPDFRFQ |
Preview
Monitor Adapter 8 VESA 75-100 PA
Adapter Plate, PA-GF, black 2 anti-torsion lugs, die-cast zinc, bright zinc-plated 4 screws M4x12, St, bright zinc-plated 4 washers ⌀4.3, bright zinc-plated 2 Hexagon Socket Head Cap Screws M8x16, St, bright zinc-plated 2 hexagon nuts M8, St, bright zinc-plated
Scope of Delivery
1 Adapter Plate, PA-GF, black 2 anti-torsion lugs, die-cast zinc, bright zinc-plated 4 screws M4x12, St, bright zinc-plated 4 washers ⌀4.3, bright zinc-plated 2 Hexagon Socket Head Cap Screws M8x16, St, bright zinc-plated 2 hexagon nuts M8, St, bright zinc-plated
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 150 g |
| Delivery unit | 1 set |

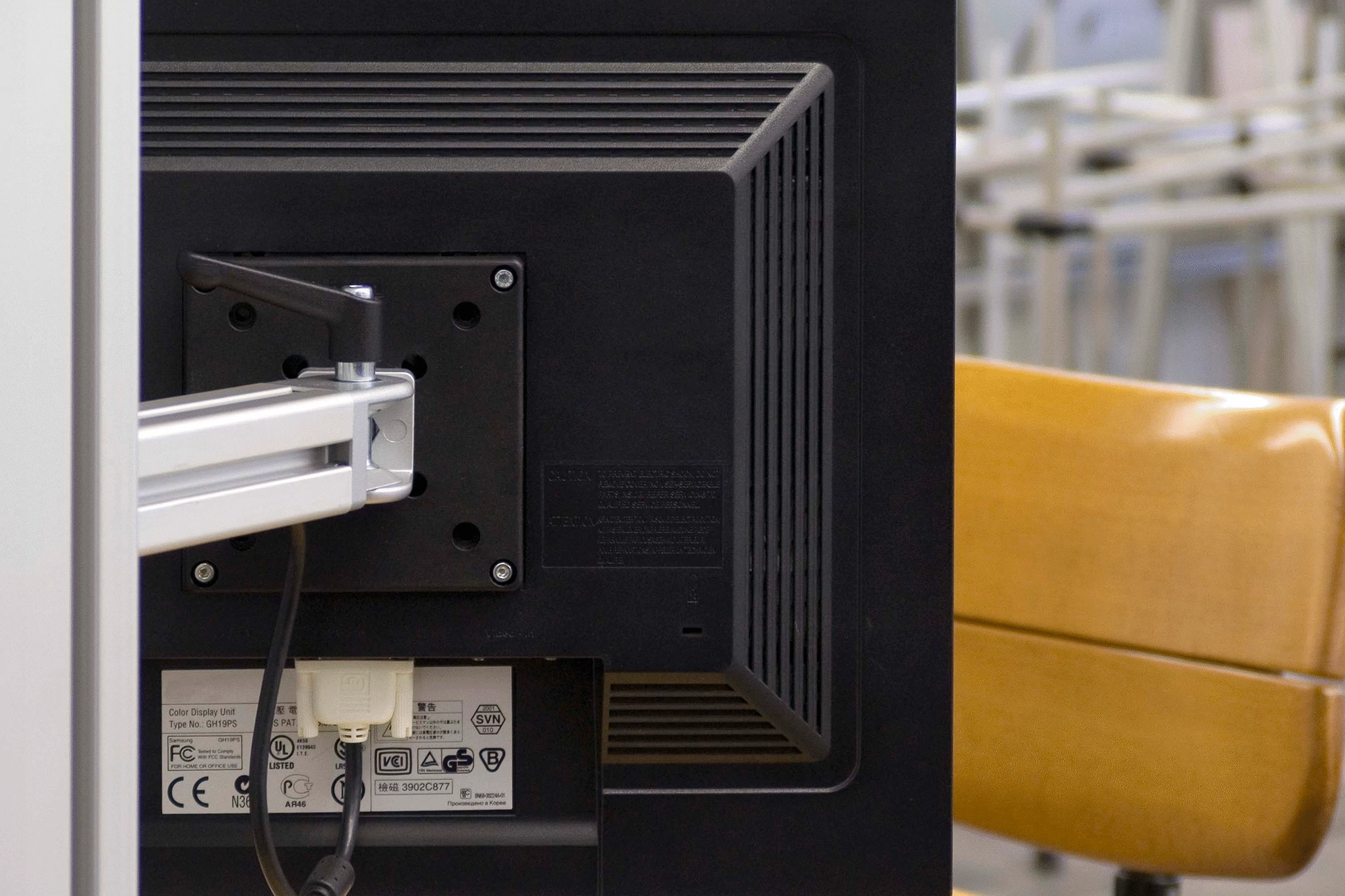

The Monitor Adapter enables flatscreens to be installed (with standard fastening VESA 75 or 100) on work bench systems or production control stations. The connection geometry employs the modular dimension of Line 8 profiles and thus enables use of typical fastening elements (Line 8 profiles, Hinge 8 40x40 heavy duty, etc.). Optional anti-torsion features mechanically lock the set position. Monitor Adapter 8 VESA 75-100 PA is manufactured from ESD plastic, which prevents electrostatic charges from building up and enables a slow rate of discharge to protect sensitive components.
Maximum permissible load of Monitor Adapter 8 VESA 75-100 PA: F max. = 120 N Screws M8: M max. = 8 Nm Screws M4: M max. = 3 Nm
