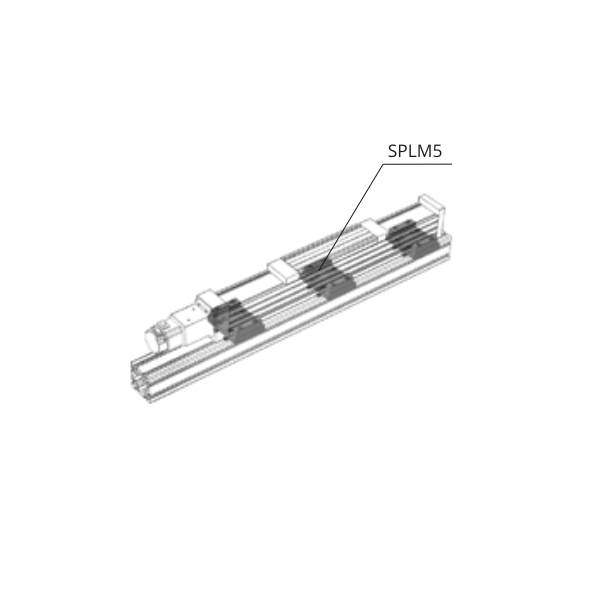

LM5 – Clamp Line Tech

Name: LM5 - Clamp Line Tech » AluFlex Group
SKU: SPLM5

Clamp Line Tech

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote

Art. no: SPLM5 Category: Fastening Elements Tag: Configurable

CAD
Technical information

Set CAD-format
LM5 – Clamp Line Tech		CADPDFRFQ

Preview

Product Attributes	Values
D	40
B	132
C	150
H	14
J	19,7
E	70
F	108
G	28
A	110
I	8,5
