LM3ZR-NZ Toothed belt drive (Without protection)

LM3 Linear Module employing a high-efficiency belt drive system. Comes integrated with a single ball rail guide for exceptional positioning and repetition accuracy. Options for complete motor assembly available on demand.

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: Linear Module LM3ZR-NZ Categories: , Tag:
Set CAD-format
Linear_Module_LM3_No_Protection_New

Preview

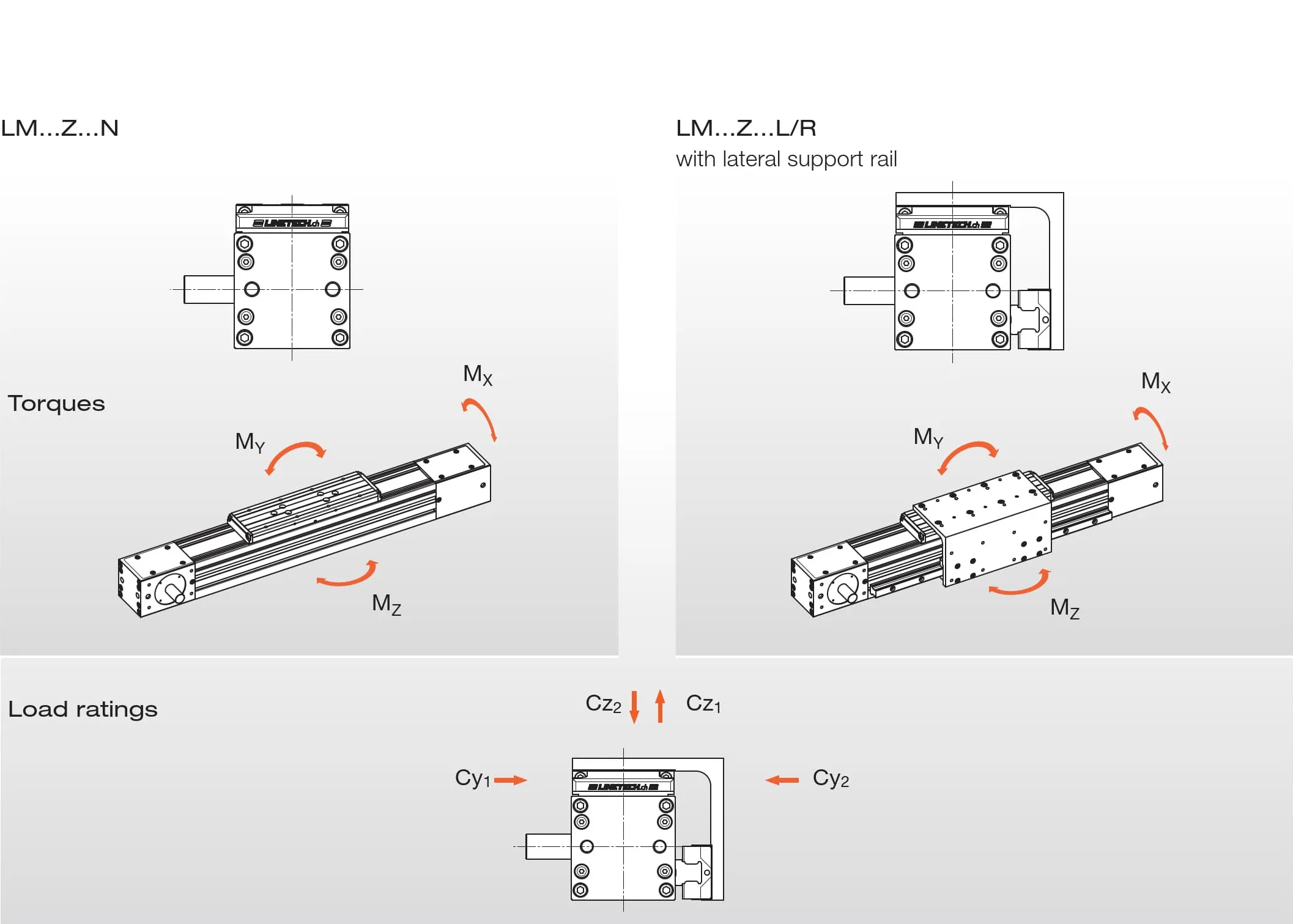

Linear Module Maximum permissable load [kN] Maximum permissable torque [Nm]
Type static dynamic static dynamic
Cy 1.2 Cz 1.2 Cy 1.2 Cz 1.2 Mx My Mz Mx My Mz
 LMR3...Z...N 35.0 35.0 18.0 18.0 286 1185 1185 160 923 923
 LMR3...Z...L/R 70.0 70.0 36.0 36.0 1457 2610 2610 808 1998 1998
 LMR4...Z...N 59.9 59.9 34.2 34.2 646 2484 2484 400 2130 2130
 LMR4...Z...L/R 119.9 119.9 68.4 68.4 3030 4772 4772 1868 4115 4115
 LMR5...Z...N 85.0 85.0 49.6 49.6 1080 6115 6115 684 5170 5170
 LMR5...Z...L/R 170.0 170.0 99.2 99.2 3356 12513 12513 2136 10541 10541

Art No. A B C D E F G H I J
SPLM32R/KGT 65 81 95 40 50 78 19.5 11 6.5 13.2
SPLM42R/KGT 80 96 110 40 50 78 23.0 11 6.5 16.7
SPLM52R/KGT 110 132 150 40 70 108 28.0 14 8.5 19.7





Normal Size Dimensions
Designation L Lm Belt length Weigth
mm mm mm kg
LM3...NZ...N Stroke +435 L - 190 2 x Stroke + 730 4.50 kg + 0.60 kg/100 mm stroke
LM3...NZ...L/R Stroke +435 L - 190 2 x Stroke + 730 5.94 kg + 0.73 kg/100 mm stroke
