Linear Guide MSA25-EM

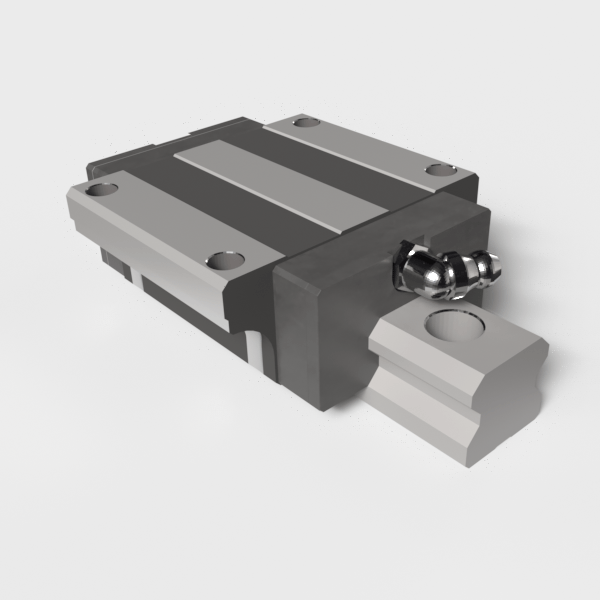

The MSA-E is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E). Fastening holes are accessible either from top (S1) or bottom (S2). The MSA-EM series is a stainless steel series of linear guide. Manufactured from high grade, corrision-resistant stainless steel, ensuring optimal performance in humid, or alkaline enviroments. Both rail and carriage is made out of the material SUS 440C. The MSA-Series is specially suited for high precision and high rigidity required motion, for normal and high load.

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: MSA25EM Category: Tag:
Set CAD-format
Linear_Guide_MSA_EM_Complete_Unit

Preview


Model Nr.  Basic Load Rating Static Moment Rating
Dynamic C N Static Co N MP Nm MY Nm Mr Nm
Single* Double* Single* Double*
MSA15EM 11 800 18 900 120 680 120 680 140
MSA20EM 19 200 29 500 230 1420 230 1420 290
MSA25EM 28 100 42 400 390 2200 390 2200 480


Model No. Rail Dimension  Weight
Width W1 Height H1 Pitch P E Std. E min D x h x d Fastening Bolt L0 Max Rail Kg/m
MSA15EM 15 15 60 20 5 7.5x5.3x4.5 M4 4000 1.5
MSA20EM 20 18 60 20 6 9.5x8.5x6 M5 4000 2.4
MSA25EM 23 22 60 20 7 11x9x7 M6 4000 3.4


Model no. Carriage Dimensions
B C Sxl
MSA15EM 38 30 M5x7
MSA20EM 53 40 M6x10
MSA25EM 57 45 M8x10


Model no.  External Dimensions
Height H Width W Lenght L W2 H2
MSA15EM 24 47 56.3 16 4.2
MSA20EM 30 63 72.9 21.5 5
MSA25EM 36 70 81.6 23.5 6.5

Model no.  Carriage Dimension  Weight
L1 T T1 T2 N G K d1 Grease Nipple Carriage kg
MSA15EM 39.3 7 11 7 4.3 7 3.2 3.3 G-M4x0.75 0.18
MSA20EM 51.3 7 10 10 5 12 5.8 3.3 G-M6x0.75 0.4
MSA25EM 59 11 16 10 6 12 5.8 3.3 G-M6x0.75 0.62
