| Limit-Switch Holder D6.5 | CADPDFRFQ |
Preview
Limit-Switch Holder D6.5
Housing and anti-torsion block, PA-GF, black Spring washer, St, black
Scope of Delivery
Housing and anti-torsion block, PA-GF, black Spring washer, St, black
Properties
| line 5 | line 5 |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 8 g |
| Delivery unit | 1 set |
For fastening Limit Switches to profiles or other components. When an anti-torsion block is not used, the Limit-Switch Holders can be secured to all profile Lines.

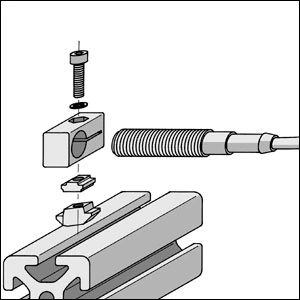

Limit-Switch Holders D6.5, D8 and D12 can be attached with anti-torsion blocks either parallel or at right-angles to the Profile 5 or Profile 8 groove. Fasten Limit-Switch Holders D6.5, D8 and D12 in place with a Hexagon Socket Head Cap Screw DIN 912-M4, spring washer and T-Slot Nut for the corresponding Line.
