Joining Plate Set 8 40 120×120 -90° L
1 Joining Plate, St, bright zinc-plated 5 Countersunk Screws DIN 7991 M8x16, St, bright zinc-plated 2 T-Slot Nuts V 8 St 2xM8-73, St, bright zinc-plated 1 T-Slot Nut V 8 St M8, St, bright zinc-plated
Scope of Delivery

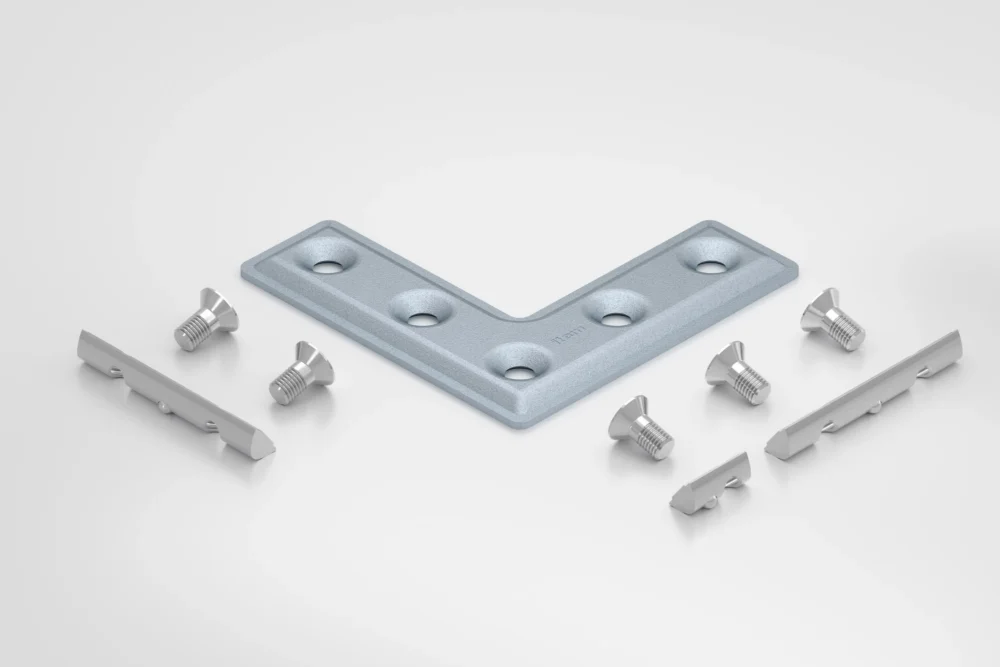

1 Joining Plate, St, bright zinc-plated 5 Countersunk Screws DIN 7991 M8x16, St, bright zinc-plated 2 T-Slot Nuts V 8 St 2xM8-73, St, bright zinc-plated 1 T-Slot Nut V 8 St M8, St, bright zinc-plated
Properties
| Torque | M = 25 Nm |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 253 g |
| Delivery unit | 1 set |

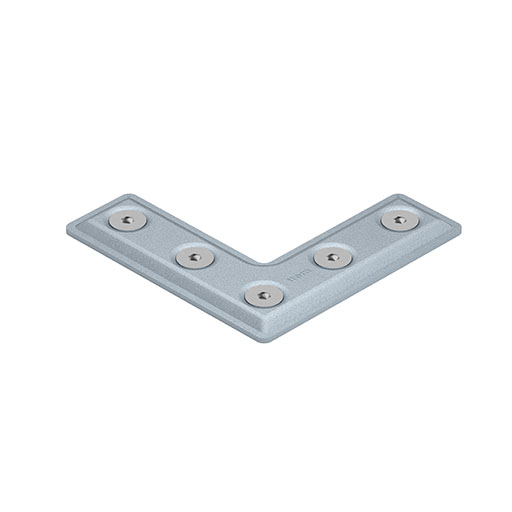

Joining Plate Set 8 40 120x120-90° L provides additional rigidity for a right-angled profile connection in a frame. This robust, L-shaped steel plate is fitted to the Line 8 grooves of profiles from the outside. The Joining Plate Set can be used as an additional means of compensating for displacement forces at connection points on transport trolleys, racks and machine bases.
item Joining Plates reinforce profile frames and enhance the rigidity of frame constructions. Thanks to their economical use of materials, they are ideal for lightweight construction and retrofitting to pre-existing systems. Joining Plates are attached from the outside to reinforce existing connections, do not require any additional machining and are screwed to Line 8 grooves. Countersunk holes result in a flat surface, with no risk of injury from protruding screw heads. Note: item Joining Plate Sets are not intended as a substitute for screw-attached fastening sets.
