| Friction Joint 8, Double Swivel Joint 80 | CADPDFRFQ |
Preview

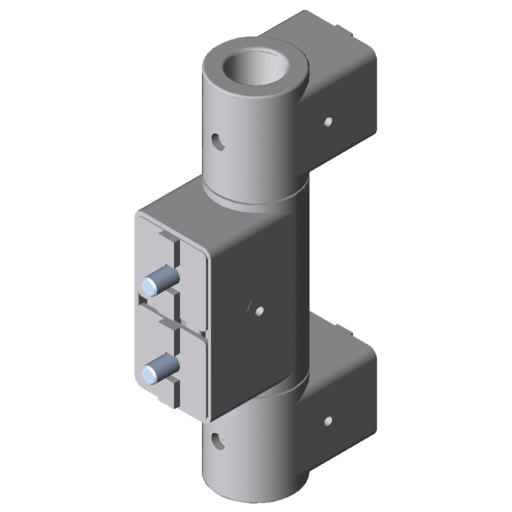

Friction Joint 8, Double Swivel Joint 80
3 Friction Joints 4 mounting plates, Al, natural 4 Button-Head Screws M8x22, St, bright zinc-plated Notes on Use and Installation
Scope of Delivery
3 Friction Joints 4 mounting plates, Al, natural 4 Button-Head Screws M8x22, St, bright zinc-plated Notes on Use and Installation
Properties
| Line | Work Bench System |
|---|---|
| ESD-safe | Yes |
| Weight | m = 1005 g |
| Delivery unit | 1 pce. |
| Torque | M = 200 Nm |
Looking for that little something extra? Friction Joints 8 80 are the answer, as they can be assembled and configured to build strong, custom-made swivelling structures. The joints can be used to span double the support width or carry double the load of Friction Joint 40. The dual screw connection provides additional strength. The brake in the Friction Joint allows precise adjustment, ensuring pivot arms can be easily positioned without being difficult to move. The preassembled sets are supplied with screws and are ready to connect. Screws can be connected to the end face of a Profile 8 80 via the core bore or to a groove. Press-fit anti-torsion features grip into the profile grooves to ensure play-free connections.
The maximum torque load for an End Swivel Joint 80 is 45 Nm, while Double Swivel Joint 80 can withstand moments of up to 200 Nm.
The connection can be made with either a horizontal or vertical profile groove. It can also be connected to the end face of a profile. All the joints can be rotated 360° and allow the adjustment of frictional moment.
