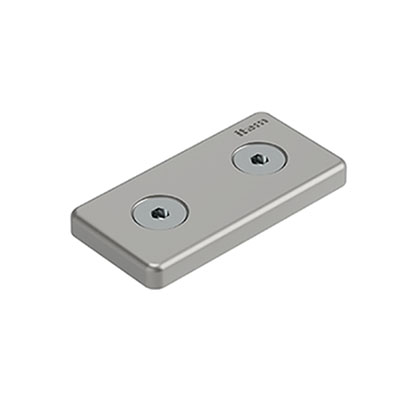

Flat Bracket Set 8 2V 80×40

1 flat bracket 80×40, die-cast Al, natural 2 inserts, die-cast zinc, bright zinc-plated 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M8x18, St, bright zinc-plated

Art. no: 0.0.719.50 Categories: , Tag:
Set CAD-format
Flat Bracket Set 8 2V 80×40CADPDFRFQ

Preview

Scope of Delivery

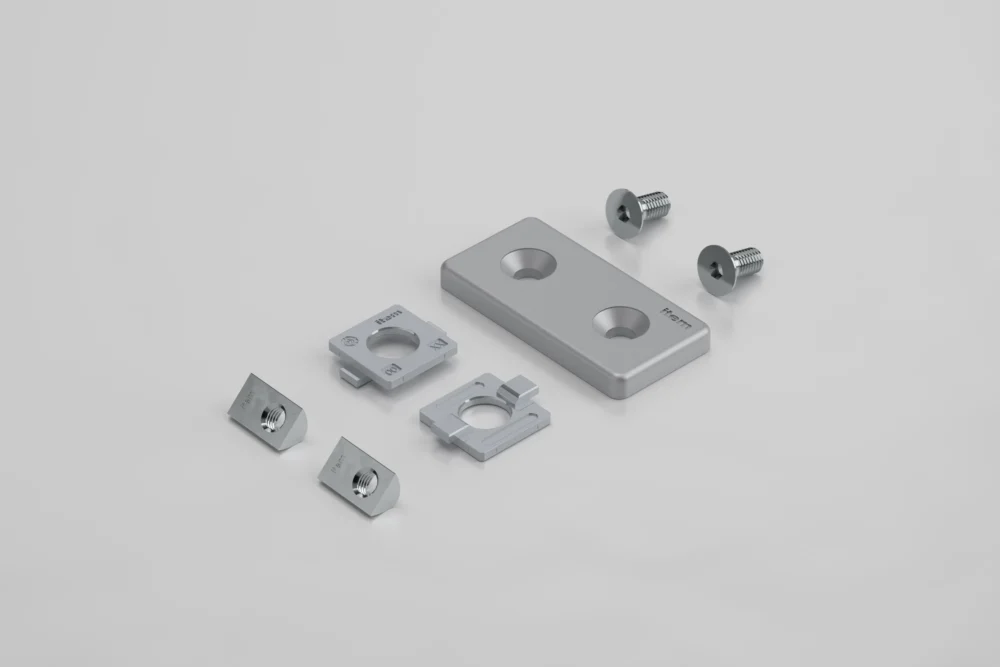

1 flat bracket 80x40, die-cast Al, natural 2 inserts, die-cast zinc, bright zinc-plated 2 T-Slot Nuts 8 St M8, St, bright zinc-plated 2 Countersunk Screws DIN 7991 M8x18, St, bright zinc-plated

Properties

TorqueM = 25 Nm
line 8line 8
ESD-safeYes
Weightm = 110 g
Delivery unit1 set

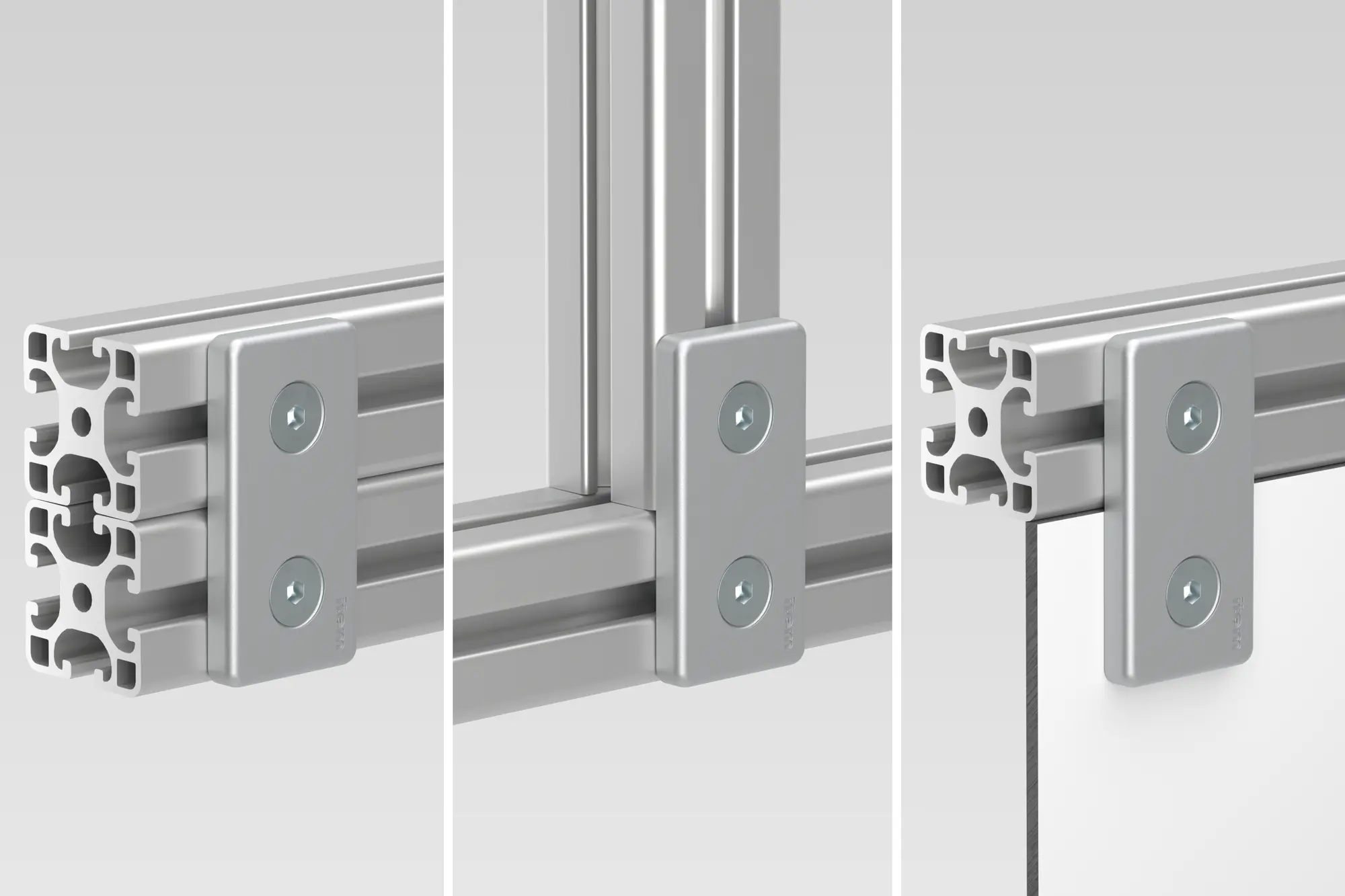

Flat Bracket Set 8 2V 80x40 has two inserts with anti-torsion features for the torsion-resistant connection of parallel profiles via two Line 8 grooves. The bracket can also be used to fasten panel elements to profiles. The inserts can be fitted in 90° increments and reversed. This ensures the anti-torsion features can be positioned to match the alignment of the profile groove. Reversing the insert creates a flat surface.
To customise the anti-torsion features, the orientation of the inserts on the back of the bracket is adjusted with the help of a screwdriver.
