Filter Fan Unit 1200×600

1 FFU Gehäuse 1200×600 1 FFU Hauptfilter H14 – 1200×600 1 FFU Vorfilter M5 – 500×500 Anwendungs- und Montagehinweise

Art. no: 0.0.716.42 Category: Tag:
Set CAD-format
Filter Fan Unit 1200×600 CADPDFRFQ

Preview

Scope of Delivery

1 FFU Housing 1200x600 1 FFU HEPA Filter H14 - 1200x600 1 FFU Pre-Filter M5 - 500x500 Notes on Use and Installation

Properties

ESD-safeNo
Weightm = 32.32 kg
Delivery unit1 set
Status on deliveryPartially preassembled
MaterialAl, untreated
cleanroom suitabilityYes

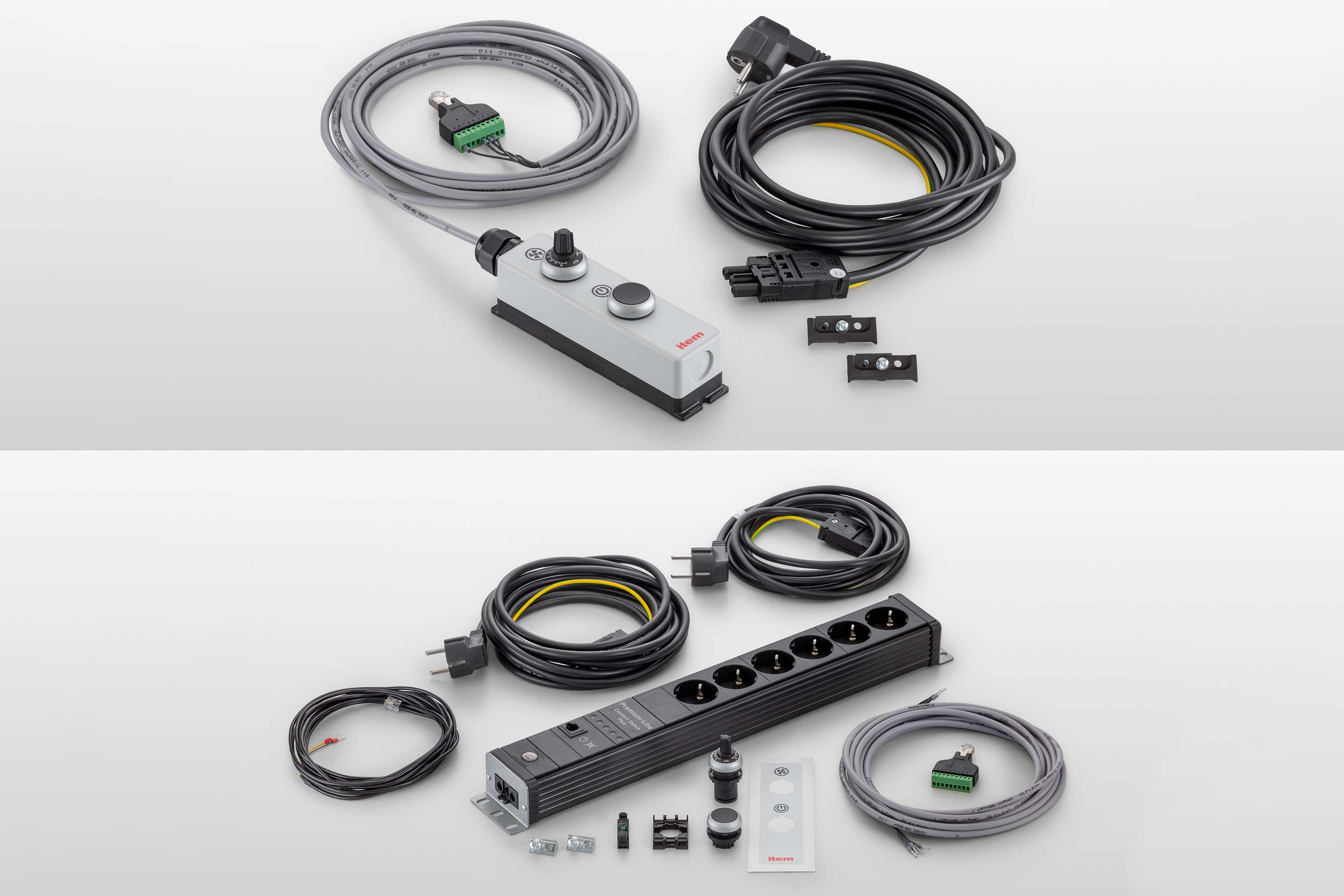

FFU StarterKit 230V (0.0.715.83) and FlowBox InstallationKit 230V (0.0.715.84) make it easy to get Filter Fan Unit 1200x600 up and running. The StarterKit contains a 230 V connection cable and operating elements for switching the FFU off and on and regulating the airflow. The InstallationKit also contains a Multi-Socket Power Strip that can be switched on and off.
The Filter Fan Unit consists of a Housing, Pre-Filter and HEPA Filter. All these components are also available separately as spare parts.
The Filter Fan Unit 1200x600 (0.0.716.42) is placed onto the Fixing System, Angle Strip X 8 that is fastened to the ceiling construction and is not screwed into place. The half-round polyurethane gasket of the HEPA Filter (0.0.712.76) creates an airtight seal so that only filtered air can get into the working area. To protect its high filter performance, the HEPA Filter must be handled with extra care during transport and installation.
Filter Fan Unit (0.0.716.42) slots neatly into a ceiling structure. The replaceable HEPA Filter H14 - 1200x600 (0.0.712.76) has two gaskets.
