| Set CAD-format | ||
|---|---|---|
| Fastening Set 8 80×80-90° – XMS | CADPDFRFQ |
Preview

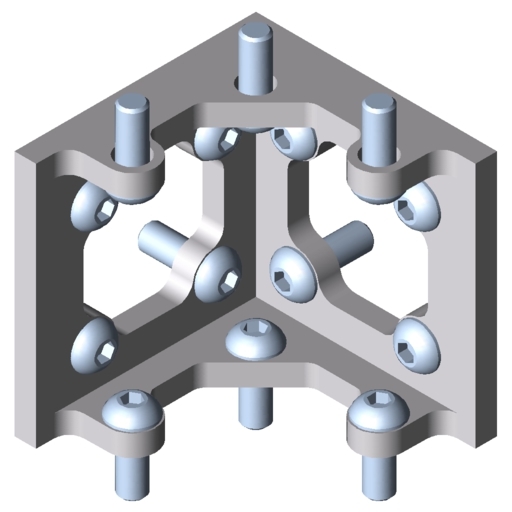

Fastening Set 8 80×80-90° – XMS
Fastener, AI 14 Button-Head Screws ISO 7380-M8x22, St, bright zinc-plated 3 Hexagon Socket Head Cap Screws DIN 912 M8x20, St, bright zinc-plated 3 set nuts M8, St
Scope of Delivery
Fastener, AI 14 Button-Head Screws ISO 7380-M8x22, St, bright zinc-plated 3 Hexagon Socket Head Cap Screws DIN 912 M8x20, St, bright zinc-plated 3 set nuts M8, St
Properties
| ESD-safe | Yes |
|---|---|
| Weight | m = 388 g |
| Delivery unit | 1 set |

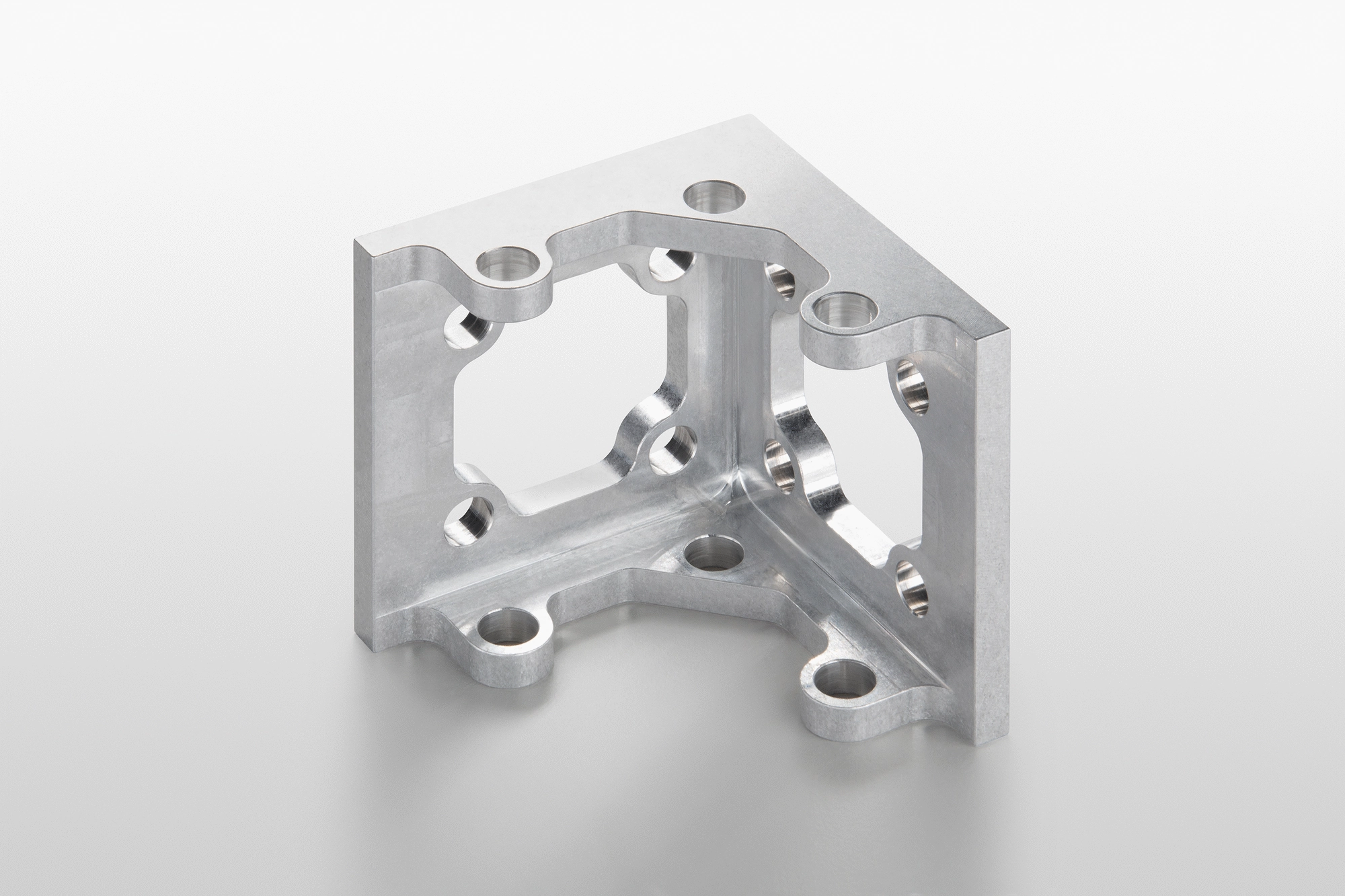

The Fastening Set creates a stable intersection point between vertical and horizontal profiles while also allowing cables to pass through it.
Innovative Fastening Sets act as intersection point connectors between vertical and horizontal Profiles X 8 M45 - XMS. Cables and wires can easily be routed inside the frame structure, passing through the internal cavity of these fasteners. The cavities of the fasteners are sealed to the outside by clip-in Cover Profiles.
