Double Door Stop Set 8

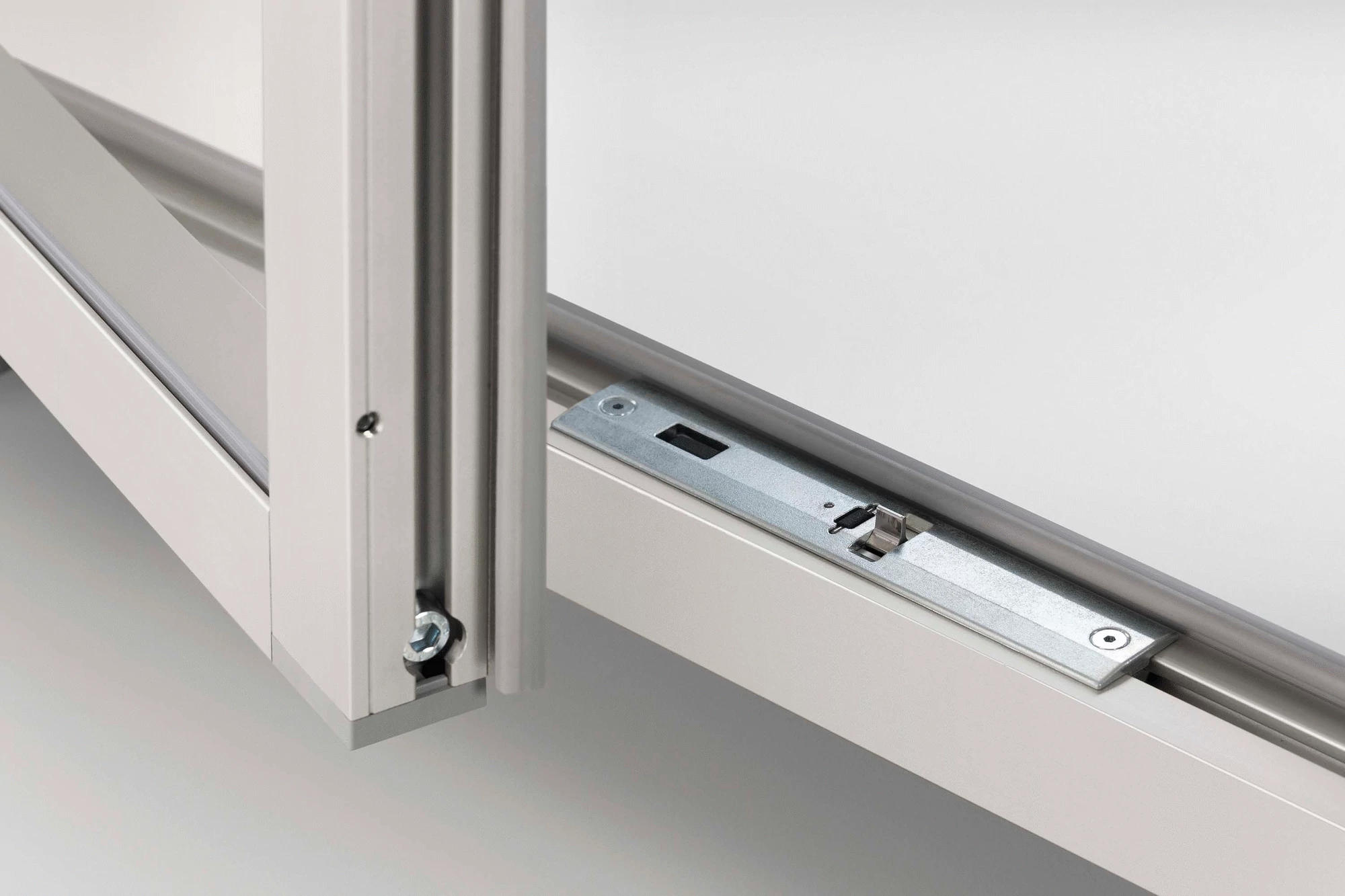

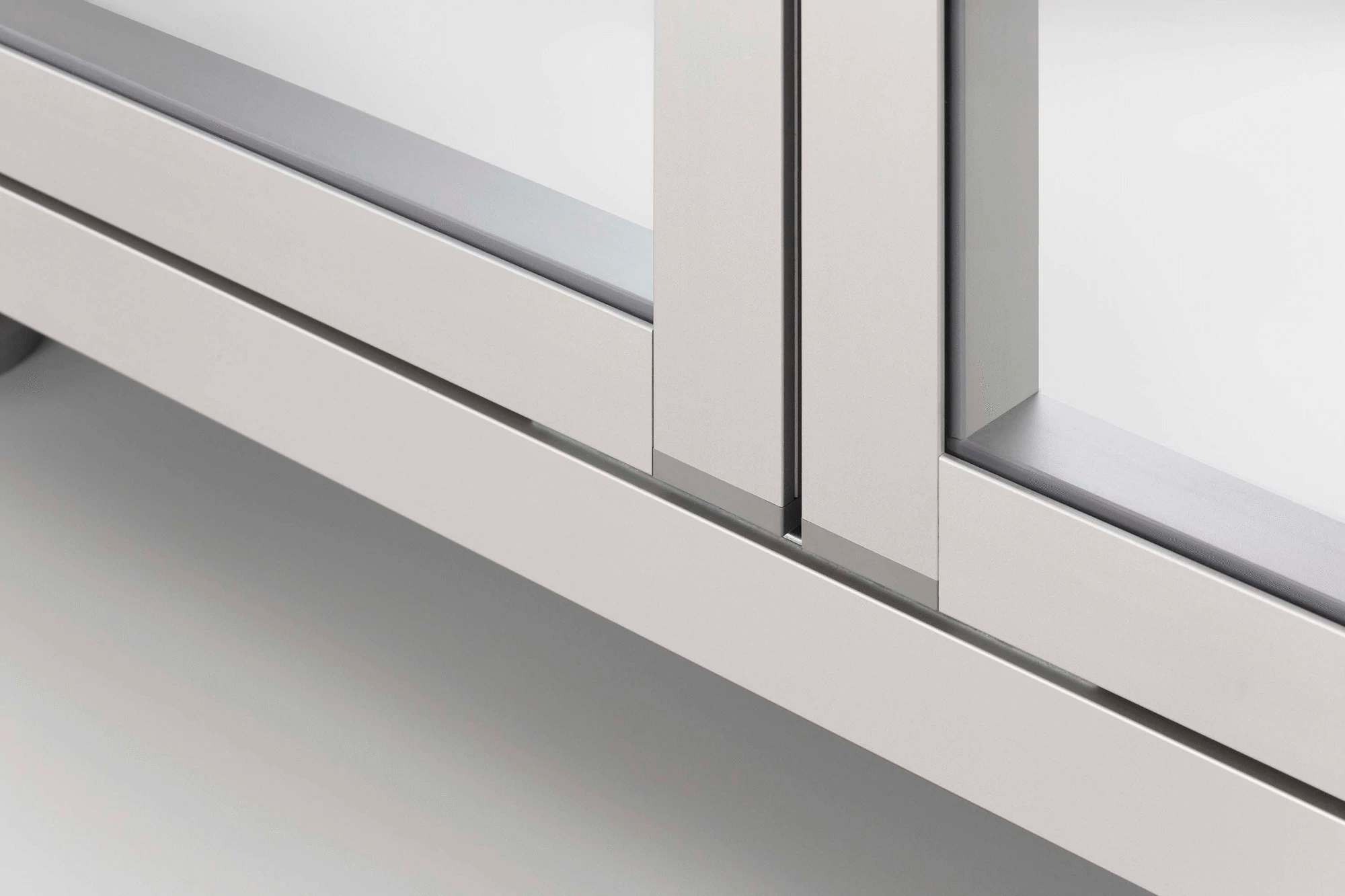

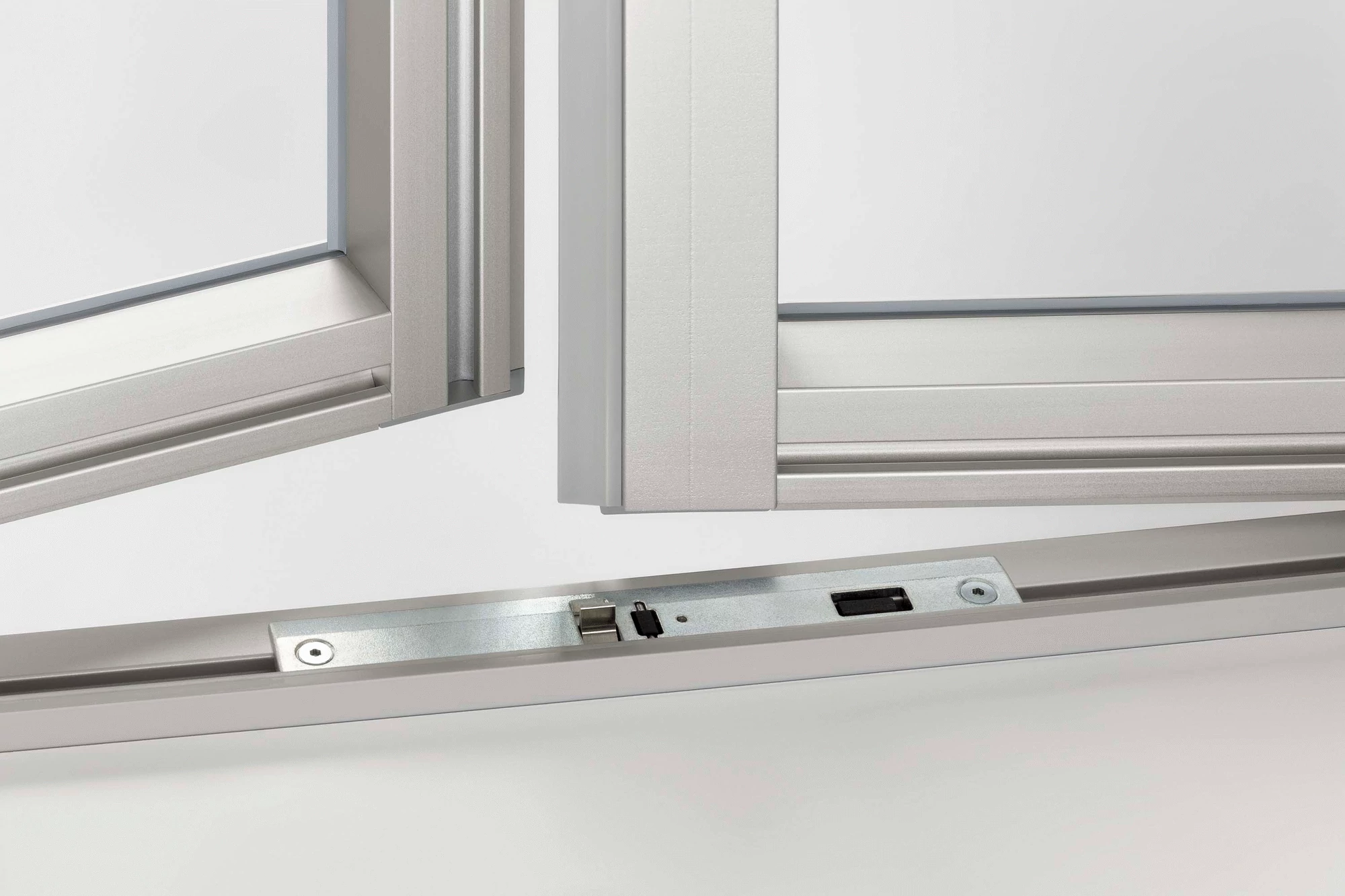

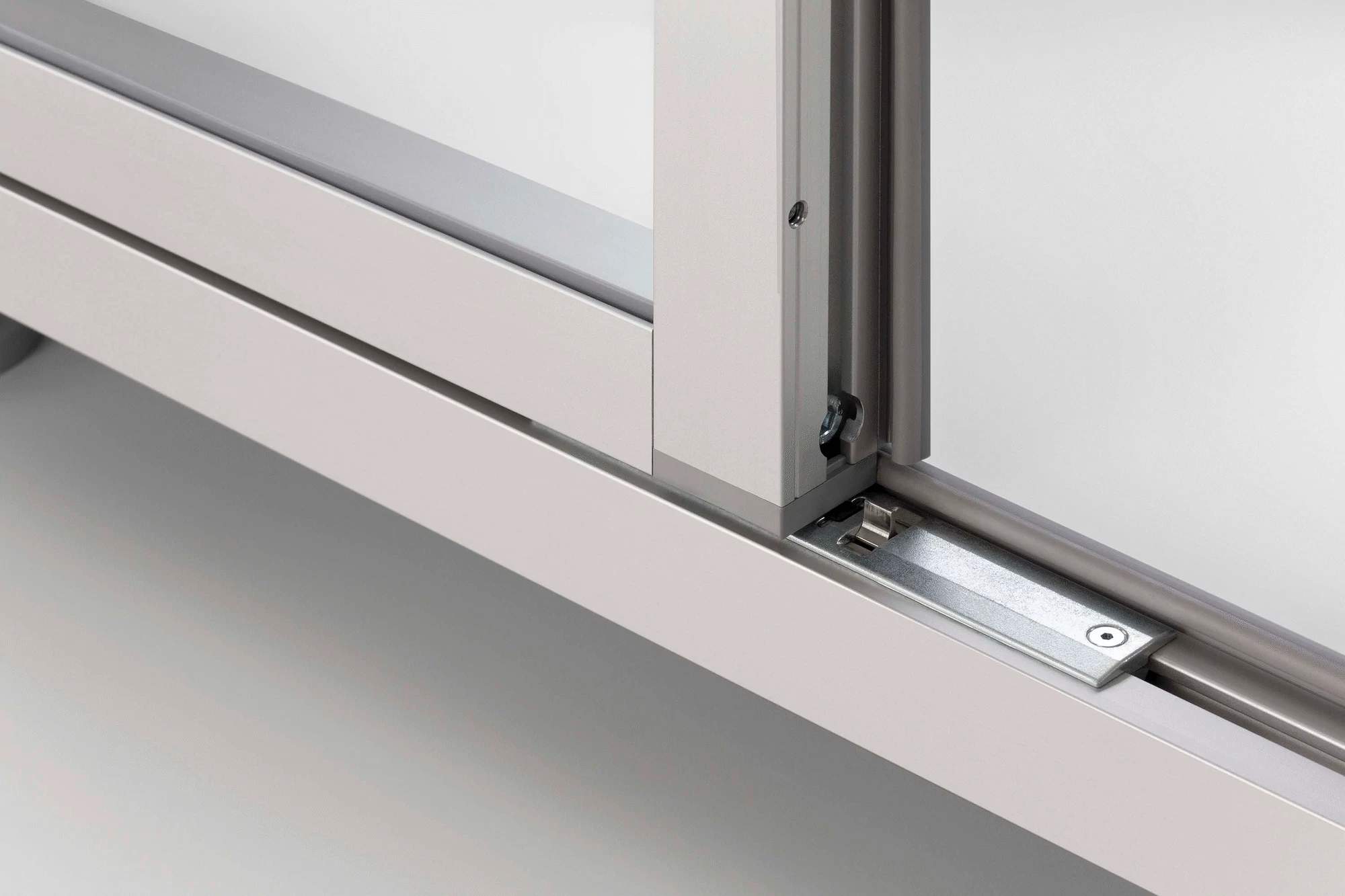

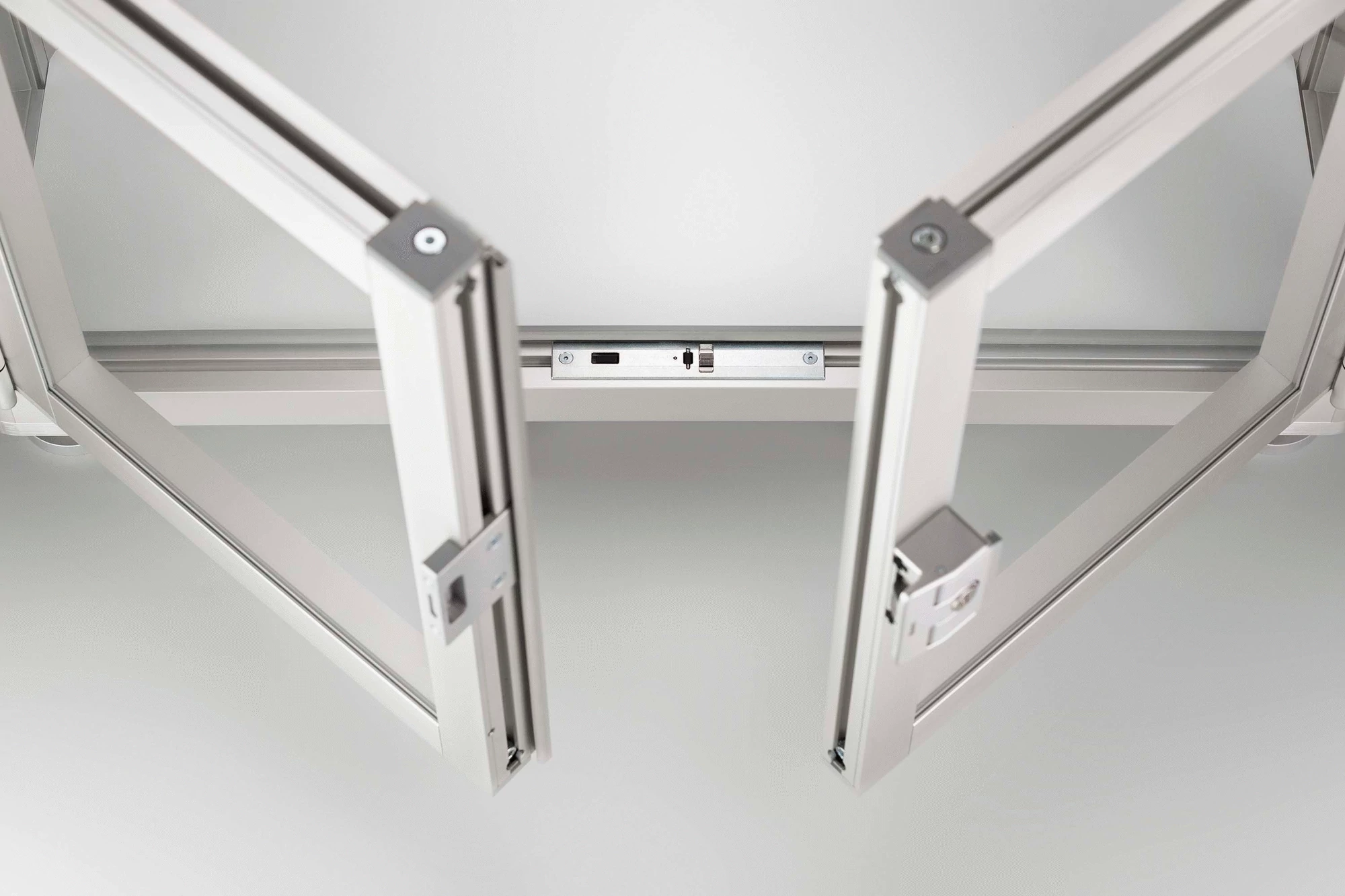

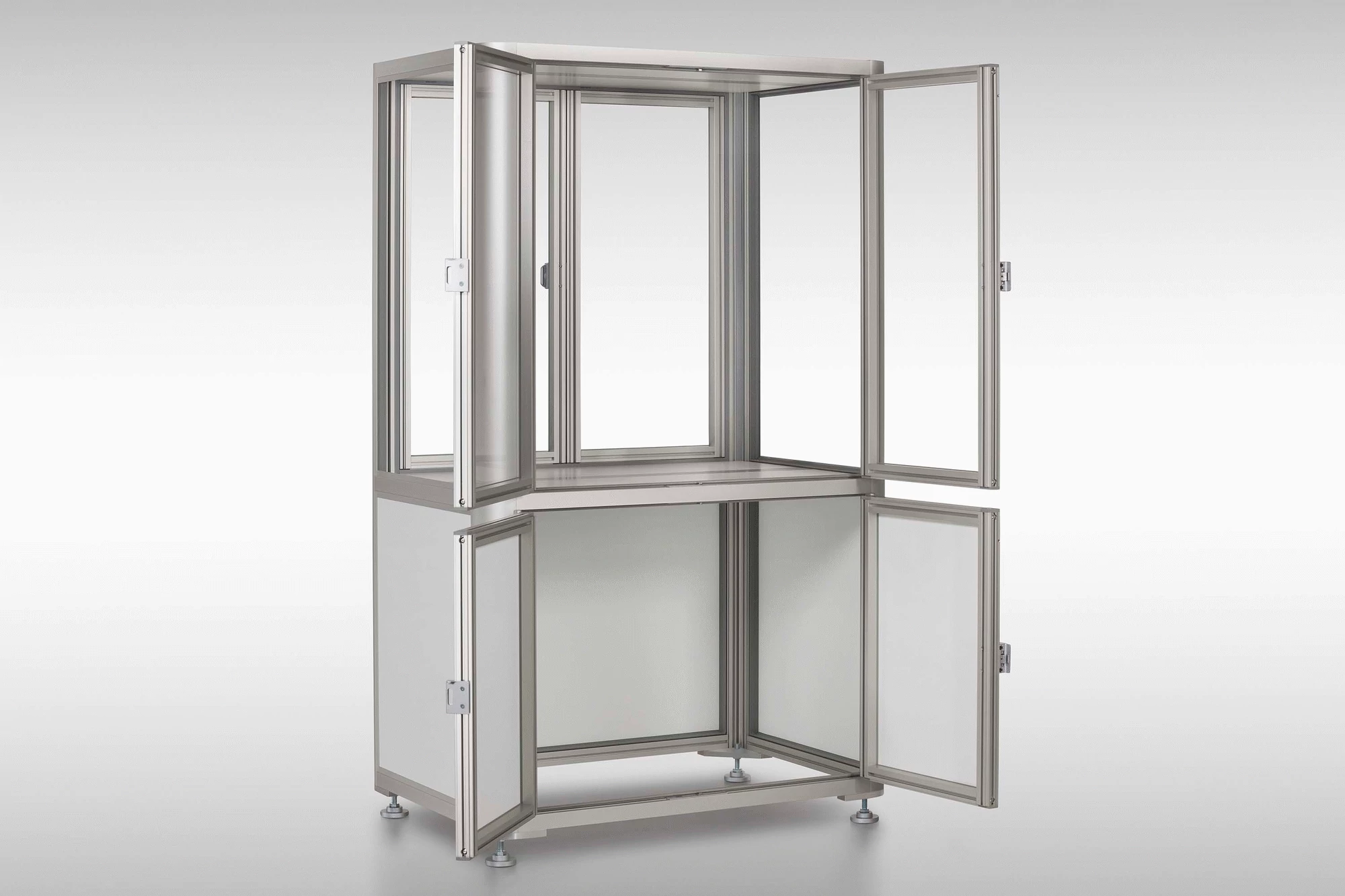

This is how to secure two doors in one easy step! Thanks to Double Door Stop Set 8, generous double doors can now be built without having to incorporate inconvenient centre posts. The innovative mechanism ensures that the passive door is automatically held in place when the active door is closed. One lock is all that is needed to hold both doors securely in place. Here are the benefits of this innovation from item: Fast to operate: Both doors are secured together with just a single lock. Users don’t have to open or close an additional latch or catch. Totally secure: Double Door Stop Set 8 automatically locks the passive door when the double doors are closed so that they can’t be accidentally pulled open. No misuse: Not shutting the doors properly does not damage the mechanism. Spotlessly clean: As is standard for Line XMS, double doors can also be sealed dust-tight using Door Seal Adapter Profile 8 - XMS. Double Door Stop Set 8 is the simplest way to use safe double doors that provide access for feeding large workpieces unobstructed into a machine. Whether a maintenance hatch or a safety door in a machine frame, it satisfies the most stringent requirements in terms of safety, cleanliness and rapid access. N.B.: Door Lock X 8 Zn (0.0.652.66) is ideal as a mechanical locking device. All fastening screws are safely concealed when the door is closed. Safety Switch 8, 24V DC (0.0.658.28) provides even better safety. It uses contactless switching and is therefore free from mechanical wear, thanks to tamper-proof RFID technology. Double Door Stop Set 8 is compatible with Line 8, meaning that components from the MB Building Kit System can also be used to build a double door. To prevent overtravel on the passive door, its closing action must be contained using Door Stop Seal 8 40 (0.0.617.31) if working with the MB system or Door Lip Seal 8 - XMS (0.0.649.89), Door Lip Seal T1 (0.0.649.88) or Door Lip Seal T2 (0.0.649.87) if working with the XMS system.

Baureihe 8 Der Stulptürarretierungssatz 8 ist kompatibel zu Profilen der Baureihe 8. Die Türen können mit Profilen 8 40x40 (E, leicht, normal) gebaut werden. Bei der Montage der Türrahmen muss eine Stufenbohrung D15x12,3 verwendet werden. Sie können hierzu den Stufenbohrer, Klemmprofil 8 40x40 (0.0.265.21) verwenden. Hinweis: Die durchgängigen, senkrechten Profile der Türen müssen mit einer stirnseitigen Abdeckkappe versehen werden, damit die Mechanik des Stulptürarretierungssatzes auslösen kann. Um ein Überschwingen des passiven Türflügels zu verhindern, muss dessen Schließbewegung durch einen Türdichtanschlag 8 40 (0.0.617.31) begrenzt werden.
