Double-Bearing Unit 8 D25 e
2 Bolts 8 D25 e 2 Rollers D25 8 Button-Head Screws ISO 7380-M8x16, St, bright zinc-pl. 8 washers ISO 7089 – 8 – 200 HV, bright zinc-plated 16 dowels ISO 8735-D-6m6x32 St, hardened Notes on Use and Installation
Scope of Delivery
2 Bolts 8 D25 e 2 Rollers D25 8 Button-Head Screws ISO 7380-M8x16, St, bright zinc-pl. 8 washers ISO 7089 - 8 - 200 HV, bright zinc-plated 16 dowels ISO 8735-D-6m6x32 St, hardened Notes on Use and Installation
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 5.2 kg |
| Delivery unit | 1 pce. |
| Material | Al, anodized, natural |
| Torque, locking screw | Mlocking screw = 10 Nm |
| Torque, locknut | Mlocknut = 100 Nm |
| Load Factor, dynamic | C = 50000 N |
| Load Factor, static | C0 = 30600 N |

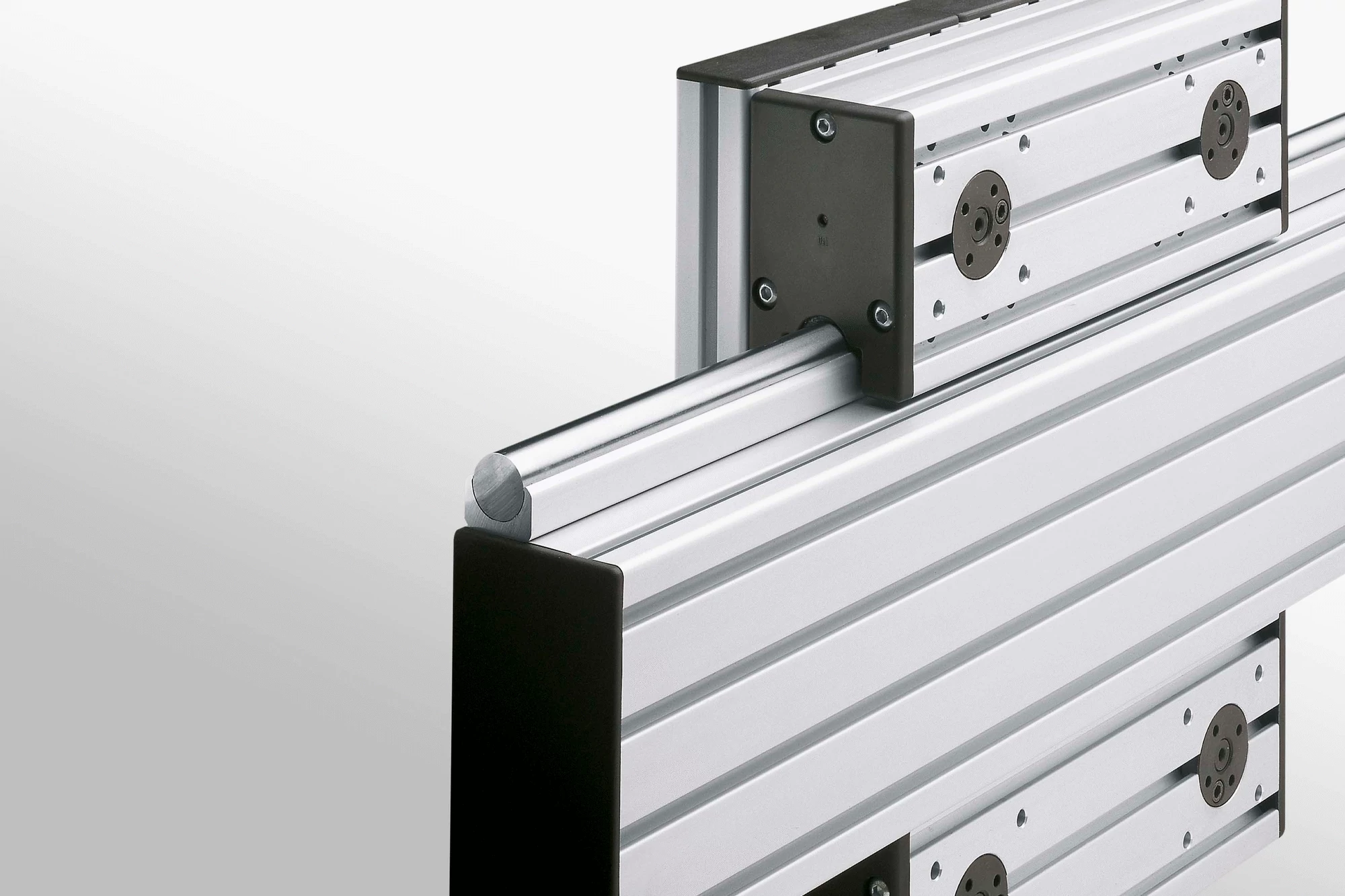

Bearing Units are used in conjunction with a carriage plate for constructing the sliding carriages. Bearing Units e (eccentric) and c (centric) differ in the geometry of the bolts. The eccentric bolts can be adjusted subsequently so as to ensure that the guide unit is free from play. Bearing Units should therefore always be used in pairs in both centric and eccentric versions. The Bearing Units must always be equipped with End Cap and Lubricating Systems in order to prevent premature wear.
The Bearing Units are provided with bores which can be used as fastening and fixing bores when making connections. a = dowel DIN 7979-6x32
If the Bearing Units are to be mounted offset 90°, the fastening and fixing bores must be located in accordance with the specified dimensions or in the dark-grey areas.

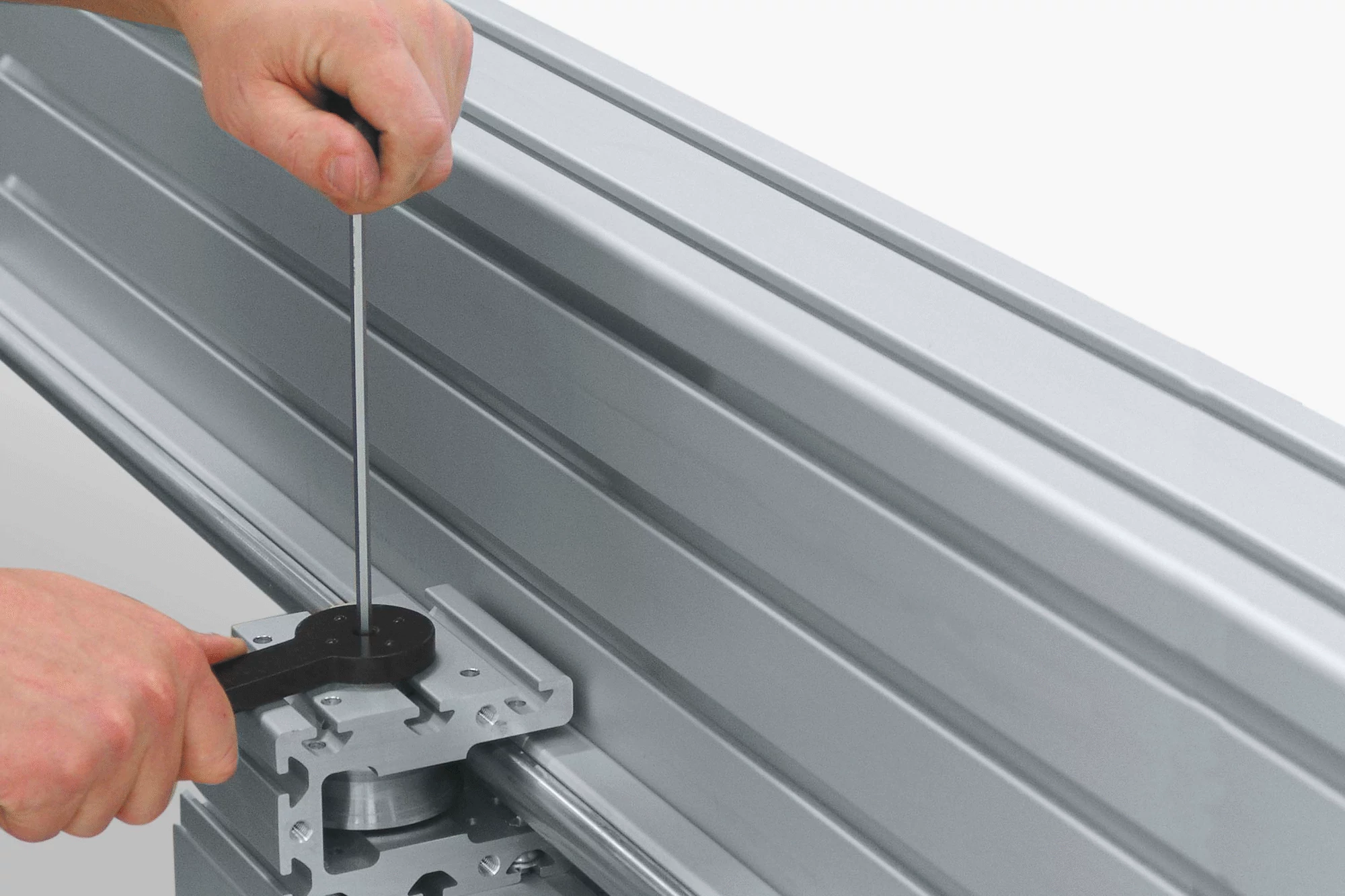

The Bearing Units include comprehensive mounting information. Please follow the mounting sequence set out there. The appropriate Pin Spanners are available (Comprehensive Catalogue, Section 9 Auxiliary Elements) for fastening Bolts 8 D25 c and 8 D25 e with locking rings.
