| Door Lock X 8 Zn | CADPDFRFQ |
Preview
Door Lock X 8 Zn
Cylinder Lock, (all) keys identical Lock housing, die-cast zinc, white aluminium Lock case X 8, die-cast zinc, white aluminium 2 Hexagon Socket Head Cap Screws DIN 912-M6x35, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M5x12, St, bright zinc-plated 2 T-Slot Nuts 8 St M5, St, bright zinc-plated 2 square nut inserts M6, St, bright zinc-plated
Scope of Delivery
Cylinder Lock, (all) keys identical Lock housing, die-cast zinc, white aluminium Lock case X 8, die-cast zinc, white aluminium 2 Hexagon Socket Head Cap Screws DIN 912-M6x35, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M5x12, St, bright zinc-plated 2 T-Slot Nuts 8 St M5, St, bright zinc-plated 2 square nut inserts M6, St, bright zinc-plated
Properties
| Torque | M = 10 Nm |
|---|---|
| Line | line X |
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 540 g |
| Delivery unit | 1 set |

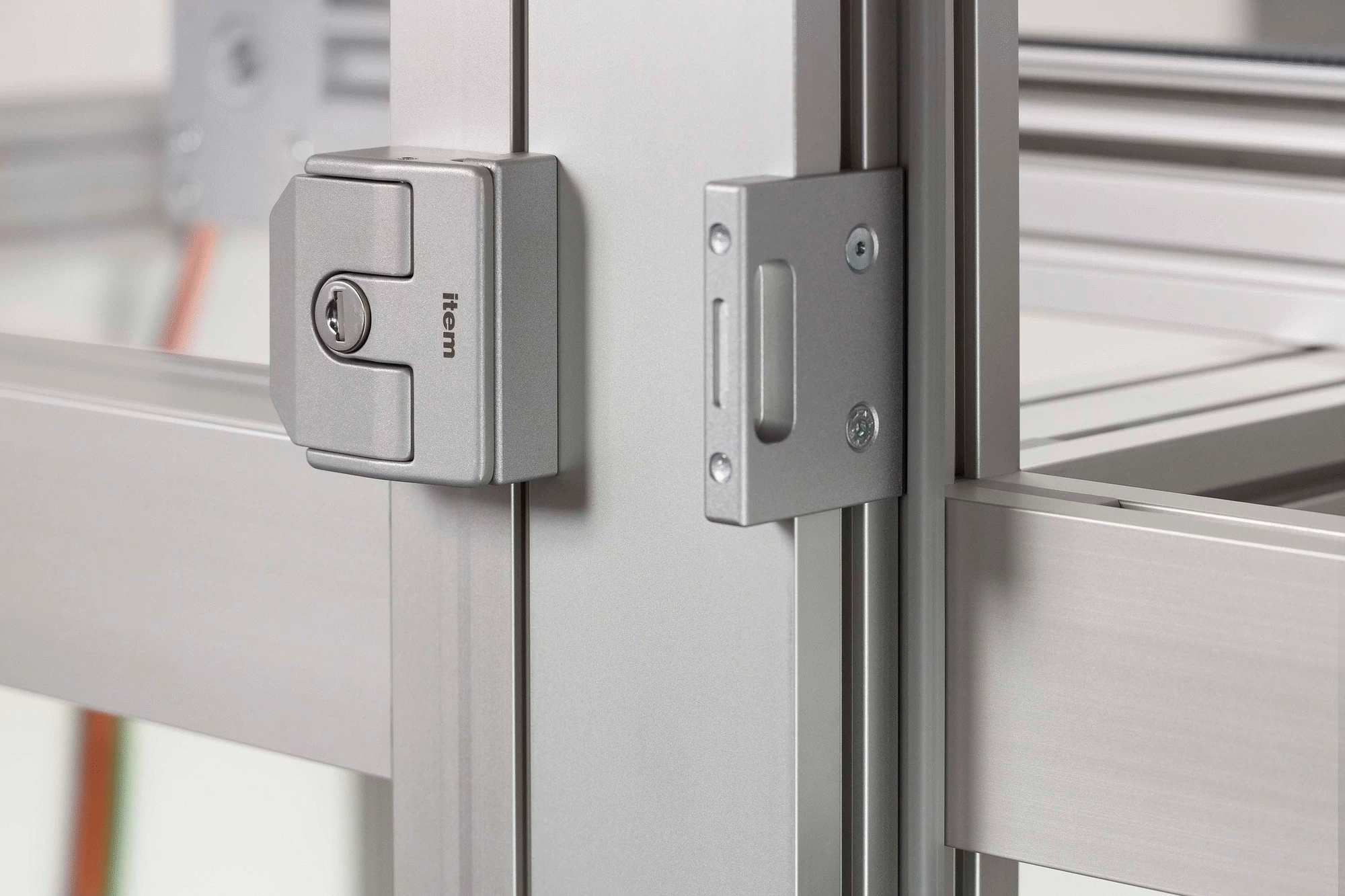

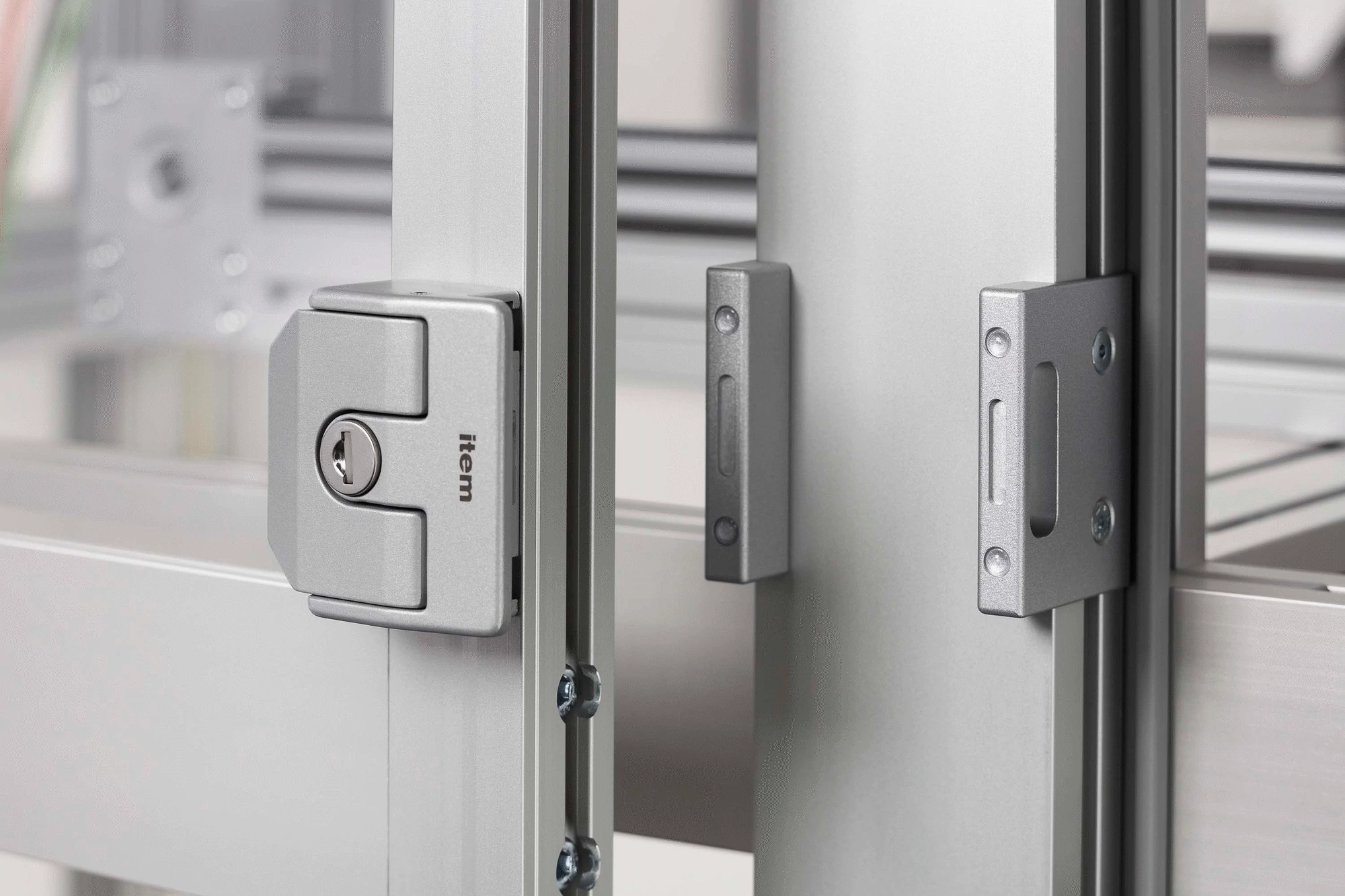

Door Lock X 8 Zn uses the profile groove in the door gap as a concealed fastening option. It can be installed at the ideal ergonomic height. All fastening screws are safely concealed when the door is closed. Note: Remember to allow for the thickness of the fastening plate when sizing the door gap.
