Document Holder 8 A3

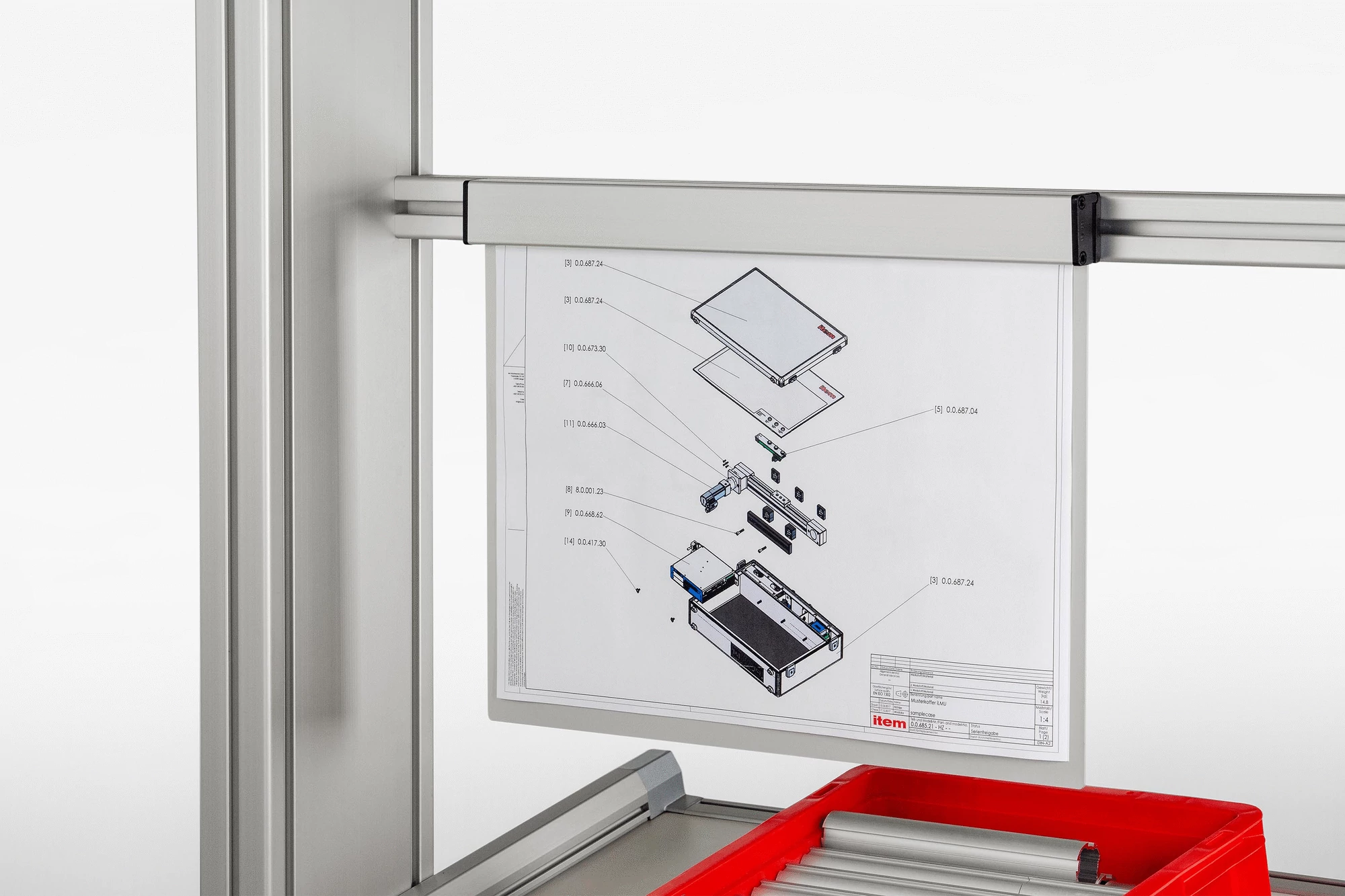

The Document Holder system is used for constructing display and information panels of any size in the workplace or the training area. The panels can be attached directly to a frame construction made of aluminium profiles, e.g. to the work bench in the production area. The Document Holder can also be used to construct fixed or moveable panels on appropriate frame structures. The system consists of two aluminium profiles that are interconnected using an integrated spring-loaded hinge. The Document Holder Support Profile forms the fixed frame which also secures the rear panel. This frame is fixed onto basic constructions made up of Line 8 Profiles using Clip 8 St. The spring-loaded Lid Profile firmly clamps documents and drawings and can securely hold an optional acrylic glass panel to protect documents. The simplest form of the Document Holder is the clipboard. When deciding on the profile dimensions an additional clamping margin should be taken into account. Another design option consists of an all-round frame construction which, for example, enables documents to be attached securely in industrial applications. A further application for the Document Holder system is to construct moveable or fixed panels which allow drawings of up to A0 size and above to be held safely. The clamping force of the Lid Profile can be adapted to the specific requirements by changing the number of clamping springs. At least two springs are required for each Lid Profile. The end faces of the Support Profiles and Lid Profiles are fitted with the Cap Sets. These serve as a lateral guide for the lid when opening.
