DC-DC Converter 48V/24V

Art. no: 0.0.732.56 Categories: New Products MB Building Kit System, Converter Tag: Static

Set CAD-format
DC-DC Converter 48V/24V		CADPDFRFQ

Preview

Properties

Output voltage	24 V DC + 48 V DC
Output current	1A/24 V DC + 4A/48 V DC
Input voltage	48 V DC
Input current	4 A
ESD-safe	No
Weight	m = 812 g
Ambient temperature (during operation)	+10 °C … +40 °C
Delivery unit	1 pce.
cleanroom suitability	No
Presentation	2026-03-24T00:00:00

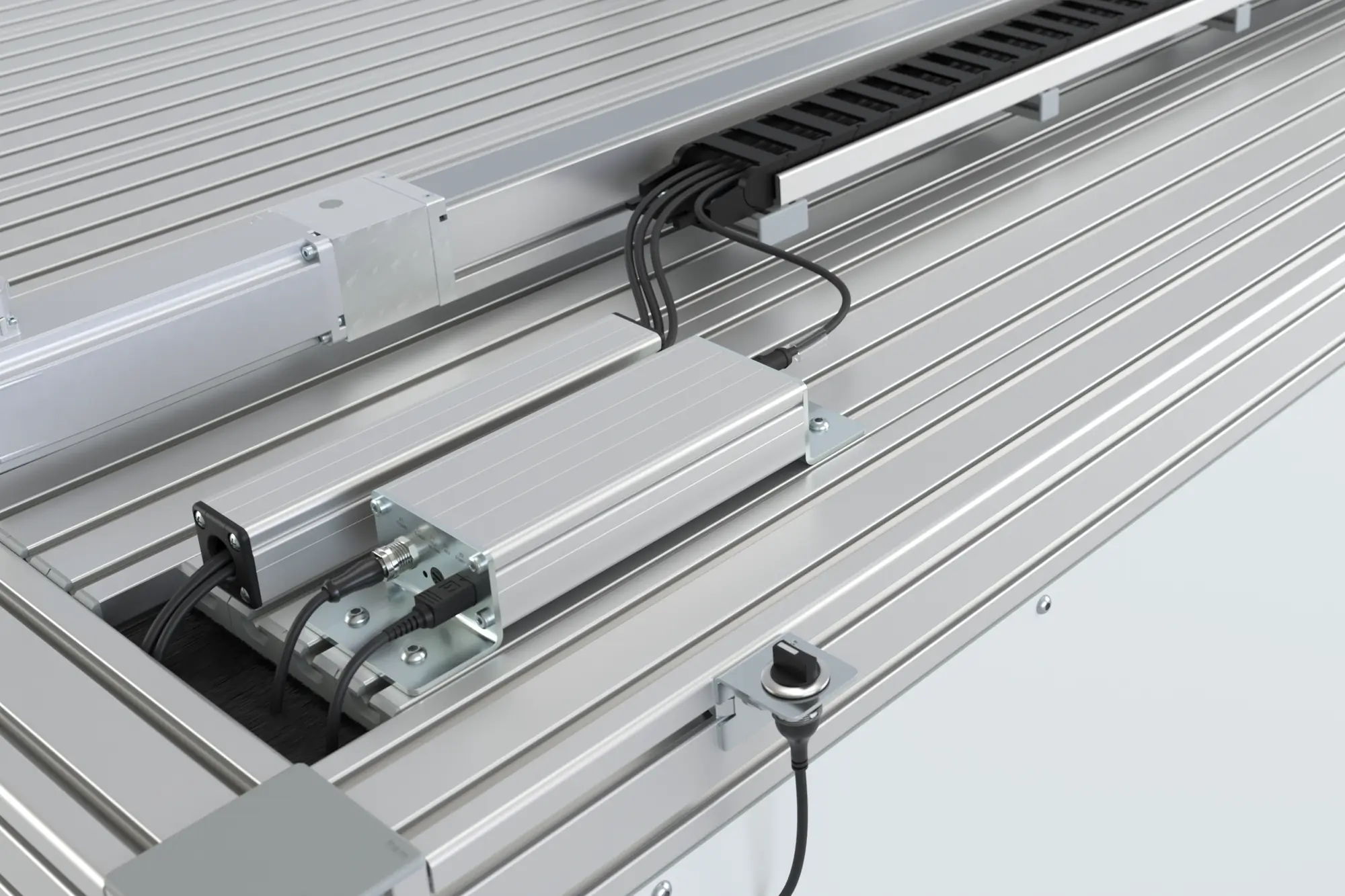

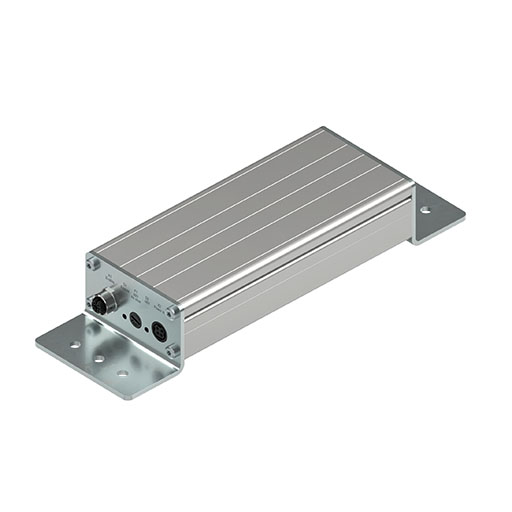

DC-DC Converter 48/24V from item transforms an input voltage of 48 V into two output voltages of 24 V and 48 V at two M12 connections. To maximise operational safety, an enable switch can be added for turning the device on and off. The voltage converter is fully encased. This eliminates the need for a separate enclosure. The casing can be fastened to Line 8 profiles.

When using DC-DC Converter 48/24V, you only need a single Power Supply 48V 4.6A with connecting cable (0.0.734.62) in order to supply power to both the 24 V controller and 48 V stepper motor of Integrated Motor ST NEMA24 -310-48-T1 (0.0.703.45).
