| Corner-Fastening Set Frame 8 60×40 180° | CADPDFRFQ |

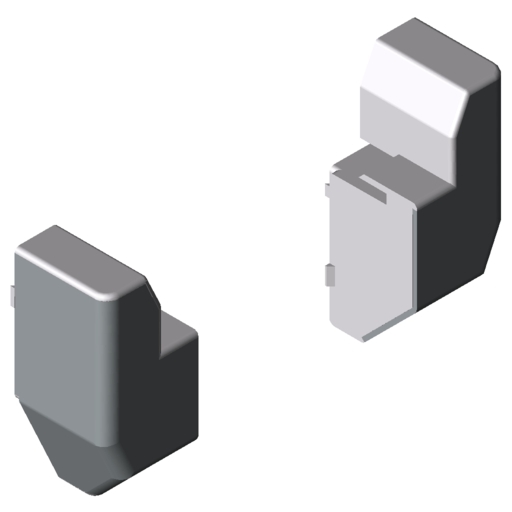

Preview
Corner-Fastening Set Frame 8 60×40 180°
2 Corner Fasteners die-cast Al, RAL 9006 white aluminium 8 Hexagon Socket Head Cap Screws DIN 7984-M5x20, self-tapping, St, bright zinc-plated Cap, PA-GF, grey
Scope of Delivery
2 Corner Fasteners die-cast Al, RAL 9006 white aluminium 8 Hexagon Socket Head Cap Screws DIN 7984-M5x20, self-tapping, St, bright zinc-plated 1 Cap, PA-GF, grey
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 266 g |
| Delivery unit | 1 set |

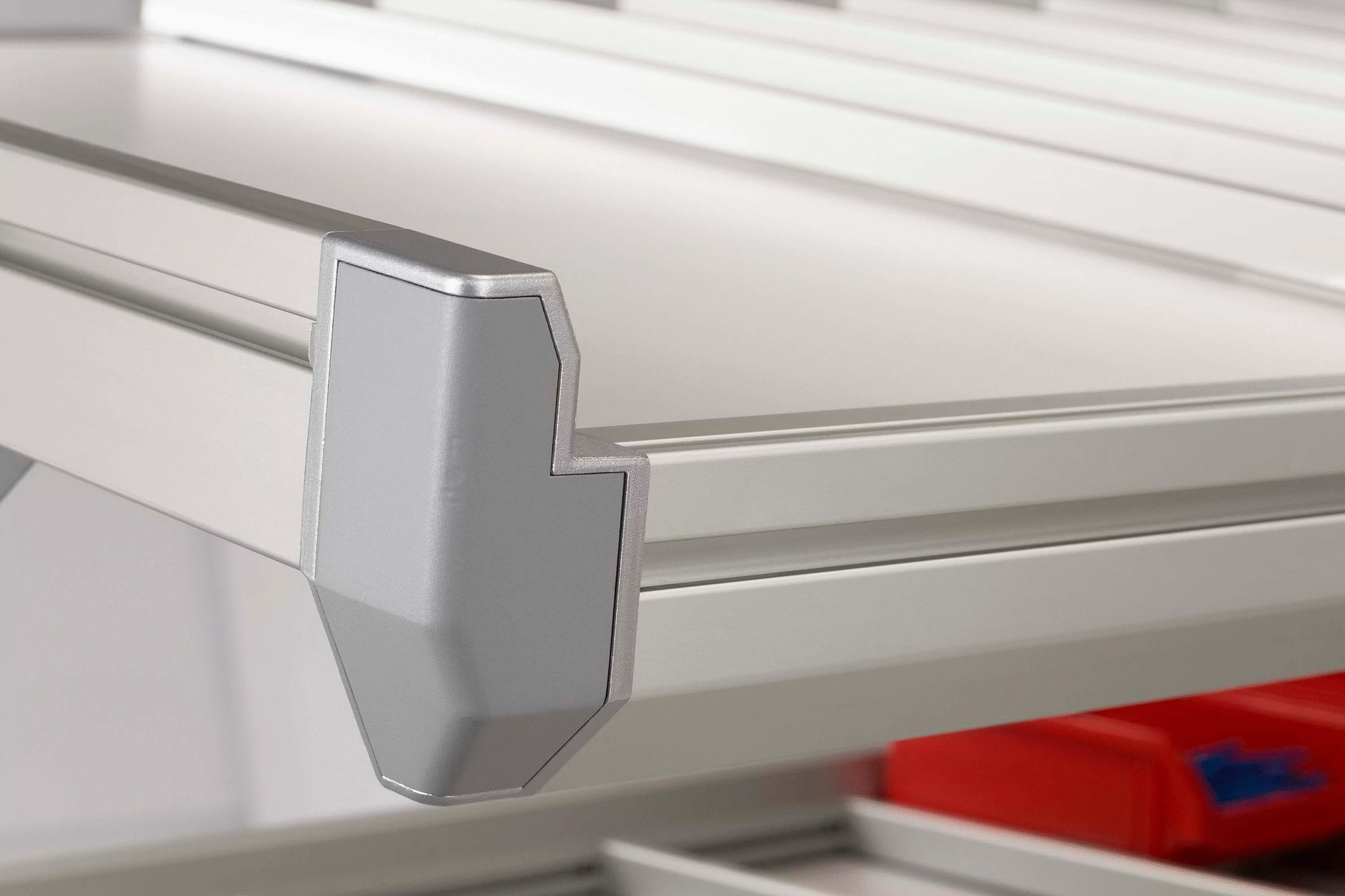

Frame Profiles are used as a basis for strong Trays and large picking/supply shelves. A range of designs can be created by combining profiles and fasteners. The edge can be dropped on one or two sides to make restocking operations easier and/or to create a defined lip at the removal side. Tray Stop Profile 8 50x10 (0.0.664.34) is used as a rebate for semi-open fronted boxes and Euro-format containers. The containers stick out over the profile so that parts can be seamlessly transferred to Grab Plate Profile 8 140x50 (0.0.664.17) or Grab Containers 8 105x130 (0.0.664.35). Thanks to their tall profile cross-section and the option of adding reinforcement under the tray surface, Frame Profiles 8 60x40 can accommodate large loads of up to 200 kg. When less space is needed, Frame Profiles 8 40x20 are ideal for creating smaller trays. Note: When ordering, please note the difference between Frame Profile 8 60x40 (edge at top) and Frame Profile 8 60x40 180° for implementing dropped edges. Either Corner-Fastening Set Frame 8 60x40 or Corner-Fastening Set Frame 8 60x40 180° should be selected depending on which design is required. item also supplies preassembled Trays in standard sizes and a range of designs.
