This product has extended CAD support, please contact Aluflex with measurement specifications and desired CAD format on the product and Aluflex will send you the desired CAD file.
Conveyor 40 Timing Belt – End Drive
Timing belt conveyor with an end drive, offering smooth operations. Widths of 40mm and 80mm available.
For CAD-files other than SolidWorks, please contact Aluflex.
| Cad SolidWorks | |||
| Artikelnummer | Lenght min/max | Width min/max | Download SolidWorks CAD |
| TB40E | 400 - 6000 m | 40, 80 mm |  |
| Conveyor Load Data | |||||

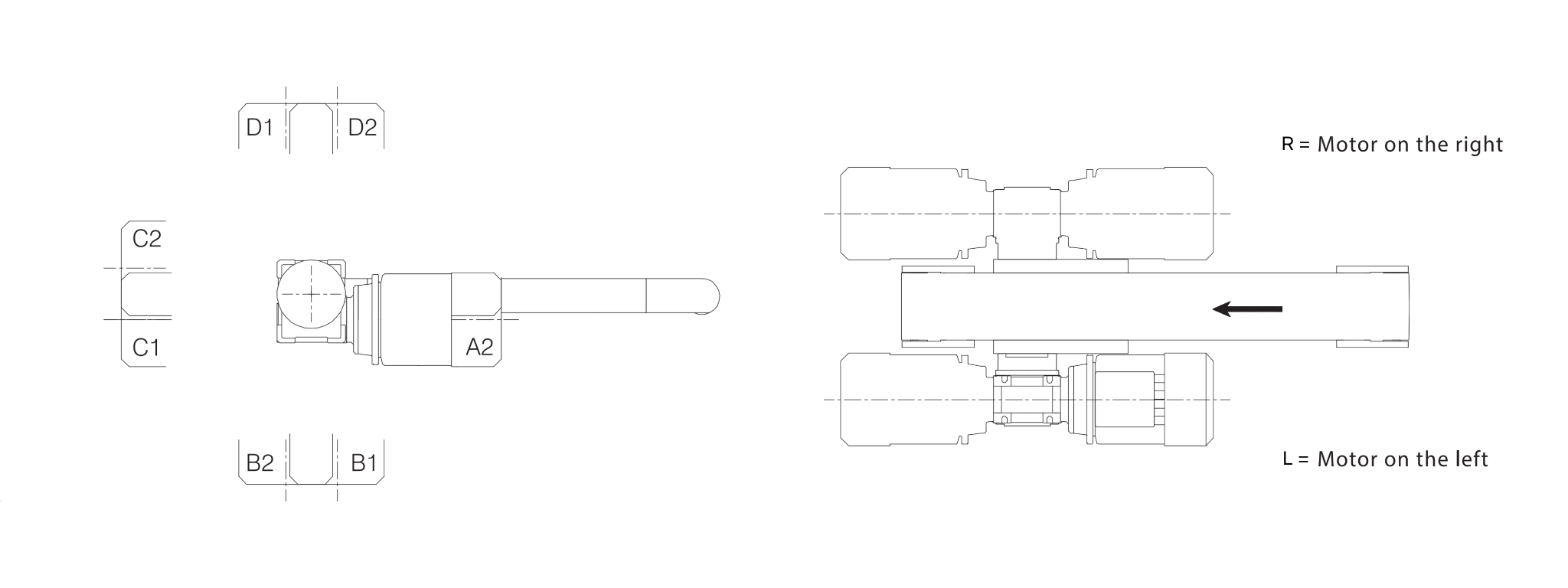

| Conveyor | Conveyor System | Motor Position | Belt Speed | Max Total Load (Non-accumulating) | Max Total Load (Accumulating) |
| TB40E-40 | Timing belt conveyor 40-40 | End drive | 2-37 m/min | 100 kg | 50 kg |
| TB40E-80 | Timing belt conveyor 40-80 | End drive | 2-37 m/min | 120 kg | 60 kg |
| General Technical Data | |
| Conveyor width (A) | 40, 80 mm |
| Belt width | 32, 72 mm |
| Lenght (L) | 400 - 6000 mm |
| Load | 0-100 kg |
| Speed | 0-37 m/min |
| Pulley Diameter | 51 mm |
| Belt Type | T5 Timing belt |
| Plate under belt | PE-UHMW Black |
| Motor Technical Data | |
| Motor | Asynchronous 230/400V, 50Hz |
| Cable | Delivered without motor cable |
| Protection rate motor | IP69K |
| Ambient temperature | - 20 to +40 ° C |
| Gear speed | 2,3/3,1/3,7/4,6/6,2/7,4/9,2/12/18,5/24/37 m/min |
